2N Base Ip Intercom with Camera Black 9156111CB
2NI 9156111CB
8595159509884

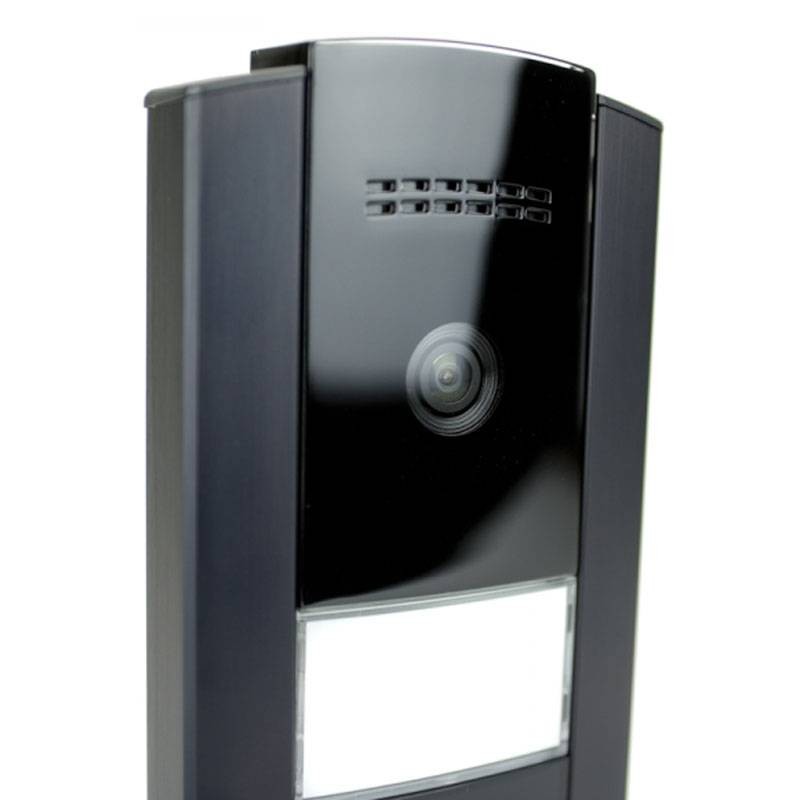

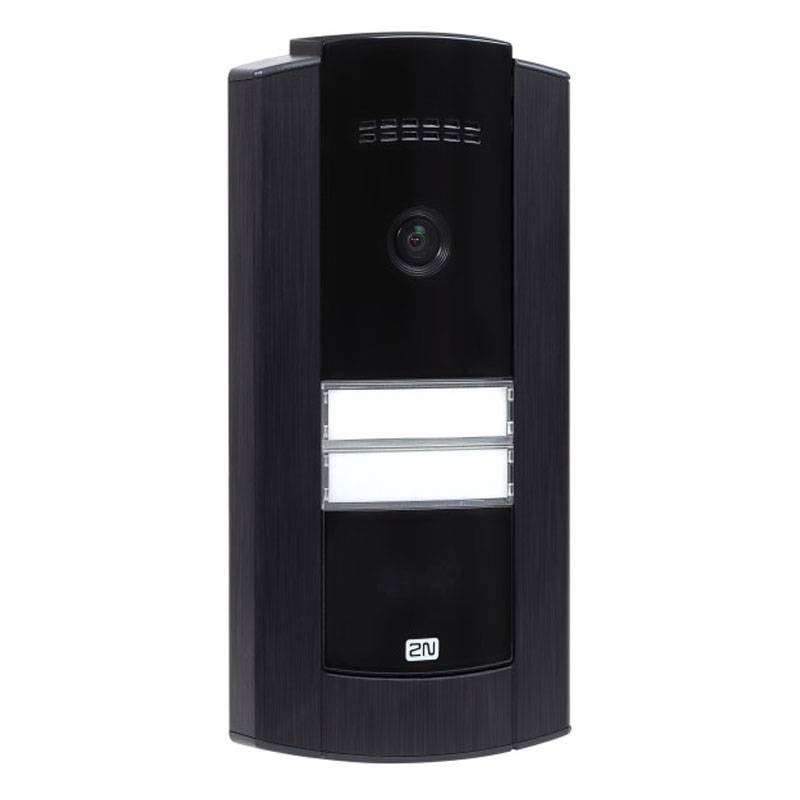

Compact 2N IP Base handset that can be installed very easily and quickly. It is fitted out with one or two buttons and brings high quality audio and video. The intercom is designed especially for smaller scale installations:
- A compact IP intercom with HD camera
- Very easy to install
- RFID card reader
Compatible with answering units: Indoor Touch 2.0 - View - Compact - Talk - Handset - Phone D7A - Grandstream GXV3370 - Grandstream GXV3350.
You can choose to use one or two buttons, both variants are included in the delivery.
2N Base Ip Intercom with Camera Black 9156111CB
€753.96
Tax included
€753.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Frequently bought together
Advantages:
A COMPACT IP INTERCOM WITH HD CAMERA:
- A stylish IP intercom with high-quality audio and video
RFID CARD READER:
- The basic model can be extended with a 125kHz or 13.56 MHz RFID card reader module
2N® REMOTE CONFIGURATION:
- Save time and money for onsite support thanks to our free service. Access all your devices remotely via secured cloud connection. Fastest response to your customers requests
READY FOR CONNECTING ADDITIONAL EQUIPMENT:
- The intercom also has inputs and outputs ready for connecting an electric lock or other equipment
DURABLE ALUMINUM FRAME:
- High durability is ensured by certified compliance with the intrusion protection standards IP65 and IK7
VERY EASY TO INSTALL:
- The mechanical and software installation of the 2N® IP Base intercom is very fast and intuitive. You will save not only time, but also installation costs
HIGH QUALITY VIDEO AND AUDIO:
- Thanks to its integrated HD camera and advanced sound processing with echo-cancellation the intercom provides sharp image and provides excellent audibility in all conditions
TAMPER SWITCH:
- The intercom is equipped with integrated tamper switch that detects unauthorized device intrusions
ONE OR TWO BUTTONS:
- You can choose whether to deploy it with one or two buttons, both options are included
Features:
- SIP 2.0 signaling protocol (RFC - 3261).
- Button design: plastic, transparent, backlit
- Number of buttons: 1 or 2 (package contains plastic buttons for both 1-button and 2-button options)
- Audio stream Codec: G.711, G.722, G.729
- Video Stream Codec: H.263+, H.263, H.264 for VoIP calls only MJPEG for http streaming
- Weight: max. 1000 g
- Operating temperature: -40°C 55°C
- Storage temperature: -40°C 70°C
- Operating relative humidity: 10%-95% (non-condensing)
- Dimensions: 229 × 109 × 31 mm
- Degree of protection: IP65, IK7
Audio:
- Microphone: built-in microphone
- Speaker: 2W
- Sound pressure for 1 kHz at a distance of 1 m: 78 dB.
Camera:
- HD camera resolution: 1280×960
- Visual angle: 135° in width, 109° in height
- Night vision: no.
Interfaces:
- PoE: 802.3af LAN PoE connector.
- Connector for expansion module (RFID card reader)
- IN1 - active/passive mode input terminal (-30 V to +30 V DC) OFF = open contact or UIN > 1.5 V - ON = open contact or UIN < 1.5 V
- 30 V/1 A AC/DC NO/NC relay output
- Active switch output: 8-12 V DC depending on power supply (PoE: 10 V; adapter: supply voltage minus 2 V), max. 400 mA
- Safety switch: yes, built-in
- Input for external power source: 12 V/2 A DC
- Supported protocols: SIP2.0, DHCP opt. 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- System: IP
