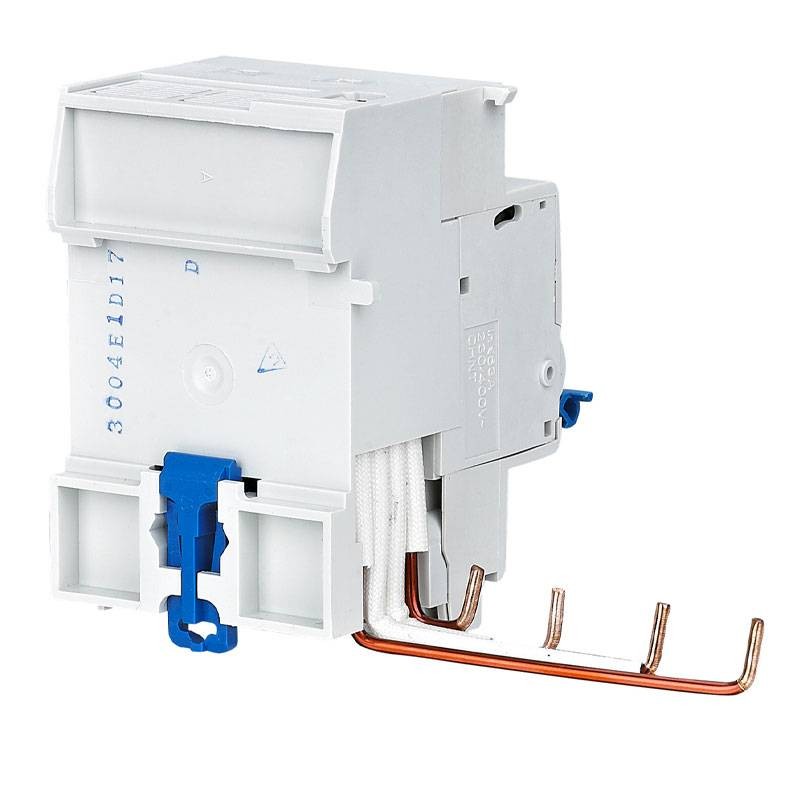

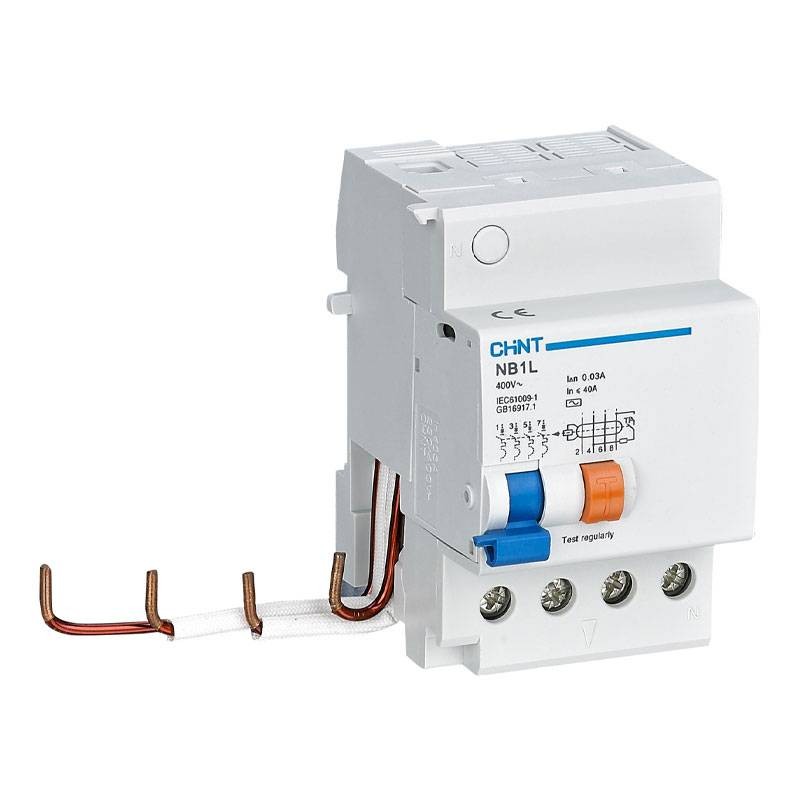

Chint Earth Leakage add-on Block NB1L-40 40A 30MA Type A 4P 3 Modules 198388
CHT 198388
6925808326418
Chint NB1L-40 40A Earth Leakage add-on Block with the following characteristics:
- Number of poles: 4P
- Rated current: 40A
- Type of differential A
- Rated residual current 30 mA
- Rated voltage: 400 Vac
- Number of modules: 3 Modules
- Degree of protection: IP20
Can be combined with NB1-63 and NB1-63H 4P series circuit breakers up to 40A.
Chint Earth Leakage add-on Block NB1L-40 40A 30MA Type A 4P 3 Modules 198388
€89.62
Tax included
€89.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
: 3
Frequently bought together
Earth Leakage add-on Blocks are mechanically designed to prevent mismating between the block and the circuit breaker: the rating of the block must always be equal to or greater than that of the circuit breaker. The plastic clamp on the side allows faster mounting of the block on the circuit breaker, and a push-button prevents possible tripping.
It is used to protect human health in the event of a ground fault (electrical leakage) or phase-to-ground electrocution, thus also providing protection against macro electrical shock, both direct and indirect, on exposed persons.
The type A Earth Leakage add-on Block, ensures operation for AC and one-way pulsating type currents.
Features:
- Reference standard: IEC/EN 61009-1
- Number of Poles: 4P
- Rated current: 40 A
- Differential characteristic: A
- Rated voltage: 400 Vac
- Rated frequency: 50/60 Hz
- Isolation voltage: 500 Vac
- Uimp Impulse Voltage: 6 kV
- Power Dissipation: 20 W
- Number of DIN modules (1 DIN = 18 mm): 3
- Degree of protection: IP20
- Dimensions: 88x126x78.5 mm (HxWxD)
- Matching Accessories: Can be combined with NB1-63 and NB1-63H 4P up to 40A
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 3
- Poles:
- 4P
- RCD Type:
- A
- Differential current :
- 0.03A
- Degree of protection:
- IP20
- Amps:
- 40A
- Circuit Protections:
- Earth Leakage add-on Blocks
