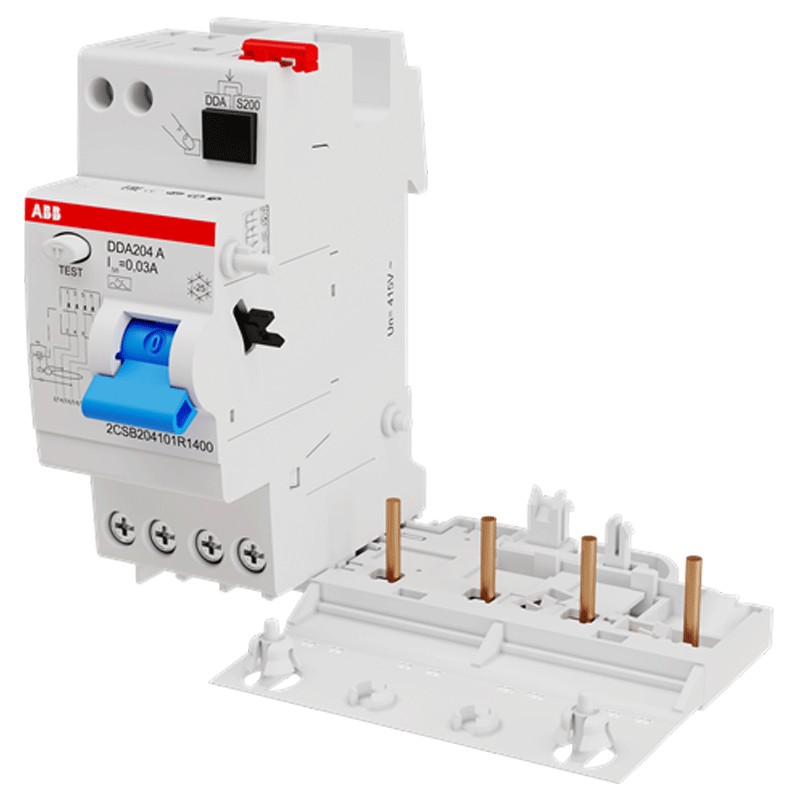

Abb 63A 30mA 4-pole differential lock B427982
ABB B427982
8012542798200
Abb differential lock (circuit breaker) DDA204 series with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 modules
- 4 poles
- 63 amperes
- Rated residual current 30mA
- Rated voltage 230/400 Vac
- Type of differential A
Abb 63A 30mA 4-pole differential lock B427982
€207.52
Tax included
€207.52
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 22
: 2
Pay in installments with Klarna
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A, ensures operation for AC and unidirectional pulsating type currents.
Features:
- Abb series
- Rated voltage 230/400Vac
- Rated current In 63A
- Rated residual current 30mA
- Type of differential A
- 4 poles
- 4 modules
- Height 93mm
- Width 140 mm
- Depth 76 mm
- Net weight 311 gr
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 6
- Poles: 4P
- RCD Type: A
- Differential current : 0.03A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
