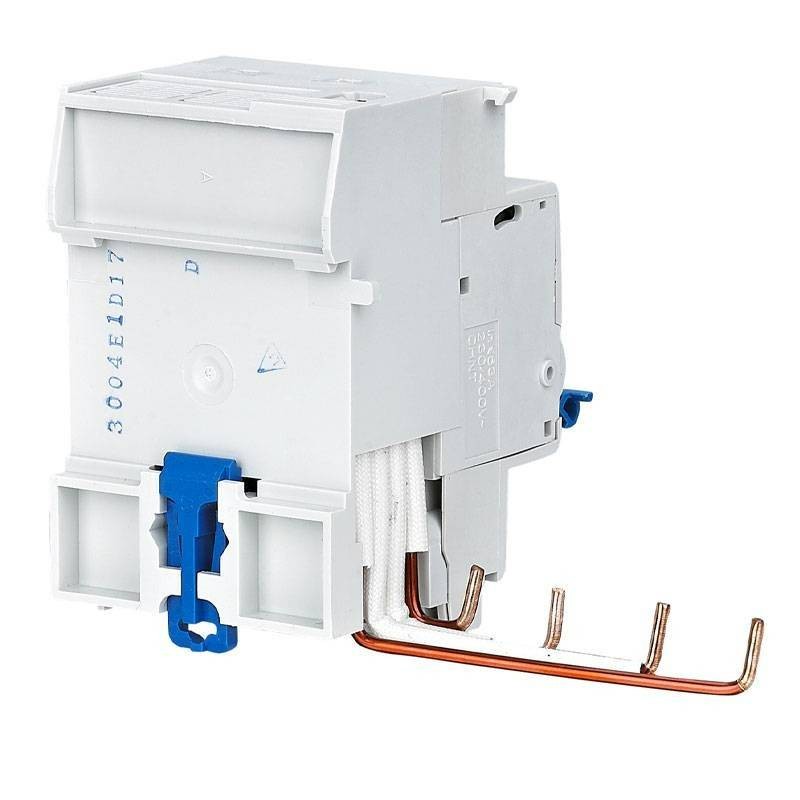

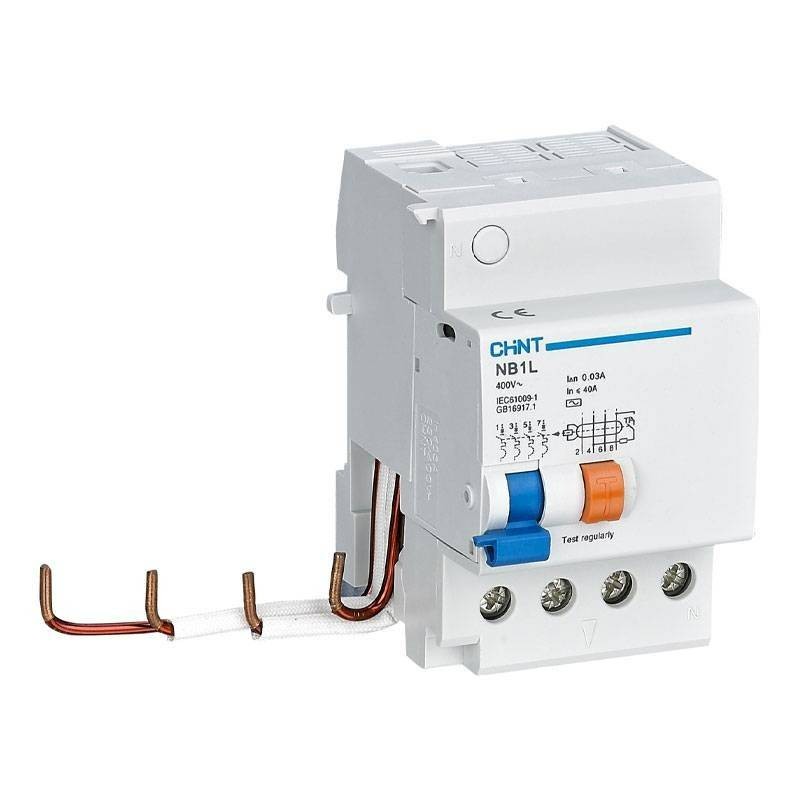

Chint Earth Leakage add-on Block NB1L-63 63A 500MA Type AC 4P 4 Modules 51951


CHT 51951 8058776750201

Chint NB1L-63 63A Earth Leakage add-on Block with the following characteristics:



  • Number of poles: 4P
  • Rated current: 63A
  • AC differential type
  • Rated residual current 500 mA
  • Rated voltage: 400 Vac
  • Number of modules: 4 Modules
  • Degree of protection: IP20



Can be combined with NB1-63 and NB1-63H 4P series circuit breakers up to 63A.

Request info about this product

Chint Earth Leakage add-on Block NB1L-63 63A 500MA Type AC 4P 4 Modules 51951

€56.50 Tax included
€56.50

Chint Earth Leakage add-on Block NB1L-63 63A 500MA Type AC 4P 4 Modules 51951

€56.50
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Out of stock Incoming
qty

Chint Earth Leakage add-on Block NB1L-63 63A 500MA Type AC 4P 4 Modules 51951

€56.50


Two-year warranty
Secure Payment
Easy return within 14 days

Earth Leakage add-on Blocks are mechanically designed to prevent mismating between the block and the circuit breaker: the rating of the block must always be equal to or greater than that of the circuit breaker. The plastic clamp on the side allows faster mounting of the block on the circuit breaker, and a push-button prevents possible tripping.



It is used to protect human health in the event of a ground fault (electrical leakage) or phase-to-ground electrocution, thus also providing protection against macro electrical shock, both direct and indirect, on exposed persons.



The AC-type Earth Leakage add-on Block, works only with alternating current. Almost all installations for civil use fall into this type.




Characteristics:

  • Reference standard: IEC/EN 61009-1
  • Number of Poles: 4P
  • Rated current: 63 A
  • Differential characteristic: AC
  • Rated voltage: 400 Vac
  • Rated frequency: 50/60 Hz
  • Isolation voltage: 500 Vac
  • Uimp Impulse Voltage: 6 kV
  • Power Dissipation: 22.5 W
  • Number of DIN modules (1 DIN = 18 mm): 4
  • Degree of protection: IP20
  • Dimensions: 88x135x78.5 mm (HxWxD)
  • Matching Accessories: Can be combined with NB1-63 and NB1-63H 4P up to 63A

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
RCD Type:
AC
Differential current :
0.5A
Degree of protection:
IP20
Amps:
63A
Circuit Protections:
Earth Leakage add-on Blocks
