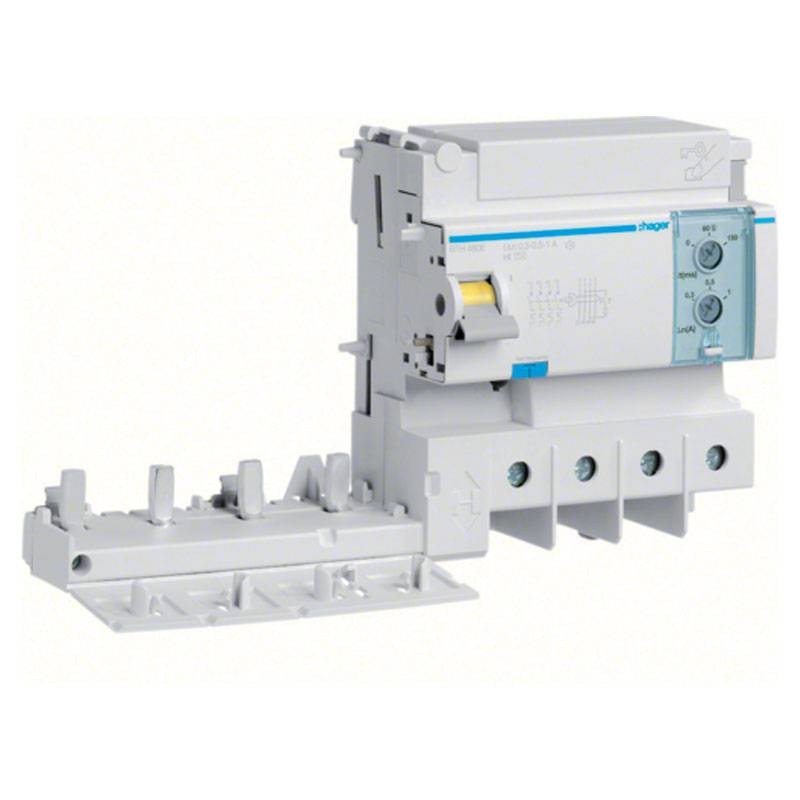

Hager 4P 125A adjustable differential lock AC 6 modules BTH480E
HAG BTH480E
3250611500087
Hager differential block with the following characteristics:
- Number of poles: 4P
- Rated current: 125 Amps
- Rated differential current: 300-500-1000 Ma
- Rated operating voltage: 240 / 415V
- Number of modules: 6
- Type of AC differential
- Tightening torque: 3.5 Nm
- Enclosure degree of protection: IP20
Hager 4P 125A adjustable differential lock AC 6 modules BTH480E
€462.96
Tax included
€462.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 2
The pure earth leakage circuit breaker is used to protect people, not systems. The moment the person goes to touch it, it creates a circuit with the ground. The current instead of staying in the household circuit, uses the human body to go to ground.
The 'residual current device, also called a circuit breaker, is a device in your electrical system. It is capable of opening the circuit, that is, shutting off the power supply, the moment the current accidentally dissipates.
A pureresidual current circuitbreaker offers protection in case of current leakage but not in case of overvoltage. Instead, the circuit breaker is required for this type of problem.
The AC-type earth leakage circuit breaker, works only with alternating current. Almost all systems for civil use fall into this type.
Characteristics:
- Rated frequency: 50 Hz
- Rated insulation voltage: 500 V
- Rated fault holding current: 6000 V
- Total power dissipation: 15 W
- Protected against untimely tripping
- Electrical life and number of cycles: 1000
- Number of operations (mechanical life): 7000
- Low connection type for modular products: metallic
- Type of low connection for modular products: screw clamp
- Removal from below for modular products
- Minimum cross section with flexible cable: 10 - 50mm²
- Minimum cross-section with rigid cable: 10 / 70mm²
- Adjustable differential sensitivity
- Adjustable tripping time
- Differential tripping time: 0 / 60 / 150 ms
- Altitude: 2000m
- Tropicalized execution: for all climates
- Product depth: 69mm
- Product height: 103 mm
- Product width: 213 mm
There are no reviews
Data sheet
- Voltage:
- 230V/415VAC
- Modules:
- 6
- Poles:
- 4P
- RCD Type:
- AC
- Differential current :
- 0.3-0.5-1A
- Amps:
- 125A
- Circuit Protections:
- Earth Leakage add-on Blocks
