Abb Single-family flush-mounted videophone kit M20492 7
ABB WLK511B
6955891819429

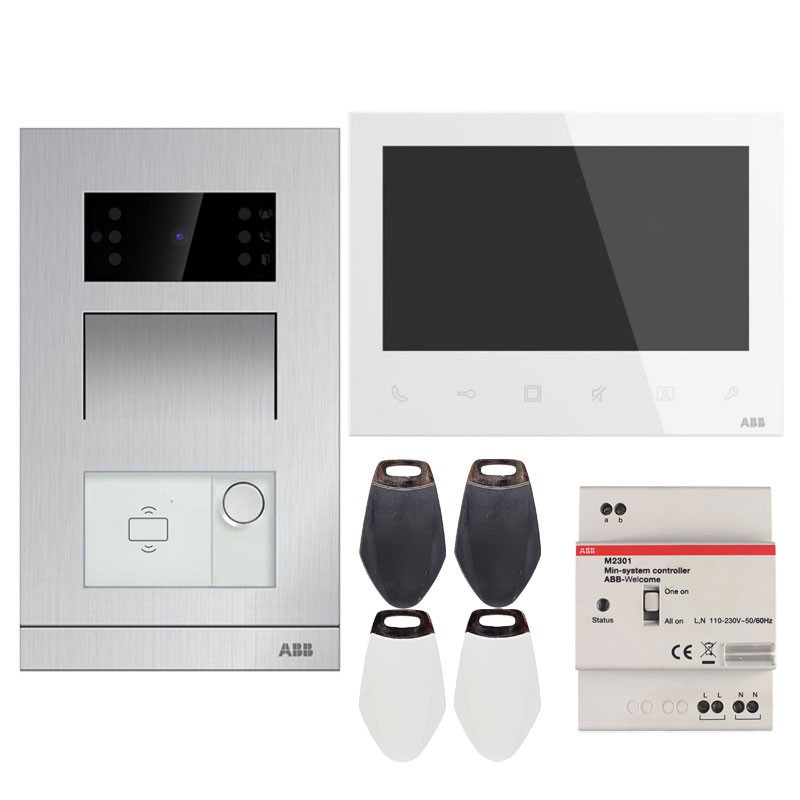

Single-family Recessed Video Doorphone Kit Abb M20492 consisting of:
- 1 Flush-mounted Mini Pushbutton Panel with 1 button and RFID (code WLE211A)
- 1 7 Inch audio/video monitor with image memory (code WLI403B)
- 1 Pre-Installation Box (code WLS200X)
- 1 650 mA Controller Power Supply (part number WLD103X)
- 4 ID transponder key fobs (White/Black)
Abb Single-family flush-mounted videophone kit M20492 7
€438.02
Tax included
€438.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Specifications of the components in the Kit:

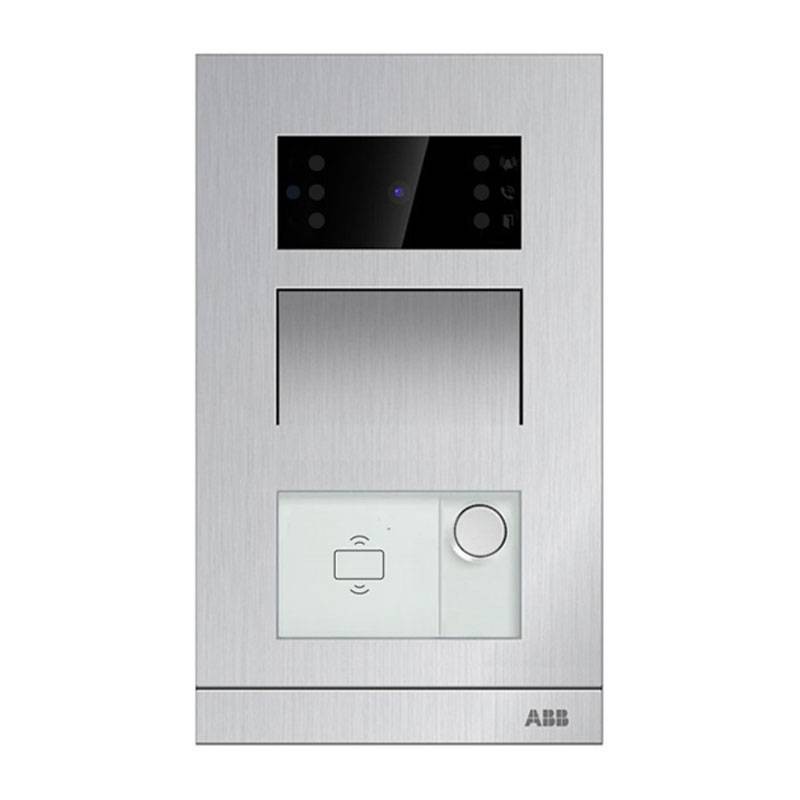

One-piece video door station code WLE211A:
- IP54 degree of protection
- For single-family installation
- With status LED and ID transponder reader (125KHz) for opening the electric lock by badge (e.g. WLR401N)
- For recessed installation (width 105 mm)
- Recessed box included in the package
- Features one live contact (e.g., for electro lock) and one volt-free contact (NO or NC, e.g., for automatic gate), with input for connecting a local door opener button that controls the priority between the two
- Closing/opening time and on-call volume can be adjusted
- Dimensions: Depth: 0.043 m - Height: 0.180 m - Width: 0.105 m
- Net weight: 0.439 kg

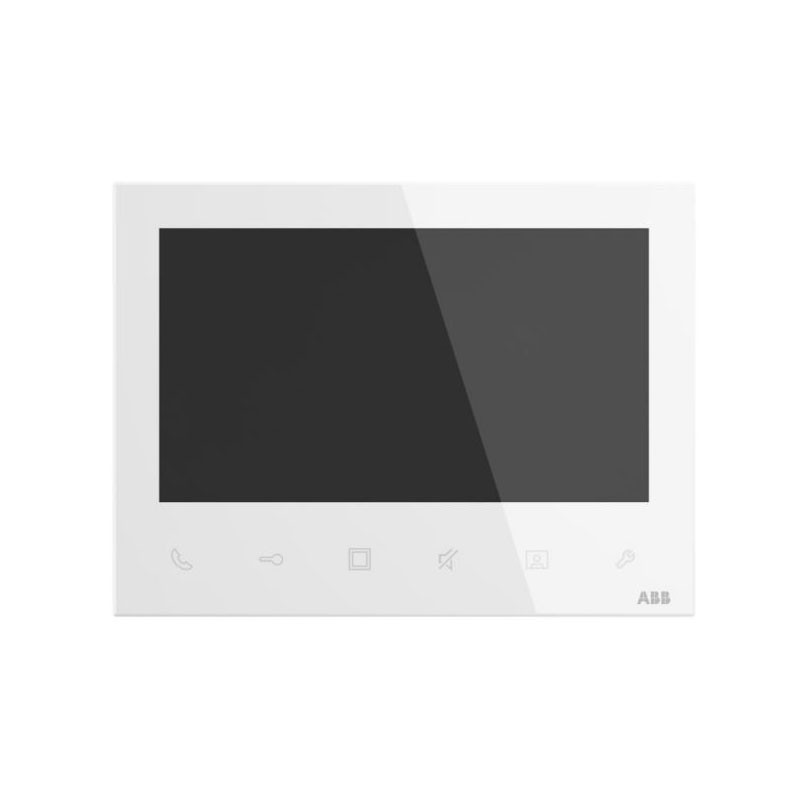

Video Door Station Abb M22411-W 7 Inch White code WLI403B:
- Indoor video station with 7" non-touch display.
- Additional 6 quick-access touch buttons
- Supports up to 5 intercom functions and universal switches via a simple quick access button
- Easy installation for surface mounting
- Supports image memory
- Easily configured via commissioning wizard
- Discreet and modern design
- Large 7" display
- Intuitive graphical user interface
- 5 programmable buttons for flexible feature customization (e.g., garage door management)
- User friendly graphical interface with wide viewing angles and excellent resolution
- Intuitive button layout with separate "call" and "door opener" buttons to avoid incorrect operations
- Up to 5 intercom calls, easily accessible with a single touch
- Up to 5 programmable buttons (e.g., garage door management)
Image storage:
- In case of absence, for each unanswered call, 2 images of the person who intercoms us are automatically stored. In addition, during the conversation between a door station and an indoor station, it will be possible to manually take a picture of the person who called
Intercom function:
- With Welcome M it is possible to call indoor stations in the same apartment or other apartments in the same system. Guaranteed, however, is the ability to block unwanted calls while safeguarding one's privacy. Intercom function is available on all indoor positions without the need for additional devices
Call Diversion:
- During periods of absence, this function allows you to divert calls arriving at your home, to a different indoor station such as that of other apartment buildings, or to the concierge
Hands-free function:
- Function that allows you to amplify audio communication and speak directly without the use of a handset
7 Inch Monitor:
- The 7-inch display allows a wide view of what is happening outside the home due to the monitor's high resolution. All controls are touch-sensitive, allowing easy access to all features of the indoor station, from screen settings to intercom calls to recording voice messages. Backlit controls provide quick access to key features
650 mA controller power supply code WLD103X:
- Occupies 4 Din Modules
- Switch allows selection of ALL ON mode (all apartment stations in an apartment ring and show the image from the door station if someone has intercom) or ONE ON mode (only the MASTER apartment station rings and shows the image, the others ring only NOTE: the apartment station that answers the call will see the image, even if it is not the MASTER)
Dimensions:
- Depth: 0.09 m - Height: 0.065 m - Width: 0.072 m
- Net weight: 212 grams
Data sheet
- KIT: Video Doorphone Kit
- Model: Single-family house
- System: 2-Wire
