Abb Single Family Kit M20481 Monitor 4.3 WIFI Wall Mount WLK401B
ABB WLK401B
6955891818057

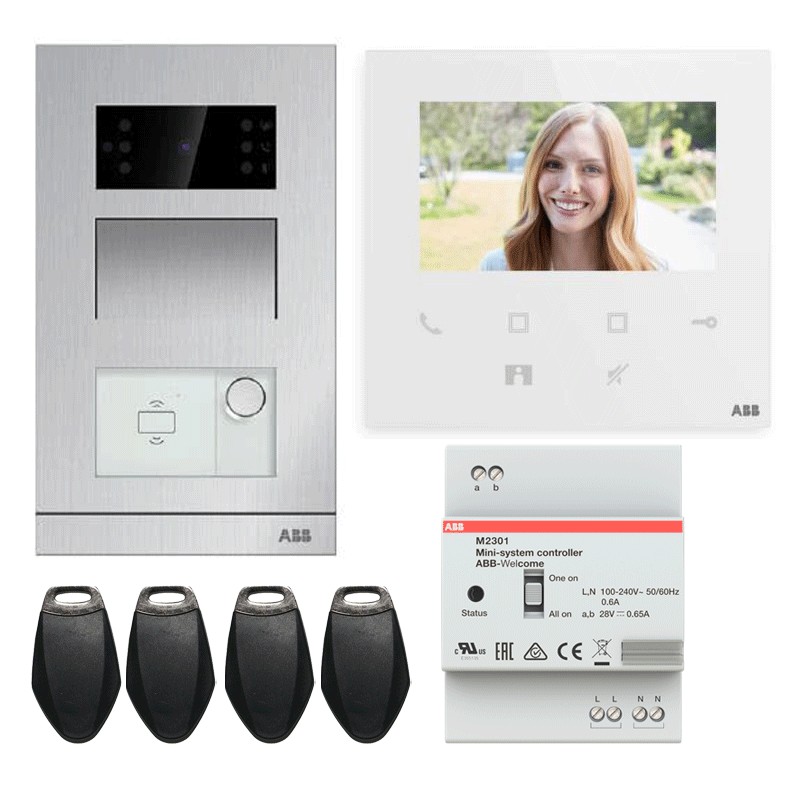

Abb Single-Family Kit consisting of:
- 1 piece code WLI501B 4.3'' Wi-Fi monitor
- 1 piece part number WLE111A Mini wall-mounted door station, 1 button, RFID
- 1 piece part number WLD103X Controller power supply 650 mA
- 4 piece WLR401N ID transponder key fob
Abb Single Family Kit M20481 Monitor 4.3 WIFI Wall Mount WLK401B
€540.59
Tax included
€540.59
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Video intercom kit of the same series
Kit component specifications:
Welcome M Videophone WiFi Monitor 4.3:
- Easy to use
- 2 customizable buttons
- Size 131.4 x 122.3 mm with only 18 mm thickness
- Easy configuration via APP
- You can connect up to 8 smartphones/tablets to answer wherever you are
- Cybersecure with encrypted communications
- Firmware upgradeable via the Internet
- Compatible with existing Welcome M systems
Control of the various functions is designed to be intuitive from the very first use; the two programmable buttons allow you to adapt them to the needs of the installation. Everything you need, from home and remotely, with the assurance that data and communications are protected to the highest security standards.
Key Advantages:
Design:
- Intuitive user interface
- Wide-angle video quality
- Self-explanatory touch buttons
- Free buttons for garage, intercom
- Only 18 mm thick
Simplicity:
- Simple configuration from APP
- You can connect up to 8 smartphones/ tablets to answer wherever you are
- State-of-the-art commissioning with QR code
- Button programming is editable via APP
Security:
- The highest level of protection for people, network and sensitive data
- ABB's security solution can detect and remove risks and help you keep software up-to-date
- Protection against unauthorized access through encryption and trusted passwords
- You manage your data-you decide who and how they can use it
Features:
- IPS display for better viewing angle and intuitive interface
- Answer and unlock buttons are in opposite positions to prevent unintentional pressing. Settings button is mechanical, on the side of the device
- Easy WiFi connection: download the ABB Welcome APP, scan the QR code, and follow the steps
- To add more mobile devices, simply approve pairing on the first device configured
- Up to 8 smartphones/tablets can be associated with one monitor, using the same MyBuildings account
- Supports firmware updates via ABB Welcome APP
- In versions with and without T-loop
- Dimensions: 131.4 x 122.3 mm with only 18 mm thickness
- Cybersecure thanks to encrypted communications
Mini wall-mounted door station, 1 button, RFID:
- IP54 one-piece video door station for single-family installation
- With status LED and ID transponder reader (125KHz) for opening the lock by badge (e.g. WLR401N)
- For wall-mounted installation (width 99 mm)
- Features one live contact (e.g., for electric lock) and one volt-free contact (NO or NC, e.g., for automatic gate), with input for connecting a local door opener button that controls the priority between the two
- Closing/opening time and on-call volume can be adjusted
- Dimensions: product depth: 0.168 m - product height: 0.026 m - product width: 0.099 m
- Product net weight: 0.375 kg
650mA controller power supply:
- 650mA controller power supply
- Occupies 4 Modules
- The switch allows you to select ALL ON mode (all indoor stations in an apartment ring and show the image from the outdoor station if someone has buzzed) or ONE ON mode (only the MASTER indoor station rings and shows the image, the others ring only. NOTE: the apartment station that answers the call will see the image, even if it is not the MASTER)
- Dimensions: Product depth: 0.09 m - Product height: 0.065 m - Product width: 0.072 m
- Product net weight: 0.212 kg
There are no reviews
Data sheet
- KIT: Video Doorphone Kit
- Model: Single-family house
- System: 2-Wire
- WIFI: Yes
