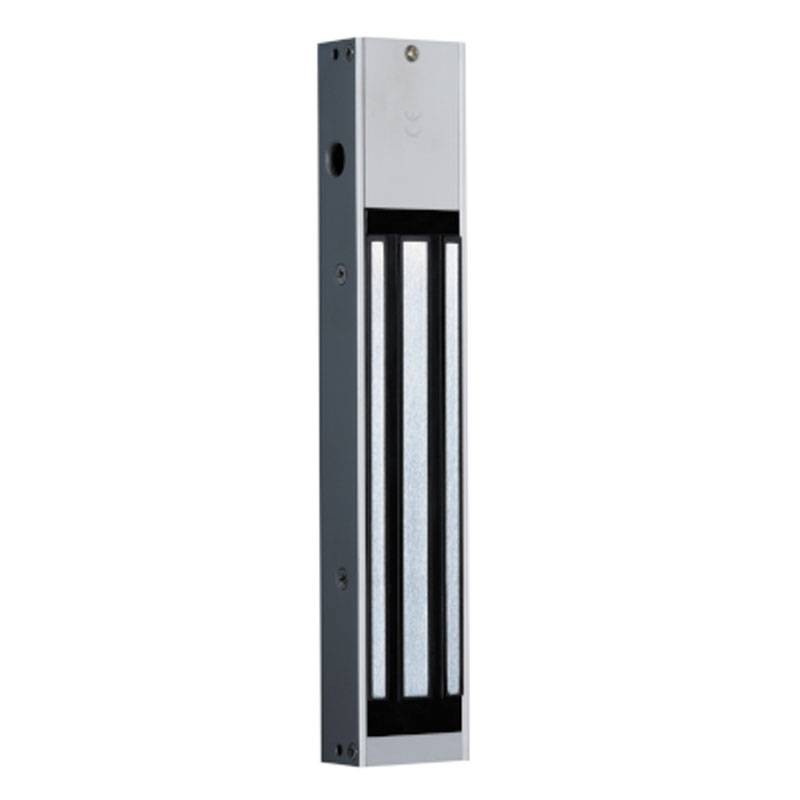

CDVI 12-24V Electromagnetic Stop for Application Holding 300Kg C3S11
CDV C3S11
3662211001138
Electromagnetic Clamp to be applied CDVI Holding 300Kg with the following features:
- Power supply: 12-24 V dc
- Power consumption: 12 V dc = 550 mA, 24 V dc = 275 mA
- Holding force: 300kg
- Status reed
- Mounting to apply
- Including counterplate
- Corrosion resistance
- No mechanical wear and tear
- Easy to install
- Recommended for indoor use
- Fail safe (disconnection in the absence of power)
- No residual magnetism
- Varistor included: Including electronic protection to eliminate EMF
Areas of use: offices, banks, industry, public buildings, apartment buildings.
CDVI 12-24V Electromagnetic Stop for Application Holding 300Kg C3S11
€75.49
Tax included
€75.49
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Frequently bought together
Electromagnetic latch to be applied holding 300 kg for fire doors and emergency exit way. Electric Vents, Electric Strikes and Electric Locks, mortise locks and apply Access Control.
All these products can be installed in any type of environment. Each installation must meet current European standards ensuring maximum security of functionality in any condition. All our Electric and Electronic locks can be operated in a traditional way or by means of access control systems. Including: vandal-proof keypads, proximity, radio, biometric or long range readers.
Important Notes:
- Check the position of the jumpers before energizing the solenoid. Incorrectly placed jumpers can damage the Electromagnetic latch.
- Ensure that the electromagnet and counterplate are aligned with each other
- The counterplate once mounted with the rubber washer should be able to pivot to compensate for any misalignment of the door.
There are no reviews
Data sheet
- Type: Stops doors
