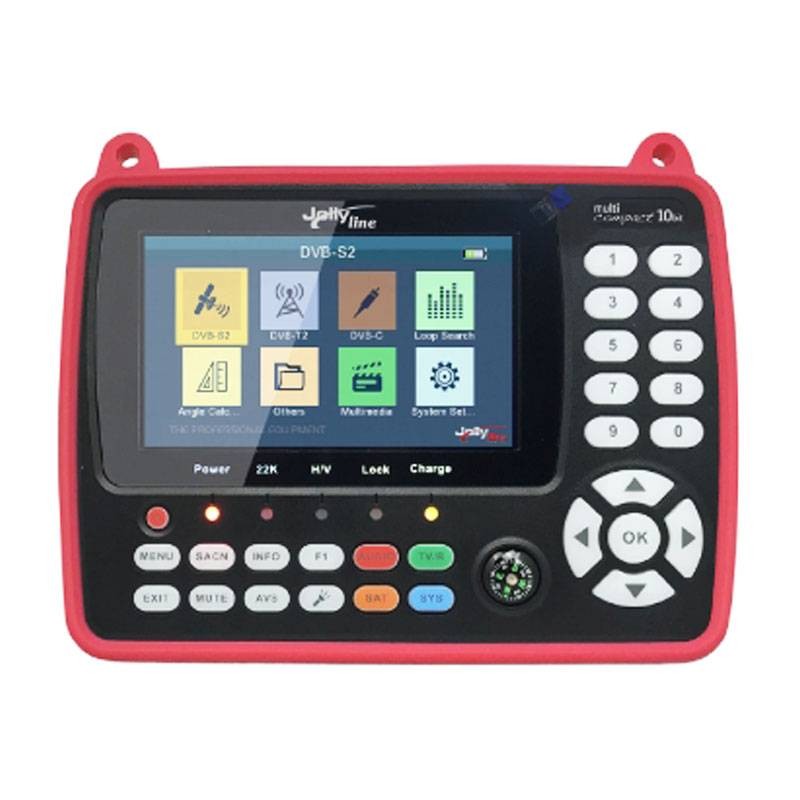

GBS/Konelco Multi Compact 10BIT Digital and Satellite Meter 43988/10BIT
GBS 43988/10BIT
GBS/Konelco Multi Compact 10BIT Digital and Satellite Meter, including DCSS, cable with CCTV room pointing.
GBS/Konelco Multi Compact 10BIT Digital and Satellite Meter 43988/10BIT
€212.05
Tax included
€212.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Features:
- 4.3" screen
- Features h.265 HVEC 10bit, dCSS, unicable SCR, camera control
- DVB-S/DVB-S2 F connection
- DVB-S/DVB-S2 frequency range 950 MHz - 2150 MHz
- DVB-S/DVB-S2 signal level -65dBm - 25dBm
- LNB switch control 22 KHz
- LNB power supply DVB-S/DVB-S2 13/18, max 400mA
- Modulation type DVB-S/DVB-S2 QPSK, 8PSK, 16APSK
- Symbol rate 2
- DVB-T/DVB-T2 connection IEC "F" 9.5mm
- DVB-T/DVB-T2 frequency range VHF-UHF - 48MHz - 862MHz
- DVB-T/DVB-T2 modulation rate 2Mbps - 45Mbps
- SCPF and MCPC Capability Yes
- DVB-T/DVB-T2 signal level -79.5dBm (max)
- Antenna power supply 5V, 12V/24V max 100mA
- Modulation type DVB-T/DVB-T2 QPSK, 16QAM.64QAM, 256QAM
- AV output 3.5mm jack, CVBS, Stereo L/R
- HD port 1.4 output
- AV input 3.5mm Jack, CVBS, Stereo L/R
- Video decompression h.265 HVEC, h.264 MP&HP@L4, MPEG-4 ASP@L5 HD, MPEG-2 MP@HL, MPEG-1, HW JPEG
- Video resolutions PAL-25 frames@720, 576 - NTSC-30 frames@720, 480
- Video format 4/3, 16/9, by pan & scan and letter box
- MPEG-1 Layer I/II audio decompression, MPEG-2 Stereo, Mono, R/L
- Upgrade via USB 2.0
- 500MHz Processor
- 1Gbit DDR3 SDRAM memory
- Battery 7.4V/2600mAh
- Adapter Output: 12Vdc/1.5A - Input: 100-240Vac 50/60Hz
- Power consumption 10W max
- Dimensions 18 x 13.5 x 4 cm
- Weight 0.610 Kg
There are no reviews
Data sheet
- Type: Signal meters
