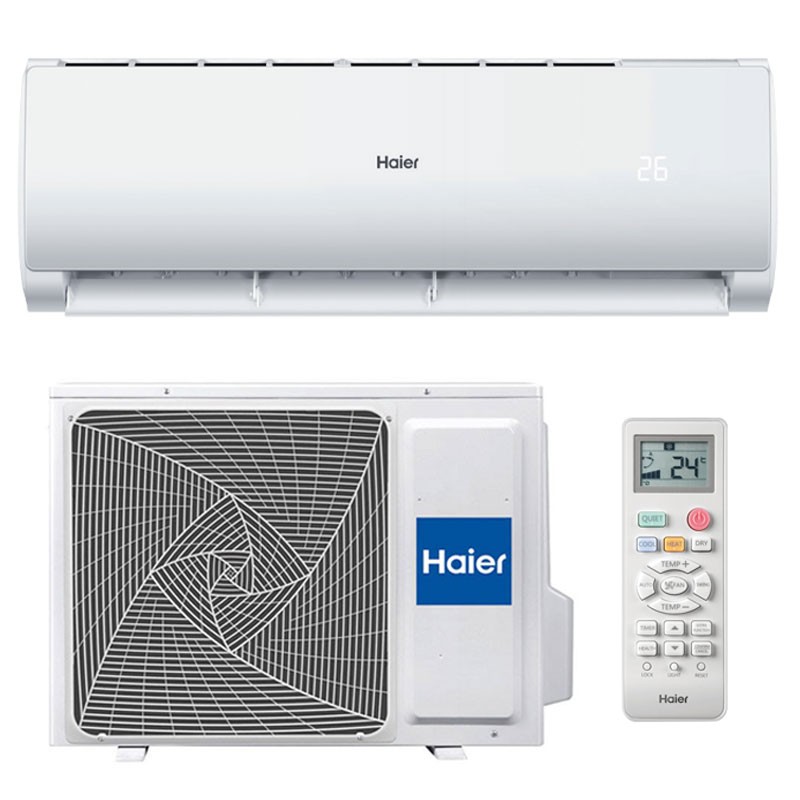

Haier Geos + Air Conditioner 3,5KW 12000Btu A++/A+ R32 WIFI with installation kit
KIT HAIGE12
Haier Geos Plus + inverter air conditioner 3.5KW 12000Btu, energy class A++/A+, with new Gas R32, the price includes:
- 1 Indoor Unit (AS35TAMHRA-C 2501302BN)
- 1 Outdoor Unit (1U35YEFFRA-C 2502302BN)

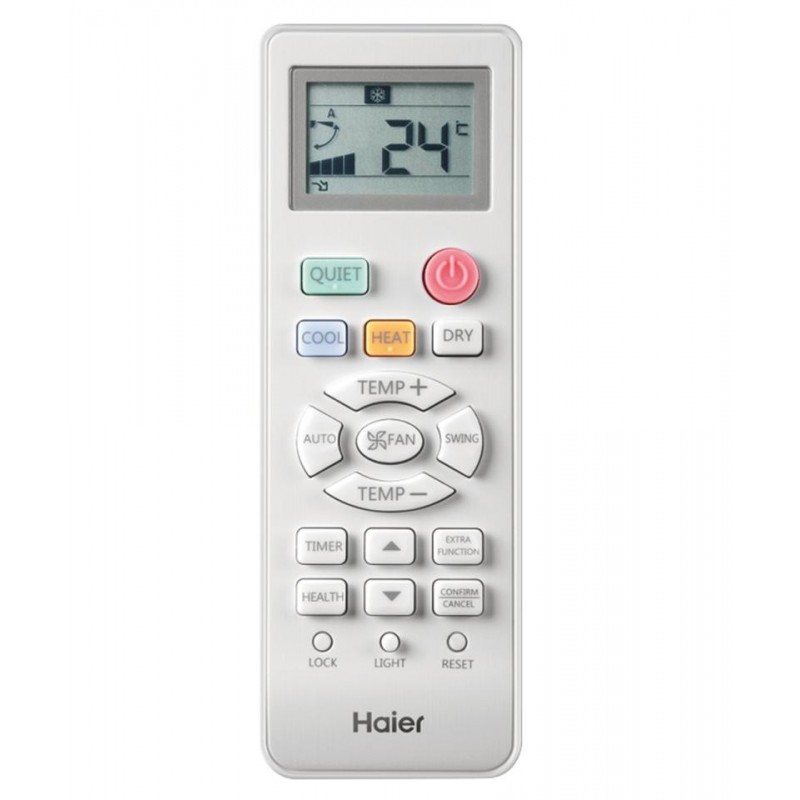

- 1 Remote control (YR-HE1)
- 1 Mounting Kit
Integrated Wi-Fi control to remotely control the air conditioner.
For a room of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Haier Geos + Air Conditioner 3,5KW 12000Btu A++/A+ R32 WIFI with installation kit
€582.97
Tax included
€582.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 173
: 171
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
- -50%
- -50%
Haier introduces the new Geos Plus + Inverter wall-mounted air conditioner with R32 refrigerant gas. Thanks to the Intelligent Air function, it guarantees more uniform air distribution.
Self-Clean Function
- The Self-Clean technology freezes the humidity present in the air on the exchanger. The ice that forms traps all the dirt, dust and bacteria that have settled on the surfaces. The subsequent defrosting phase ensures that the ice, as it melts, drags the impurities towards the drain, leaving the exchanger clean and guaranteeing excellent quality of the outgoing air. If the evaporator is not cleaned regularly, the accumulated dirt reduces the heat exchange by 15/30% and also favours the proliferation of bacteria and mould.
New WIFI
- With Haier's "hOn" app, you can control all the Haier appliances in your Smart Home from your smartphone or tablet. In addition, through hOn, you can manage all the basic functions, purification functions and much more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa.
Sleep function:
Haier has designed a program for the night function of the air conditioner to ensure maximum comfort without wasting energy.
- In heating mode, the temperature will be set 2°C lower during the first hour and another 2°C lower during the second hour than the set temperature.After 2 hours it will increase by 1°C and the temperature will remain constant for 6 hours before the unit is turned off.
- In cooling mode, the temperature will be set 1°C higher during the first hour and then again 1°C higher during the second hour than the set temperature. After that, the temperature will be constant for 6 hours before the unit is turned off.
Intelligent Air
This function automatically directs the flaps to better distribute the flow according to the set mode.
- In cooling mode, the flaps direct the airflow upwards. The cool air flowing downwards will decrease the temperature of the room evenly and quickly.
- In heating mode, the flaps direct the airflow downwards. Warm air tending upwards will raise the temperature of the room evenly and quickly.
Technical features
Cooling:
- Rated capacity Min/Max: KW 3,2 (0.8-3.6)
- Rated input power: Min/Max kW 1.06 (0.3-1.6)
- SEER 6.1
- Energy Class: A++
- EER 3.01
- Indicative annual energy consumption kW/a 184
Heating:
- Rated capacity Min/Max: KW 3.4 (0.8-4.20)
- Rated input power Min/Max 0.75 (0.3-1.6)
- SCOP: 4.0
- Seasonal energy efficiency class A+
- COP 3.40
- Indicative annual energy consumption: kWh/a 980

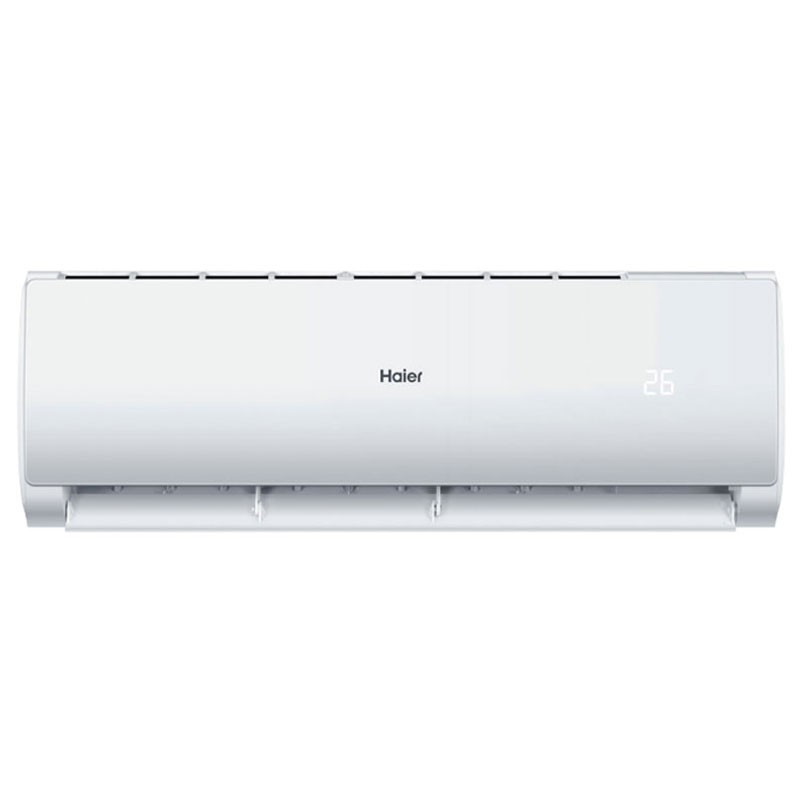

Indoor Unit Features:
- Dimensions: (WxDxH) 820x195x280mm
- Weight 8,2Kg
- Treated air cubic meters / h 550
- Dehumidification capacity l/hr 1.4
- Sound pressure level (Cooling/heating) dBa 38/34/29/20
- Sound Power Level dBA 56

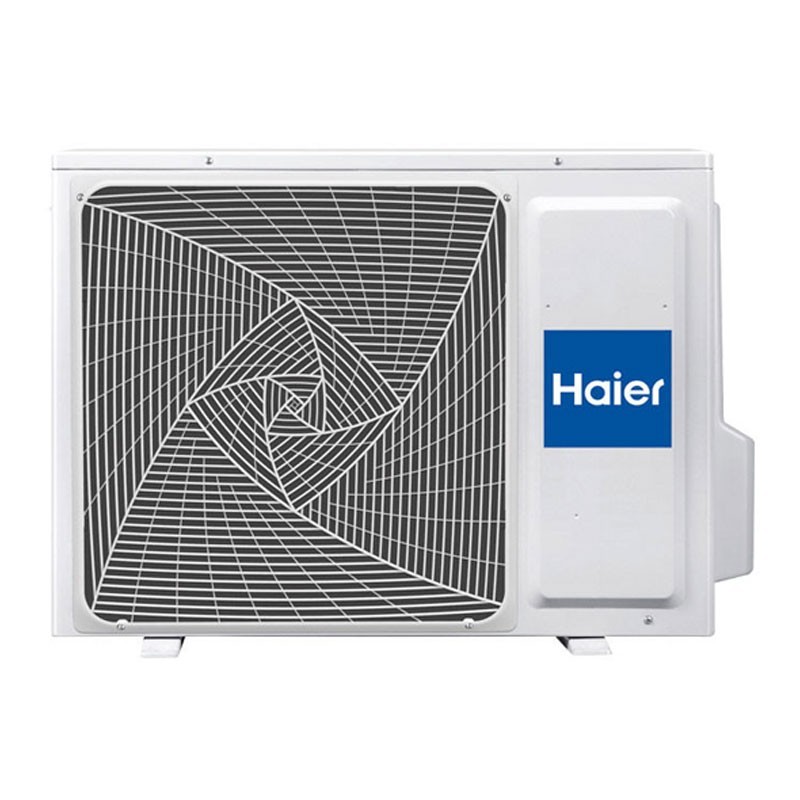

Outdoor Unit Features:
- Dimensions: (WxDxH) 700x245x544mm
- Weight 23,5Kg
- Sound Pressure Level dBa 50/51
- Sound Power Level dBA 62/63
- Power supply Single-phase 220-240 / 50Hz
- Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8")
- Max/min pipe length 20/3 meters
- Max height difference between indoor/outdoor unit 10 meters
- Refrigerant Type: Gas R32
- Piping length without adding refrigerant 5 meters
- Refrigerant charge in factory 0.53 Kg
- Additional charge beyond standard length 20 g/m
- Operating Temperatures in Cooling 21 - 35 Degrees (in) / -10 - 43 Degrees (out)
- Operating temperatures in Heating 10 - 27 Degrees (in) / -15 - 24 Degrees (out)

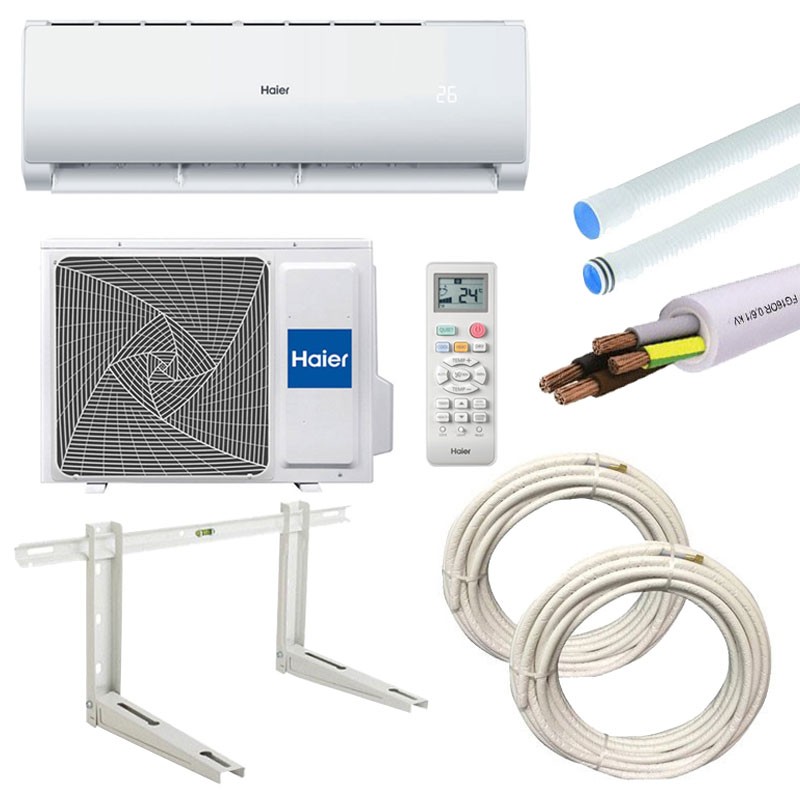

Specifications of the products in the Mounting Kit
Wall brackets for air conditioners 9000/12000btu for external unit:
- Galvanized and powder coated steel brackets
- Shelves with quick insertion anti-vibration feet
- Stainless steel screws in the articles KLIMA STRONG INOX and KLIMA TOP INOX SCREWS
- KLIMA STRONG and KLIMA HEAVY for non-standard machines
- KLIMA TOP shelf for the highest quality
- Available KLIMA GROUND and KLIMA FOOT vibration damping bases for floor installation
- White RAL 9002
- Arm length L1420 mm
- Height 400 mm
- Bracket thickness 15/10 mm
- Crossbar length 780 mm
10 meters Double insulated fireproof cable 5X1,5 mmq
10 meters Arnocanali condensate drain hose D. 17-20mm
BIESTRUSO corrugated anti-crush hose. Product with double layer of POLYPROPYLENE to guarantee the maximum safety in the use under trace. Tube made with Polypropylene stabilized against UV rays. Working temperature - 30°C 75°c.
Kit Tecnogas FAST PIPE composed by:
- 2 conical pipes 6 meters one with female-female connections, diameter 1/4 (diameter 6,35) and one with female-female connections, diameter 3/8 (diameter 9,52) with copper gaskets included. Suitable for air conditioners 9000/12000btu.
Construction characteristics of the pipe:
- Closed cell expanded polyethylene
- Barrier polymer
- 4-layer aluminium film
- long-chain polyamide
- high tenacity synthetic fibre
- anti-Uv and anti-IR coating
- anti-Uv film
Fittings: "Helix" brass: Calibri, Screw, Crimpi.
The field-of-use refrigeration Circuits F-containing gas R410A-R32-R134A-R404A-R407C
Operating temperatures -30°C/110°C (Max 130° C non-continuous)
Maximum operating pressure 100 Bar
Très bien pour l instant je viens de le monter premier essai concluant
Très bonne machine
A recommander
Très bon rapport qualité prix
Facile à mettre en service surtout avec la liaison déjà préparé
Parfait 👍
Produits conformes a la description.
Je conseille vivement ce produit
En cours d installation.
Prévoir pompe à vide ,ou un installateur
Vraiment c'est la 1er clim qui est au top c'est celle qui fonctionne parfaitement (j'en ai 4).je recommande cette clim
Montage et paramétrage de l application facile
je conseille pas de problèmes.
Good product and Nice features.
Very happy with this product
Son prix avec tout les accessoires et le fait que ce soit un A
Je recommande !!!!!!!!!!!!
Data sheet
- KIT: Monosplit with KIT
- Gas: R32
- Power: 12000 BTU (3,5 Kw)
- WIFI: Integrated
- Room Size: 35m²
- Energy class: A++
- Series: Geos
