Home Abb starter kit Zenit anthracite series with white complimentary plates
KIT ZENITHA1

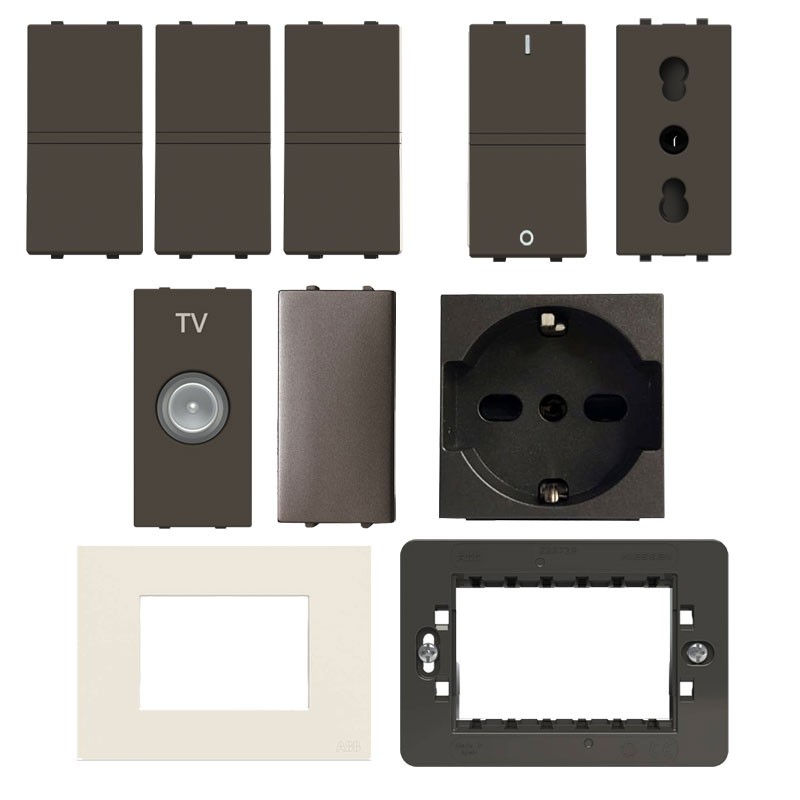

KIT starter promo Home Abb Zenit series consisting of:
- 4 pieces Illuminable Switch 1 Pole Z1001AA
- 2 pieces Illuminable Diverter Switch Z1003AA
- 2 pieces Illuminable 2 pole switch Z1002AA
- 4 pieces Illuminable 1-pole switch Z1005AA
- 5 pieces IT/DE Schuko Current Socket Z1109AN
- 10 pieces IT Bivalent 10/16A Current Socket Z1103AN
- 1 piece Male terminal TV socket Z1131AN
- 40 pieces Supports 3 modules Z1603YY
- 20 pieces Cover plates Z1601AN
- 15 pieces Polycarborn plate 3 modules White Z0300BL GIFT
With the kit you save compared to individually purchased items
Home Abb starter kit Zenit anthracite series with white complimentary plates
€295.24
Tax included
€295.24
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 90
Pay in installments with Klarna
Frequently bought together
Specification items included in the Kit:
Abb Zenit Unipolar Switch type N2101.T AA:
- 1 Module
- Color Anthracite
- Rated voltage 110-250 Vac.
- Illuminable
- Rated LED power (230/127 Vac): 200/100W
- Screw terminals
Single-pole diverter Abb Zenit N2102.T AA
:- 1 Module
- Rated voltage 110-250Vac
- Rated current 16AX
- Rated iLED power (230/127 Vac): 200/100W
- Screw terminals
- Color Anthracite
- Illuminable
LED localization lamp accessory N2194 BB (2CLA219400N1201) - N21941 BB - N2194.2 BB.
Abb Zenit N2101.2T AA Bipolar Switch:
- 1 Module
- Rated voltage 110-250VAC
- Rated current 16AX
- Rated iLED power (230/127 Vac): 200/100W
- Screw terminals
- Color Anthracite
- Illuminable
LED localization lamp accessory N2194 BB (2CLA219400N1201) - N21941 BB - N2194.2 BB.
Abb Zenit Unipolar Button N2104.7T AA:
- 1 Module
- Without symbols
- Rated voltage 110-250Vac
- Rated current 16AX
- Rated iLED power (230/127 Vac): 200/100W
- Screw terminals
- Color Anthracite
- Illuminable
LED lamp localization accessory N2194 BB (2CLA219400N1201) - N21941 BB - N2194.2 BB.
German Schuko and Bipass socket Abb Zenit type N2233 AN:
- 2 Modules
- Color Anthracite
- Rated Current 10/16A
- Rated Voltage 250 Vac
- Type F+L: 2 Poles + E / P30/17
- With shutter for child safety
- Screw terminals
Abb Zenit type N2133 AN Italian two-pin socket:
- Rated Current 10/16A
- 1 Module
- Color Anthracite
- Voltage Nominal 250 Vac
- Type L: 2 Poles + E / P17/11
- With shutter for child safety
- Screw terminals.
TV Receptacle Terminal Outlet Abb Zenit type N2150.7 AN:
- Type M - 9.52 mm male
- Color Anthracite
- 1 Module
- Single TV outlet
- Blind terminal
- For coaxial cable impedance 75
- Frequency range 5 - 862 Mhz
- Connection loss 0.5 dB
To be applied to supports 2CLA227191Z1001 - 2CLA237391Z1001 - 2CLA247491Z1001 - 2CLA277791Z1001.
Support for Abb Zenit 3-Module plate, for horizontal and vertical installation of devices from 1 to 3 modules:
- To be installed with the plates (code Z2373.1).
- Bracket for box with 83.5mm screw spacing
- Includes 2 screws to secure the bracket
Applied on the flush-mount box to accommodate the inserts/commands and plates of the Abb Zenit series only.
False Pole Cover Abb Zenit Type N2100 AN:
- 1 Module
- Color Anthracite
- Blind for unused spaces.
To be applied to supports 2CLA227191Z1001 - 2CLA237391Z1001 - 2CLA247491Z1001 - 2CLA277791Z1001.
Abb Zenit 3-Module Plate type Z2373.1 BL:
- Material Polycarbonate
- Color White
Features:
- Color: white
- Material: painted polycarbonate
- Dimensions (height x width): 85 x 117mm
- Thickness from wall: 4.2mm
- P.A. plate code for 3M box (screw distance 83.5mm): Z2373.91
- Mounting box codes (flush/surface mounting): 499.3 / N2993
There are no reviews
Data sheet
- KIT: kIt Abb Home Zenit
