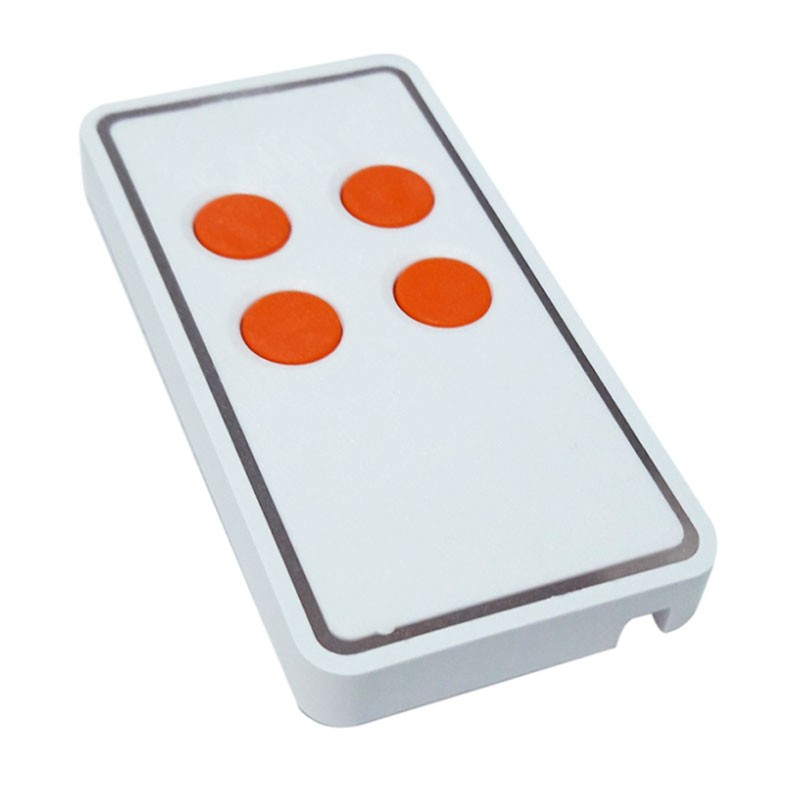

Hiltron bidirectional remote control for Protec8GSM DXR4
C1A DXR4
8056450412865
Dual channel remote control Hiltron for PROTEC4GSM - PROTEC8GSM. Power supply: 3Vdc Lithium Battery model CR2032.
Hiltron bidirectional remote control for Protec8GSM DXR4
€38.65
Tax included
€38.65
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 31
: 12
Pay in installments with Klarna
Frequently bought together
BATTERY REPLACEMENT: Unscrew the screw on the bottom of the remote control to open the container, remove the old battery and insert a new one respecting the polarities indicated on the container. When the battery is inserted, the LED on the remote control should flash: if not, disconnect the battery and wait a few seconds before inserting it again. Check the correct functioning of the two keys before closing the container.
PROGRAMMING: Press both keys for a few seconds, until the LED stays on, then release them. Program the remote control with the system code using the two keys: Left key: to enter "1" - Right key: to enter "0". If you suspend data entry for more than thirty seconds, the LED will blink for a few moments and you will automatically exit the programming phase without modifying the pre-existing code. In case of error, it is possible to interrupt data entry by pressing the two keys simultaneously for a few seconds: the LED flashes for a few seconds and programming is interrupted. When a correct code has been entered, the LED flashes once and the programming phase ends. In case of wrong code (all zero or all one) the LED flashes for a few seconds and exits the programming phase without accepting the code. Keeping a key pressed for a long time the relative command is sent for 15 times, then the remote control waits for the release of the key before allowing a new sending. This function is useful to prevent unnecessary battery consumption in case a key is inadvertently held down.
Features:
- Hiltron Series
- Bi-directional system
- High immunity to RF 30 Vm
- Working frequency 433,92 Mhz multichannel (8 channels) bidirectional
- ABS container
- Working temperature 0°C ÷ +50°C
- Safety grade 1
- Environmental class 2
- Dimensions (WxHxD) (WxHxD) 44x59x10mm
- Complies with CEI EN 50131-1 standard
Troppo caro. Prodotto potrebbe costare molto meno visto la fragilita,e la scomodità nel portarselo dietro. Tasti senza protezione.batterie durano poco.
Come tutti i prodotti della HILTRON anche questo buon prodotto.un mio parere potrebbe essere migliorato con una custodia oppure con una slitta che copre i pulsanti.
Data sheet
- Type: Remote controls
