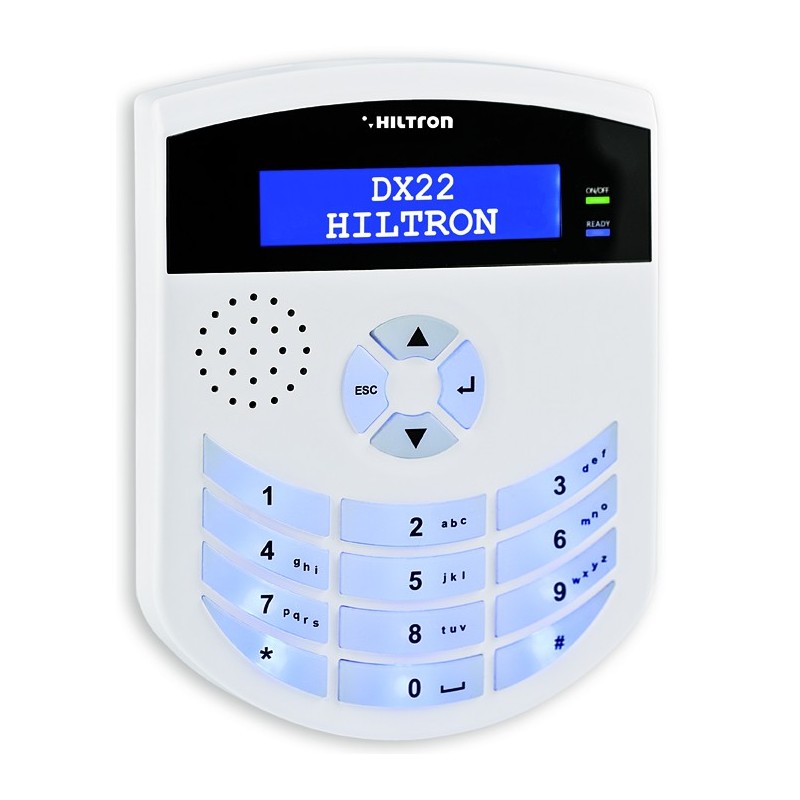

Hiltron control keyboard Backlit display RS 485 DX22
C1A DX22
Hiltron RS485 DX keyboard/console with the following features:
- Backlit alphanumeric LCD display (2x16 characters)
- Tamper protection anti-opening and anti-tear
- White color
- Programmable inputs 1
- Buzzer
- Rated supply voltage 12Vdc ±5%
- Normal absorption 120 mA
- Signaling LED
Hiltron control keyboard Backlit display RS 485 DX22
€112.64
Tax included
€112.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 1
The console remotes the display of the control unit (PROTEC8GSM / TM800GSM), with the ability to execute all commands that are regularly available on the control unit.
Installation:
- Do not install the console in locations that are exposed to extreme temperatures or weather.
- Fix the console at a height that allows easy access to the front panel.
- For a solid and reliable fixing, it is essential to make sure that the support surface is flat.
Other features:
- IP40 enclosure protection degree
- Open collector logic output 30mA max. 1
- ABS outer container
- Safety class 1
- Environmental class 2
- Dimensions (WxHxD) 107x141x25mm
- Conforms to CEI EN 50131-1 standard
There are no reviews
Data sheet
- Type:
- Keyboards
