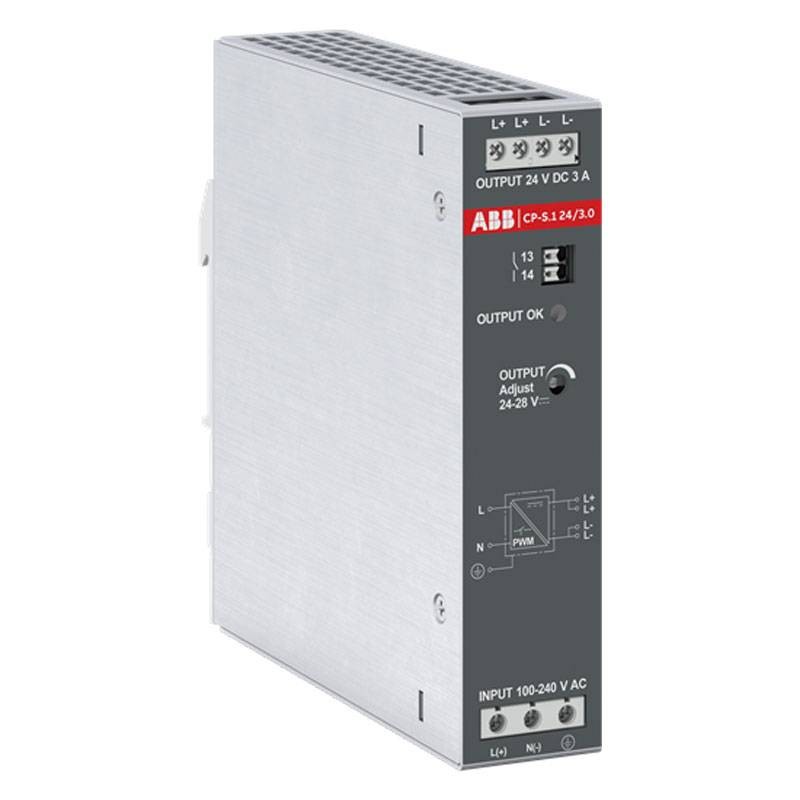

Abb input power supply CP-E24 1F/24VDC 3A72W 1SVR320361R1000
ABB 1SVR320361R1000
4013614561092
Abb input power supply CP-E24 is a power supply from the next generation CP-S.1 range. The primary switch-mode power supply offers a wide input range of 85-264V AC and 90-277V DC, the rated input voltage is 100-240V AC, respectively 100-250V DC.
The rated output power is 72 W, the rated output current is 3 A with an output voltage of 24 V DC.
The output voltage is adjustable in the range of 24 to 28 V DC.
Abb input power supply CP-E24 1F/24VDC 3A72W 1SVR320361R1000
€125.13
Tax included
€125.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 4
The power supply provides a U/I output characteristic with a power reserve of up to 150% for 5 s and allows parallel operation to increase capacity and enable redundancy. The redundancy unit and buffer modules are available as accessories.
Features:
- Dimensions: Product width: 30.5 mm - Product height: 129.4 mm - Product depth: 127 mm
- Product net weight: 0.55 kilograms
- Function: Switching power supply
- Number of phases: 1
- Rated input voltage (UIN):100 ... 240 V AC 100 ... 250 V DC
- Input voltage (Uin):85 ... 264 V AC 90 ... 277 V DC
- Typical input current: (115 V AC) 1.38 A (230 V AC) 0.95 A
- Standby time: (230 V AC) min. 20 ms
- Rated frequency (f): 50 Hz 60 Hz DC
- Rated frequency: 45...65 Hz
- Output characteristic: U/I characteristic curve with power reserve
- Rated output power: 72 W
- Output power: 72 W
- Rated output voltage: 24 V DC
- Output voltage (Uout): 24 VDC
- Output current: 3A
- Maximum output current (Iout): 4.5A
- Degree of protection: IP20 housing
- Terminals IP20
