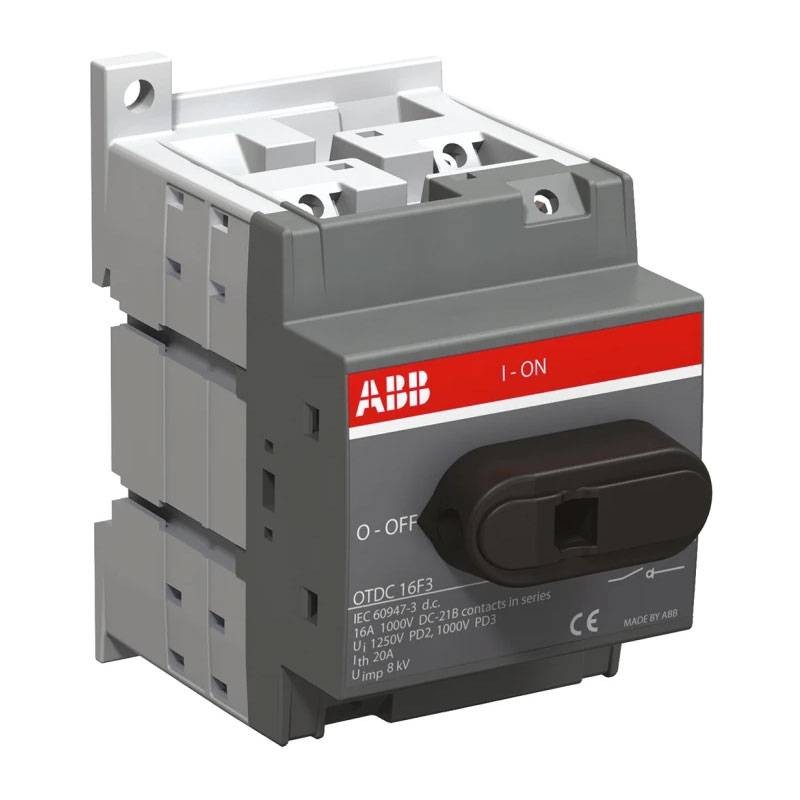

Abb Switch Disconnector 25A 3 Poles 1000VDC 3 Modules OTDC25F3
ABB OTDC25F3
6417019526133
Abb 25-amp, 3-pole, 1000VDC voltage 3-module switch disconnector.
Designed specifically for DC applications. With the compact design, efficiency and reliability of the OTDC range, PV systems reach a new level of development.
Abb Switch Disconnector 25A 3 Poles 1000VDC 3 Modules OTDC25F3
€123.47
Tax included
€123.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 72
Pay in installments with Klarna
Features:
- Product width: 52.5 mm - Product height: 89 mm - Product depth: 77.6 mm
- Product net weight: 0.2 kg
- Rated operating current DC-21B (Ie):(1000 V) 25 A
- Conventional thermal current (Ithe):Fully Closed 32 A
- Impulse withstand voltage (Uimp): 8 kV
- Rated insulation voltage (Ui): 1000 V
- Rated operating voltage:1000 V
- Rated closing power on short circuit (Icm):(1000 V DC) 0.8 kA
- Power loss: at Rated Operating Conditions per pole 0.3W
- Pollution Degree: 3
- Handle Color: Black
- Handle Type: Knob
- Positive opening operation torque (direct opening operation): 0.4 0.8 N-m
- Shaft Diameter: 6mm
- Operation Mode: Front operation
- Mounting Type: Base mounting, DIN-rail mounting
- Number of Circuits: 1
- Number of Poles: 3
- Cable cross section: 2.5 ... 16 mm²
- Degree of protection: In front IP20
There are no reviews
Data sheet
- Voltage: 1000V
- Modules: 3
- Poles: 3P
- Degree of protection: IP20
- Amps: 25A
- Circuit Protections: Disconnectors
- Operating voltage: DC
