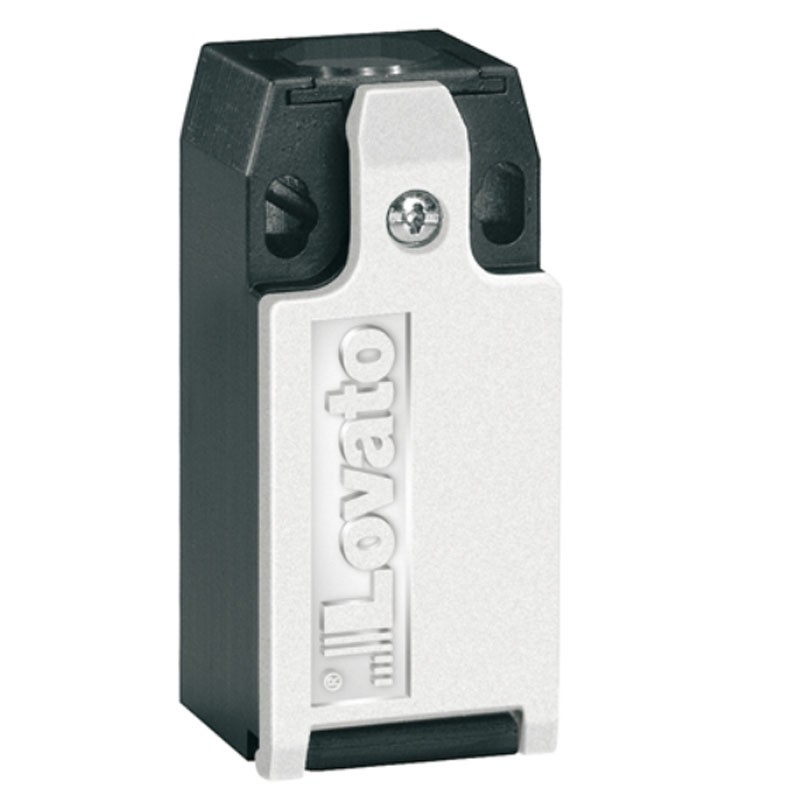

Lovato housing with 1NA+1NC plastic contacts KXCBS11
LOV KXCBS11
8013975113035
Lovato Housing with contact block, with the following characteristics:
- Material: thermoplastic polymer housing
- Contact type: 1NO+1NC Snap action
- Ith thermal current: UN 10
- IEC/EN 60947-5-1 designation: A600 Q300
- Rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Insulation class II
- Short-circuit protection with fuse: Class A RAPID FUSE 10 gG/SC
Lovato housing with 1NA+1NC plastic contacts KXCBS11
€9.59
Tax included
€9.59
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 47
: 14
Pay in installments with Klarna
Other technical characteristics:
- IEC Conventional free air thermal current Ith: UN 10
- Resistance per pole (average value): mΩ <10
- Conductivity: 10 mA 5V
- Operating head fixing: bayonet locking insert
- Cable connection: self-locking screw terminal
- Cable entry: M20 down
- Mechanical life: cycles >10000000
- Operating temperature: -25/+70°C
- Storage temperature: -40/+70
- IP degree of protection: terminals IP20 - body housing IP65
- Pollution degree: 3
There are no reviews
Data sheet
- Type: Accessories
