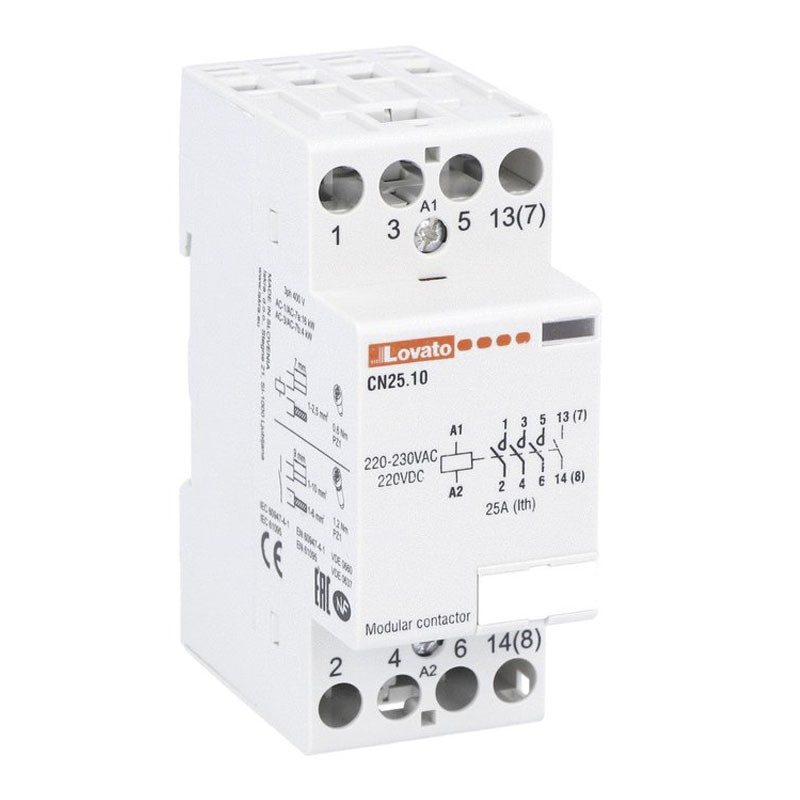

Lovato modular contactor 25A AC1 4NA 230VAC 2 modules CN2510220
LOV CN2510220
8013975143773
Lovato modular contactor, with the following characteristics:
- Type of operating voltage: AC/DC
- Number of poles: 4
- Number of DIN modules: 2
- Conventional thermal free air current Ith IEC: 25A
- Operating current in AC1 and AC-7a =400V: 25A
- Usage current in AC3 and AC-7b =400V: 8.5A
- IEC/EN rated insulation voltage: 440V
- Rated impulse withstand voltage (Uimp): Kv 4
- Minimum switching capacity: =17V =50mA
- Power dissipation per pole (average values) Ith 2W
- Rated auxiliary supply voltage Us: 220VAC/VDC
- Auxiliary contacts: 4
Lovato modular contactor 25A AC1 4NA 230VAC 2 modules CN2510220
€28.91
Tax included
€28.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 4
Pay in installments with Klarna
Other technical features:
- Mechanical life cycles: 3000000
- Electrical service life AC3: 500000 cycles
- Electrical service life AC1: 200000 cycles
- Operating temperature: -25/+70°C
- Storage temperature: -30/+80°C
- Maximum altitude: m 2000
- Fixing: 35mm DIN rail
- Tool attachments: PZ2
- Weight: 260 grams
- Front IP degree of protection: IP20
- Pollution degree: 3
