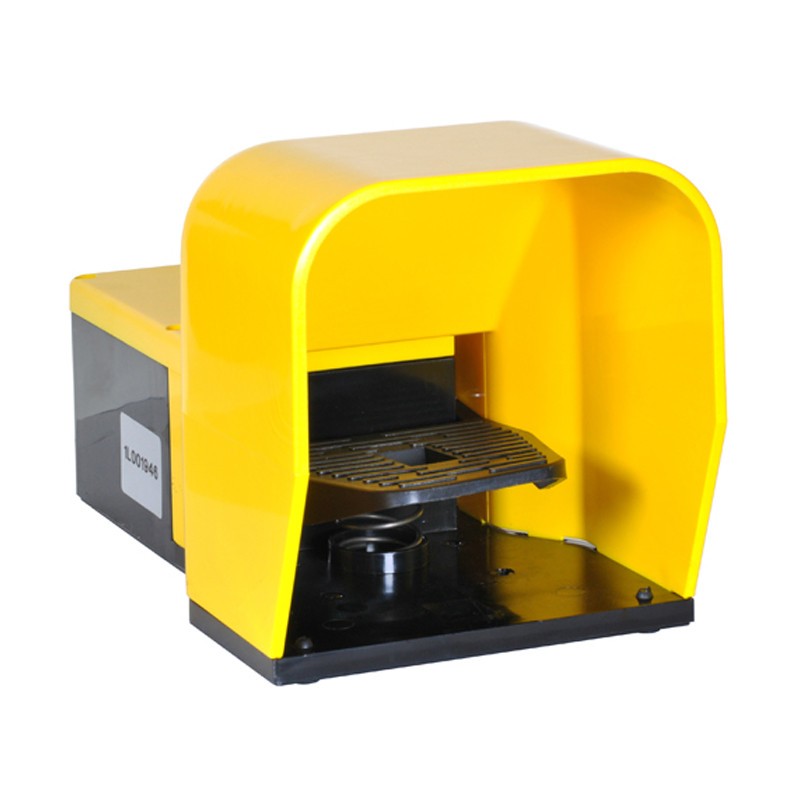

Footswitch Lovato plastic housing 1NO+1NC KG200S11
LOV KG200S11
8013975125939
Lovato foot switch with the following features:
- Free operating, with cover
- Material/Handling: self-extinguishing thermoplastic polymer with double insulation
- Contact type: 1NO+1NC, snap action
- Thermal current Ith UN 10
- IEC / EN 60947-5-1 designation: A600 Q600
- Rated insulation voltage Ui IN: 690
- Rated impulse withstand voltage Uimp: kV 6
- Insulation class II
Footswitch Lovato plastic housing 1NO+1NC KG200S11
€42.86
Tax included
€42.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
: 5
Pay in installments with Klarna
Other Features:
- Short-circuit protection with Class A fuse: 10 gG fuse.
- IEC Conventional free air thermal current Ith: UN 10
- Resistance per pole (average value): mΩ <10
- Tightening torque (max)-Contact terminals: Nm 1, lbin 0.74 lbft
- Cable connection: Self-locking screw terminal
- Cable entry: 1 x M20
- Mechanical life: cycles >10000000
- Operating temperature: min °C -25 - max °C +70
- Storage temperature: min °C -40 - max °C +70
- IP degree: Terminals IP20, Body housing IP54
- Pollution degree: 3
There are no reviews
Data sheet
- Type: Accessories
