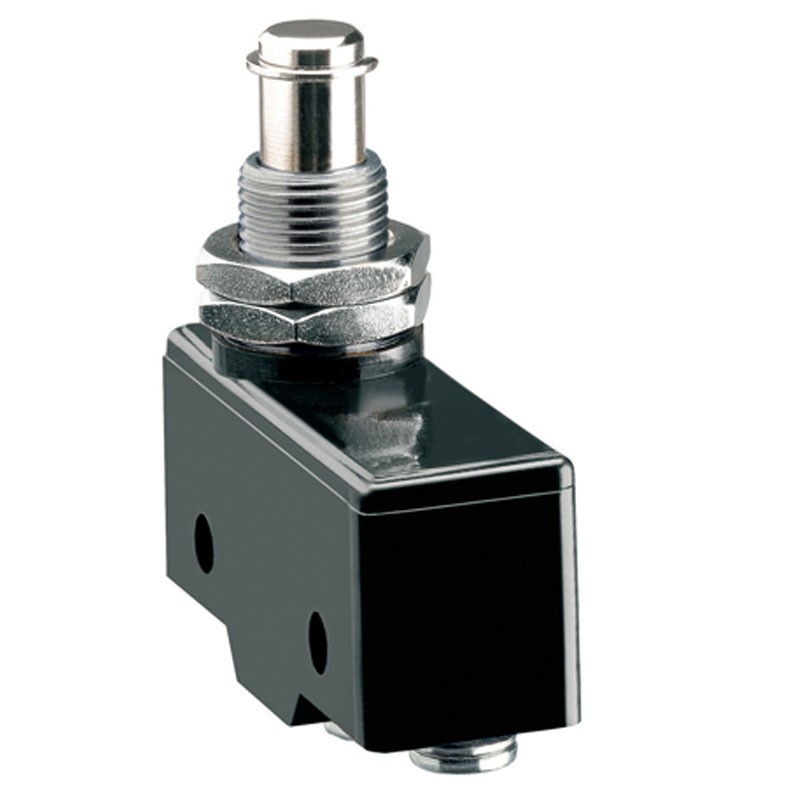

Lovato K series microswitch fixing threaded head 1NA+1NC KSA4V
LOV KSA4V
8013975148235
Lovato K series plastic microswitch with the following characteristics:
- Material: housing: thermoplastic polymer
- Contact type: 1NO/NC
- Thermal current Ith: UN 15
- Rated insulation voltage Ui: 250V
- Switching speed: min SM 0.01, max SM 1
- Operating speed: min SM 0.05, max SM 1
- IEC Conventional free air thermal current Ith: UN 15
- Resistance per pole (average value): Mω <15
- Conductivity: 10 mA 5V
Lovato K series microswitch fixing threaded head 1NA+1NC KSA4V
€7.53
Tax included
€7.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 102
: 5
Pay in installments with Klarna
Other technical features:
- Upper push rod
- Metal plunger
- M12 attachment head
- Type of terminals: screw
- Fixing operating head: fixed
- Operating torque: N 2.5, ozin 9
- Weight: 52 grams
- Mechanical life: cycles 20000000
- Electrical life: cycles 500000
- Mechanical operation: cycles/h 240
- IP grade: body housing (IP00 or IP20 with terminal covers)
- Pollution degree 3
- Operating temperature: min °C -25 - max °C +70
- Storage temperature: min °C -40 - max °C +70
There are no reviews
Data sheet
- Type: Accessories
