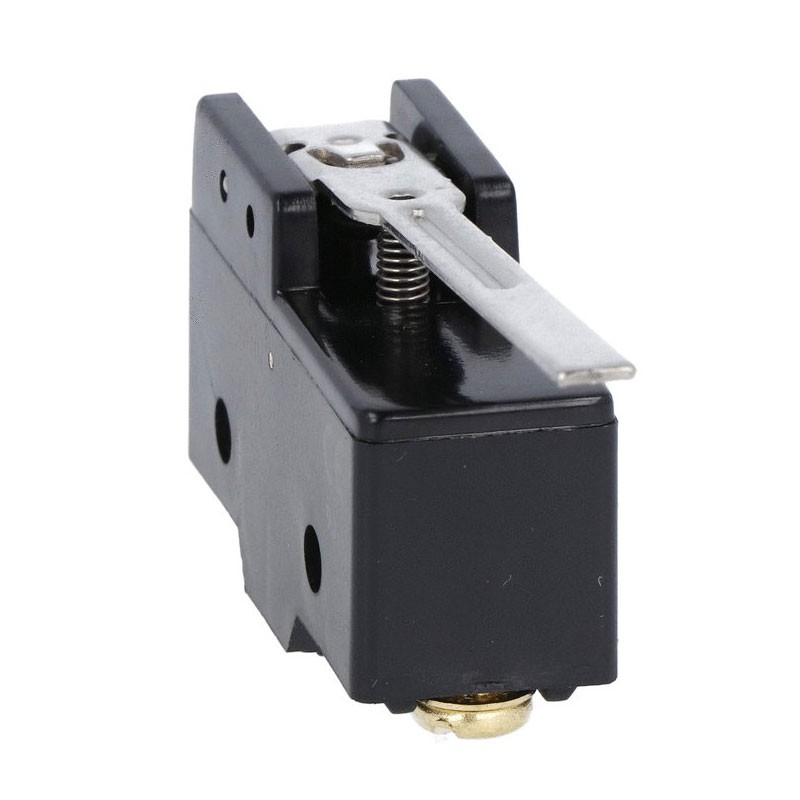

Lovato K-series microswitch with long flat lever 63mm 1NA-NC KSL1V
LOV KSL1V
8013975148273
Lovato K-series plastic microswitch with the following features:
- Housing material: thermoplastic polymer
- Contact type: 1NA/NC
- 63mm long flat lever
- Conventional thermal current Ith: 15A
- Designation according to IEC/EN 60947-5-1: A600 P300
- Rated insulation voltage Ui: 250V
- Switching speed: min m/s 0.01 - max m/s 1
- Actuating speed: min m/s 0.05 - max m/s 1
- Conventional thermal free air current Ith IEC: 15A
- Resistance per pole (average value): m?<15
- Conductivity: 10mA 5V
Lovato K-series microswitch with long flat lever 63mm 1NA-NC KSL1V
€5.57
Tax included
€5.57
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 20
: 29
Pay in installments with Klarna
Other technical features:
- Attachments: screw
- Actuator head fixing: fixed
- Actuating force: N 6.4 - ozin 23
- Weight: 35 grams
- Mechanical life: cycles 20000000
- Electrical endurance: cycles 500000
- Mechanical operation: cycles/hour 240
- Operating temperature: -25/+70°C
- Storage temperature: -40/+70°C
- Degree of protection: IP00 or IP20 housing with terminal protection
- Pollution degree: 3
