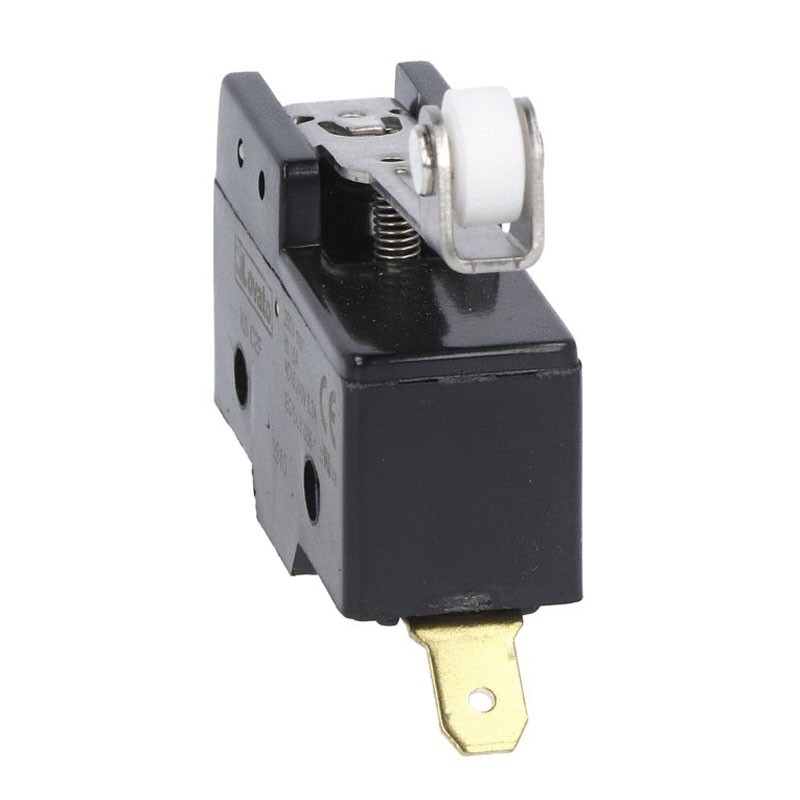

Lovato K-series lever microswitch with roller 48.5mm 1NA-NC KSC2F
LOV KSC2F
8013975148426
Lovato K-series plastic microswitch with roller, with the following features:
- Housing material: thermoplastic polymer
- Contact type: 1NA/NC
- 48.5mm long lever
- Conventional thermal current Ith: 15A
- Designation according to IEC/EN 60947-5-1: A600 P300
- Rated insulation voltage Ui: 250V
- Switching speed: min m/s 0.01 - max m/s 1
- Actuation speed: min m/s 0.05 - max m/s 1
- Conventional thermal free air current Ith IEC: 15A
- Resistance per pole (average value): m?<15
- Conductivity: 10mA 5V
Lovato K-series lever microswitch with roller 48.5mm 1NA-NC KSC2F
€7.06
Tax included
€7.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 4
Pay in installments with Klarna
Other technical features:
- Connections: faston
- Actuator head fixing: fixed
- Actuating force: N 1.3 - ozin 4.7
- Weight: 38 grams
- Mechanical life: cycles 20000000
- Electrical service life: cycles 500000
- Mechanical operation: cycles/hour 240
- Operating temperature: -25/+70°C
- Storage temperature: -40/+70°C
- Degree of protection: IP00 or IP20 housing with terminal protection
- Pollution degree: 3
