Lovato 34-50A 50KA motor saver SM2 SM3 SM2R5000 series
LOV SM2R5000

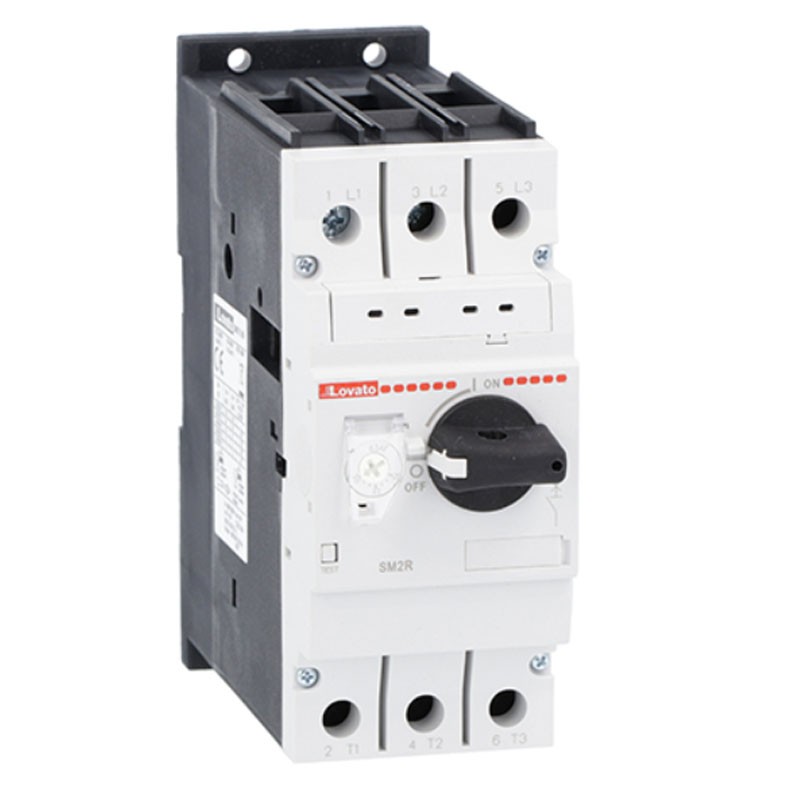

Lovato SM2R motor protection circuit breaker, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: kV 6
- Rated frequency Hz: 50/60
- Thermal trip adjustment range: 34...50
- Rated current (In) UN 50
- IEC breaking capacity Icu 50kA at 400V
- Number of poles: 3
- Magnetic protection: yes
- Thermal protection: yes
- Phase failure detection: yes
- Magnetic trip: 13 x inches
- Trip class: 10A
Lovato 34-50A 50KA motor saver SM2 SM3 SM2R5000 series
€164.12
Tax included
€164.12
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 1
Pay in installments with Klarna
Other technical characteristics:
- IEC-UN usage category
- Mechanical life cycles: 50000
- Electrical life cycles: 25000
- Maximum number of wires that can be connected simultaneously: 2
- Screwdriver: PZ2
- Protection of power terminals according to IEC/EN 60529: IP20
- Wire stripping length: main circuit mm 1
- Operating temperature: min °C -20/max °C+70
- Storage temperature: min °C -50 - max °C+80
- Compensation temperature: min °C -50 - max °C +40
- Maximum altitude: m 3000
- Operating position: normal vertical plane - permissible any
- Fixing: screw-on / 35mm DIN rail
- Weight: 1000 grams
