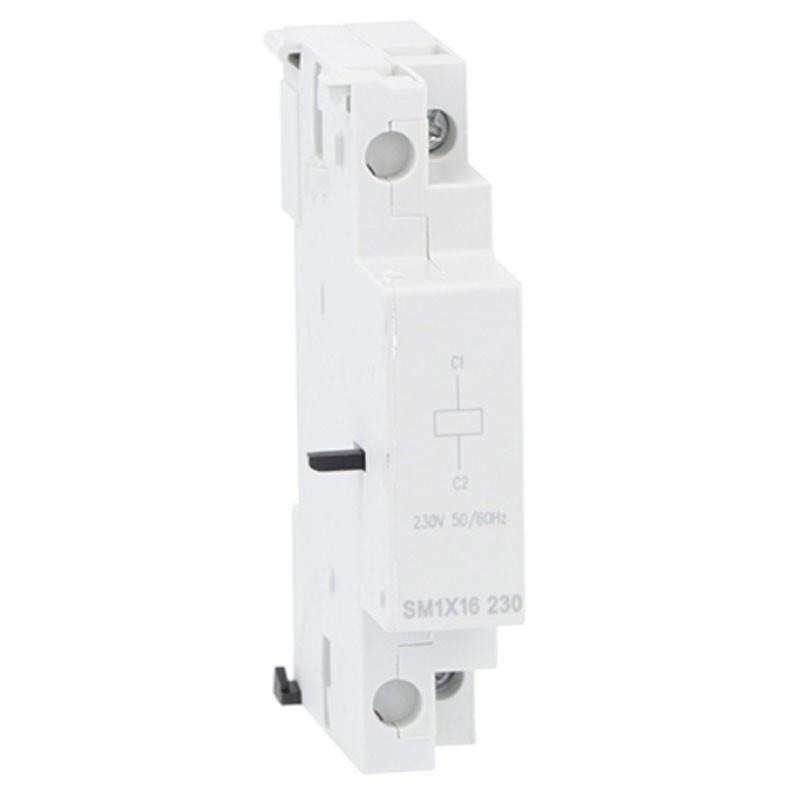

Lovato 230V Shunt trip release SM1X16230
LOV SM1X16230
8013975219164
Lovato Shunt trip release, with the following features:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp : kV 4
- Rated supply voltage AC : VAC 230
- Rated frequency: Hz 50
- Peak consumption: VA 20
- Operating voltage: NOI 70...110
- Operating position: normal vertical, permissible any
- Weight: 140 grams
- Operations: mechanical life cycles 100000
- Operating temperature: -20/+60°C
- Storage temperature: -50/+80°C
- Maximum altitude: m 3000
- IEC degree of protection IP20
Lovato 230V Shunt trip release SM1X16230
€25.45
Tax included
€25.45
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Frequently bought together
Tightening torque for terminals:
- min Nm 1
- max Nm 1
- min Ibin 9
- max Ibin 9
Terminals:
- screw gender
- M3.5 screw
- width mm 7.2
- Ph2 tool
There are no reviews
