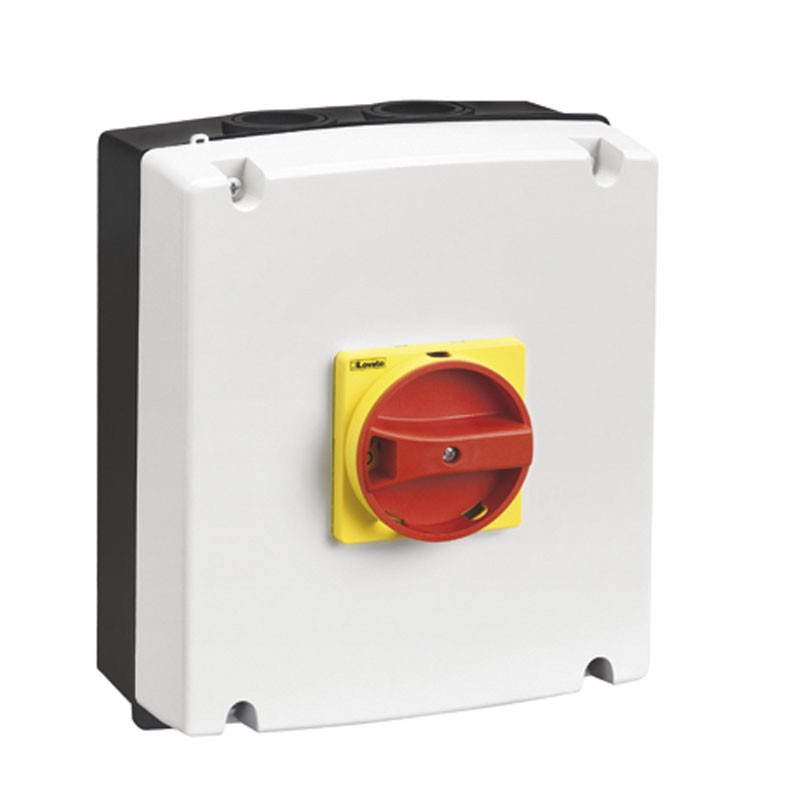

Lovato wall-mounted rotary disconnect switch 4X63A IP65 GAZ063SAT4
LOV GAZ063SAT4
8013975212417
Lovato rotary switch disconnector type GAZ, in IEC/EN-type plastic insulating enclosure, with the following characteristics:
- Number of poles: 4
- Type of operating voltage AC
- Ith IEC conventional free air thermal current: 63A
- IEC/EN rated insulation voltage: 1000V
- With yellow/red handle
- Rated impulse withstand voltage (Uimp): Kv 8
- Power dissipation per pole max 2.9W
- Rated power AC23A: 400V Kw 22 - 690V kW 22
- Conditional short circuit current (rms): kA 10
- Protection against short circuit with fuses: Class/A gG63
- Closing power AC23A 400V: 450A
- Opening power AC23A 400V: 360A
Lovato wall-mounted rotary disconnect switch 4X63A IP65 GAZ063SAT4
€76.67
Tax included
€76.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Other technical features:
- Mechanical life: cycles 100000
- Electrical life AC21A: 15000 cycles
- Mounting position: Normal Vertical plane - Allowed Any
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- Maximum altitude: m 3000
- Front IP degree of protection IP65
- IP degree of protection IP65
- Pollution degree 3
