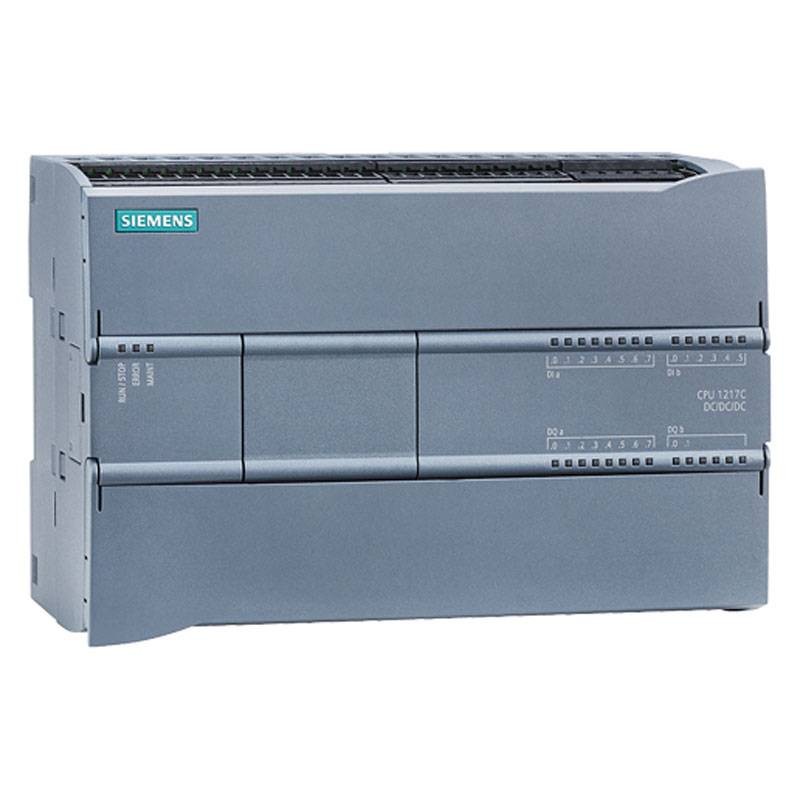

Cpu Siemens SIMATIC S7-1200 1217C 2 Port PROFINET 6ES72171AG400XB0
SIE 6ES72171AG400XB0
4025515082033
Siemens SIMATIC S7-1200 1217C 2-port PROFINET CPU with the following characteristics:
- Nominal value: 24V DC
- Current consumption: 600 mA
- Inrush current: 12A with DC 28.8V
- Power dissipation: 12 watts
- Built-in working memory: 150 kbytes
- Number of outputs: 10
Cpu Siemens SIMATIC S7-1200 1217C 2 Port PROFINET 6ES72171AG400XB0
€1,093.00
Tax included
€1,093.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 18
: 15
Pay in installments with Klarna
SIMATIC S7-1200, CPU 1217C, compact CPU, DC/DC/DC, 2 onboard PROFINET I/O ports: 10 DI DC 24V; 4 DI RS-422/485; 6 DO DC 24V; 0.5A; 4 DO RS422/485; 2 AI 0-10V DC, 2 AO 0-20mA current supply: DC 20.4-28.8V DC, program memory/data memory 150 KB.
Features:
- Allowable range, lower limit (DC) 20.4V
- Allowable range, upper limit (DC) 28.8V
- Number of units per system, max: 3 Communication Module, 1 Signal Board, 8 Signal Module
- Input resistance (0...10V) 100 kOhm
- Number of analog outputs: 2
- 2-wire sensor
- Transmission speed, max: 100 Mbit/s
- Memory capacity per Trace, max: 512 kbytes
- Number of counters: 6
- Dimensions: Height 100 mm - Width 150 mm - Depth 75 mm
There are no reviews
Data sheet
- Type: CPU Central Units
