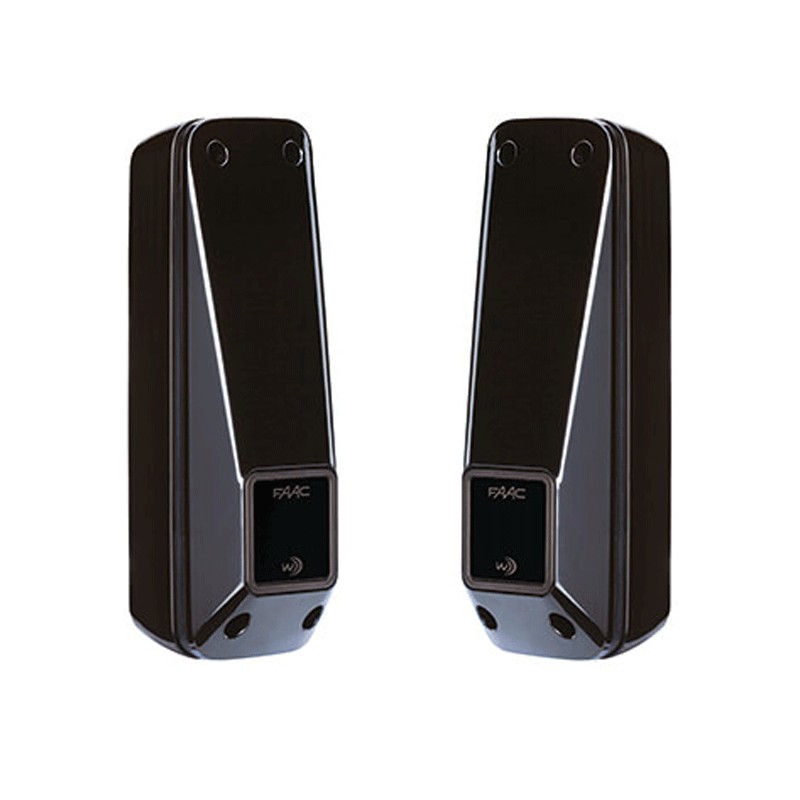

Faac XP20W D wall-mounted adjustable photocells 785104
FAA 785104
8055195012392
Faac XP20W D adjustable photocells:
- Wall mounting
- Maximum photocell distance 20 meters
- Dimensions (WxDxH) 41.5 x 42.5 x 130 mm
Mounting accessories:
- CR2 3V lithium battery for XP 20W D photocells code 105128
- Bollard (max height 628 mm) code 401039
- Double tall column 401043
- Foundation plate for column 737637
Faac XP20W D wall-mounted adjustable photocells 785104
€65.32
Tax included
€65.32
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 34
Pay in installments with Klarna
System with traditional 12/24V power supply of the receiver and traditional or battery power supply of the transmitter. Avoids laying of cable to transmitter (battery) and has selectable channels allowing installation of up to 4 pairs of photocells and protection from interference produced by external light sources (e.g., led headlights of motor vehicles.
Features:
- Supply voltage: Rx:12 ÷ 24V~ 12 ÷ 24 V - Tx: 12 ÷ 24V~ 12 ÷ 24 V or with battery (3 VcR2 not included)
- Self-alignment angle ± 7° (20 m) ± 13.5° (5 m)
- Horizontal orientation angle -90° +90°
- Current consumption Rx (30 mA) + Tx (40 mA on battery or 5 mA at 24V
- Ambient operating temperature -20°C ÷ +55°C
There are no reviews
Data sheet
- Type: Photocells
- Model: External
- Installation: Wall-mounted
