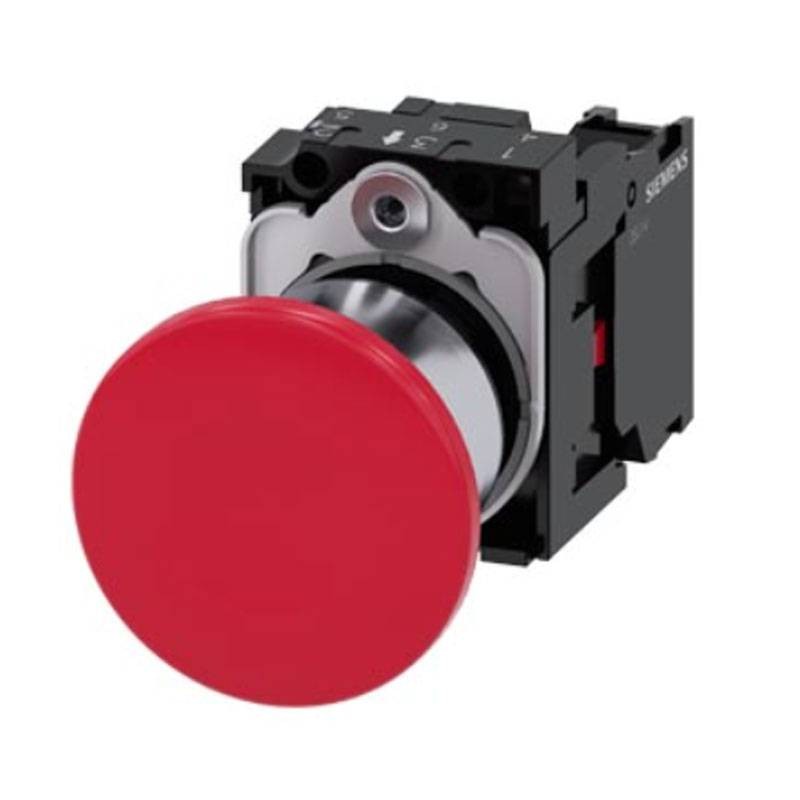

Siemens red mushroom button 40mm 1NC 3SU11501BA201CA0
SIE 3SU11501BA201CA0
4011209956421
Siemens mushroom button, with the following characteristics:
- AC/DC operating voltage type.
- Rated value of overvoltage resistance: 6 kV
- IP protection class IP66, IP67, IP69 (IP69K), of terminal IP20
- Maximum operating frequency 1,800 1/h
- Number of control points: 1
- Stand material: plastic
- Product component light source: NO
- Rated insulation voltage 500V
- Pollution degree 3
- Mechanical life (switching cycles) typical 500 000
- Electrical life (switching cycles) typical 10 000 000
- Thermal current 10A
Siemens red mushroom button 40mm 1NC 3SU11501BA201CA0
€20.74
Tax included
€20.74
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Other technical features:
- Principle of operation of the snap-on drive element
- Optional light source product extension: NO
- Color of the actuating element red
- Material of the actuation element plastic
- Round shape of the actuating element
- Outer diameter of the actuation element 40 mm
- Number of contact modules 1
- Type of release device: (pull-to-unlatch mechanism)
- Number of switching positions 2
- Product component front ring Yes
- Front ring design Standard
- Front ring material: polished metal
- Ring color: silver front ring
- Reference code according to IEC 81346-2P
- Continuous current of feature C MCB 10A; for short-circuit current less than 400A
- Continuous current of DIAZED 10A fast fuse
- DIAZED gG fuse continuous current 10A
- Ambient temperature: during operation -25/+70 °C
- Temperature during storage -40/+80 °C
- Height 40 mm
- Width 40 mm
- Installation opening shape: round
- Installation diameter 22.3 mm
- Positive tolerance of installation diameter 0.4 mm
- Installation height 27.5 mm
- Installation width 40 mm
- Installation depth 49.7 mm
- Tightening torque of screws in the bracket: 1...1.2 Nm
- Tightening torque with screw clamps 0 ...0.9 Nm
