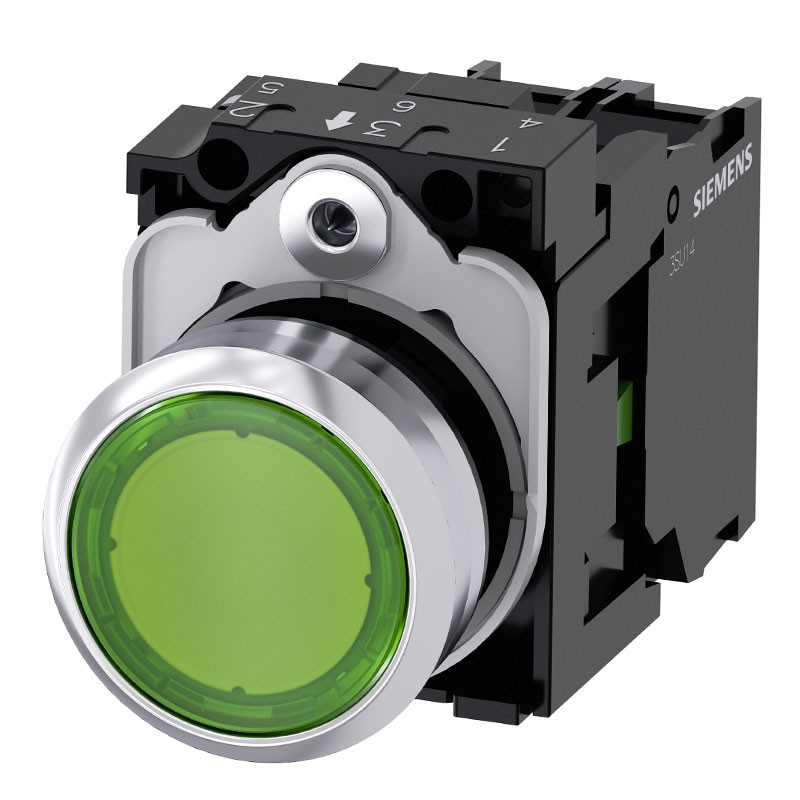

Siemens bright green flat 22mm LED 24V button 3SU11520AB401BA0
SIE 3SU11520AB401BA0
4011209958876
Siemens SIRIUS ACT light switch, with the following characteristics:
- Rated insulation voltage 320 V
- Pollution degree 3
- Voltage type of the operating voltage AC/DC
- Rated value of overvoltage resistance 4 kV
- External diameter of the actuating element 29.45 mm
- Button material: plastic
- Button color: green
- With integrated LED 24V AC/DC
Siemens bright green flat 22mm LED 24V button 3SU11520AB401BA0
€16.17
Tax included
€16.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Other technical features:
- Outer diameter of the actuating element 29.45 mm
- Number of contact modules 1
- Material of front ring: polished metal
- Color of front ring: silver
- Material of the holder: plastic
- IP protection class IP66, IP67, IP69 (IP69K), of terminal IP20
- Fixing/mounting method: front plate
Ambient temperature:
- During operation -25/+70 °C
- During storage -40/+80 °C
Dimensions for installation:
- 40 mm height
- Width 30 mm
- Installation opening shape: round
- Installation diameter: 22.3 mm
- Positive tolerance of installation diameter: 0.4 mm
- Installation height 11 mm
- Installation width 29.5 mm
- Installation depth 49.7 mm
