Weidmüller top cable entry cap 4P for PG11 cables 1652380000
WEI 1652380000
4008190402457
Weidmüller shell type HDC 07A TOLU 1PG11G, with the following characteristics:
- Temperature limit values: -40/+125 °C
- UL 94 flammability class: V-0
- Tightening torque 0.5 Nm
- EMC enclosures: No
- Degree of protection: IP65 (in plugged-in condition)
- Housing base material: plastic
- Cable entry: with thread
- Suitable for ModuPlug®: No
- BG 1
- Color (RAL) RAL 1001
- Tightening torque 0.5 Nm
- Cable entry size PG 11
Weidmüller top cable entry cap 4P for PG11 cables 1652380000
€0.70
Tax included
€0.70
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 71
: 11
Pay in installments with Klarna
Other technical features:
- Cable entry: with threading
- Housing execution: Cable entry from above, Connector housing
- Locking system execution Cross hook at the bottom
- Thread (internal) PG 11
- Standard Shape
- Size 1
- Number of cable entries at the top 1
- Number of side cable entries 0
- Upper part/Lower part/Lid Upper part
- Plug Type
- Hook version: Cross hook
- ROHS Compliant

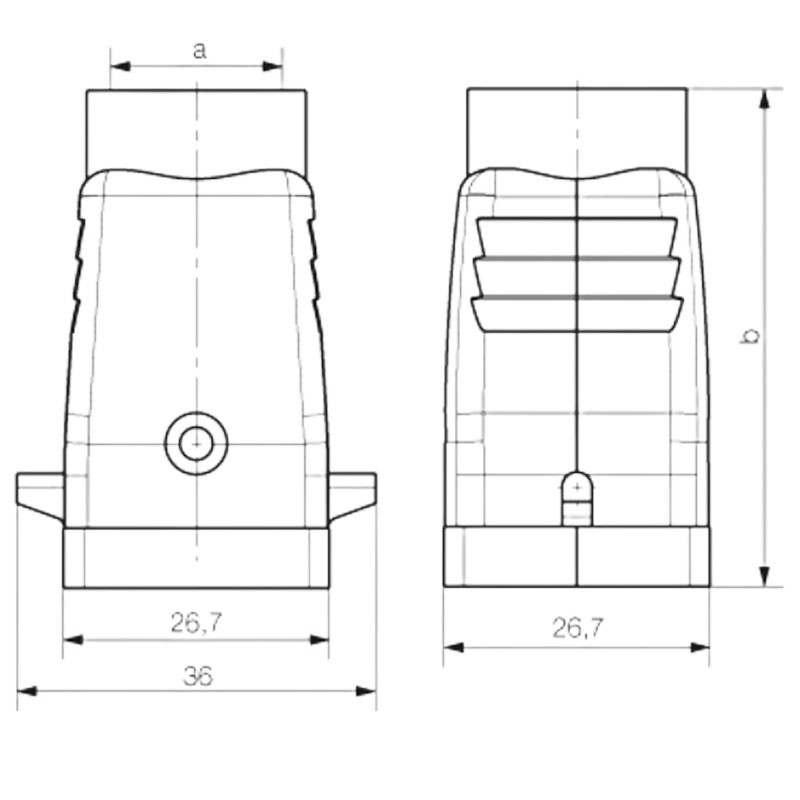

Dimensions and weight:
- Depth 26.8 mm
- Depth (inch) 1.055 inch
- Vertical position 50 mm
- Height (inches) 1.969 inch
- Width 36.5 mm
- Width (inches) 1.437 inch
- Net weight 13 grams
