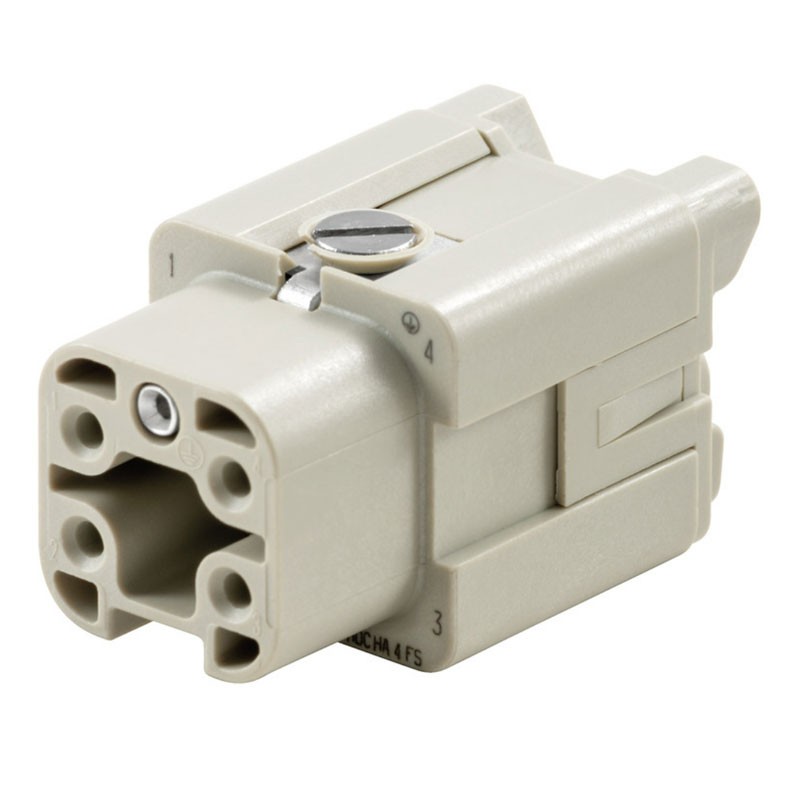

Weidmüller HDC Female Insert Connector 4P+E 16A 400V 1498400000
WEI 1498400000
4008190178741
Weidmüller female connector type HDC HA 4 FS, with the following characteristics:
- Temperature limit values: -40 °C/+125 °C
- BG 1
- Low smoke according to EN 45545-2 Yes
- Flammability class UL 94 V-0
- Max. main contact tightening torque 0.5 Nm
- Sizing current (DIN EN 61984) 16 A
- Halogen-free
- Degree of lubricity 3
- Size 1
- Insulating material group: III
- Material: copper alloy
Weidmüller HDC Female Insert Connector 4P+E 16A 400V 1498400000
€3.30
Tax included
€3.30
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 161
: 3
Pay in installments with Klarna
Other technical features:
- Insulation material: glass-fiber reinforced PC (UL listed and qualified for railway industry)
- Number of poles: 4
- Resistance against insulation: 1010 Ω
- Pass resistance: ≤2 mΩ
- HA Series
- Cable connection cross section: 2.5 mm²
- Surface: silver passivated
- Sizing voltage (DIN EN 61984): 400V
- Sizing voltage according to UL/CSA: 600V AC/DC
- Rated impulse voltage (DIN EN 61984): 4 kV
- Type: Female
- Ag engagement cycles: ≥ 500
- Compliant: ROHS
Dimensions and weights:
- Depth 21 mm
- Depth (inches) 0.827 inch
- Vertical position 36.5 mm
- Height (inches) 1.437 inch
- Width 21 mm
- Width (inches) 0.827 inch
- Net weight: 23 grams
PE connection data:
- Max. tightening torque PE connection 0.5 Nm
- Blade size (shear) (PE connection) SD 0.6 x 3.5
- Stripping length, PE connection 15 mm
- AWG cable connection cross section (PE), max AWG 14
- Cable connection cross section AWG (PE), min AWG 20
- Sizing cross section 2.5 mm²
- PE connection type Screw connection
- M 3 fastening screw
Execution:
- BG 1
- Max. tightening torque main contact 0.5 Nm
- Blade size (shear) (screw connection) SD 0.6 x 3.5
- Size 1
- Stripping length, sizing connection 15 mm
- Material Copper alloy
- Pass resistance ≤2 mΩ
- AWG cable connection cross section, max. AWG 14
- Cable connection cross section AWG, min AWG 20
- Cable connection cross section, flexible, max 2.5 mm²
- Cable connection cross section, flexible, min 0.5 mm²
- Cable connection cross section, max 2.5 mm²
- Cable connection cross section, min. 0.5 mm²
- Cable connection cross section, rigid, max. 2.5 mm²
- Cable connection cross section, rigid, min. 0.5 mm²
- Surface silver passivated
- Type of connection Screw connection
- M 3 clamping screw
