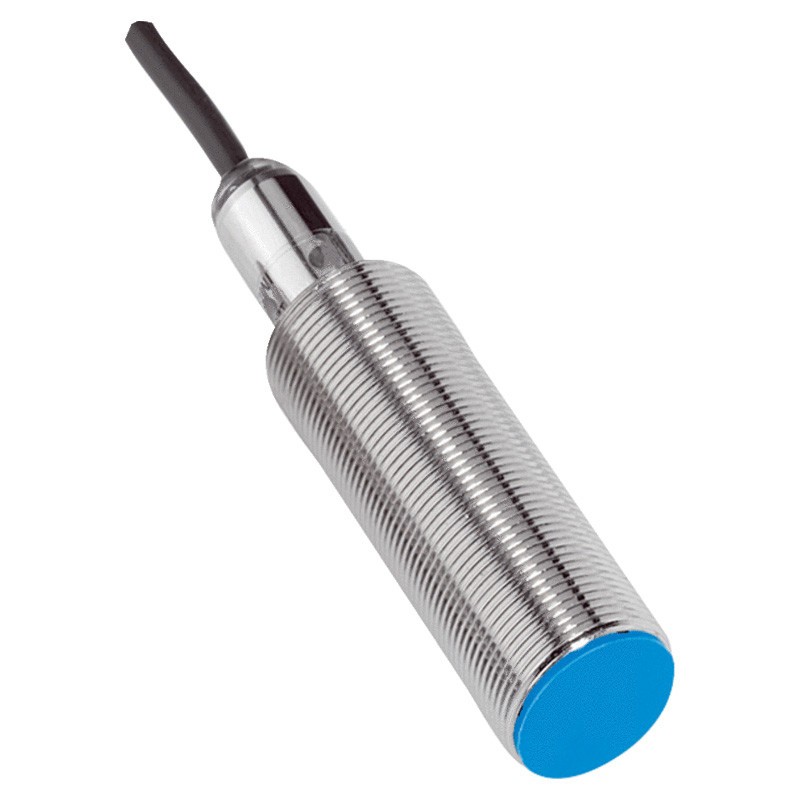

Sick IME18 inductive proximity sensor with cable 1040968
SIK 1040968
Sick IME 18 inductive proximity sensor with the following features:
- Supply voltage: 10 V DC ... 30 V DC
- Ripple ≤ 10 %
- Voltage drop ≤ 2V
- Availability delay ≤ 100 ms
- Hysteresis 5 % ... 15 %
- Reproducibility ≤ 2 %
- Thermal drift (d Sr) ± 10 %
- EMC according to EN 60947-5-2
- Continuous current IA ≤ 200 Ma
- No load current: ≤ 10 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: Ø 3.9 mm
- Short-circuit protection: YES
- Reverse polarity protection: YES
- Trigger pulse protection: YES
Sick IME18 inductive proximity sensor with cable 1040968
€26.90
Tax included
€26.90
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 3
Other technical characteristics:
- Vibration and shock resistance: 30 g, 11 ms/10 Hz...55 Hz, 1 mm
- Ambient operating temperature: -25 °C/+75 °C
- Housing material: Brass, nickel-plated
- Material, active surface: Plastic, PA 66
- Housing: Cylindrical thread design
- Housing: Standard design
- Thread size: M18x1
- Diameter Ø 18mm
- Scope Sn 8mm
- Safe sensing range Sa 6.48mm
- Installation type: Flush
- Switching frequency: 1,000hz
- Connection type: Cable, 3 wires, 2m
- Switching output: PNP
- Output function: NO
- Electrical wiring: DC 3-wire
- Housing rating: IP67
