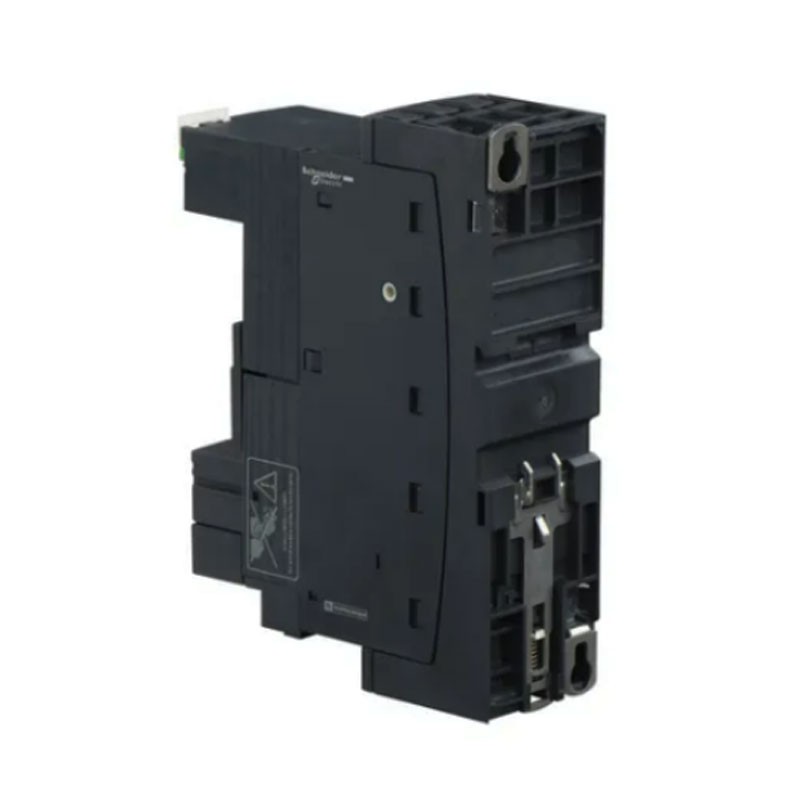

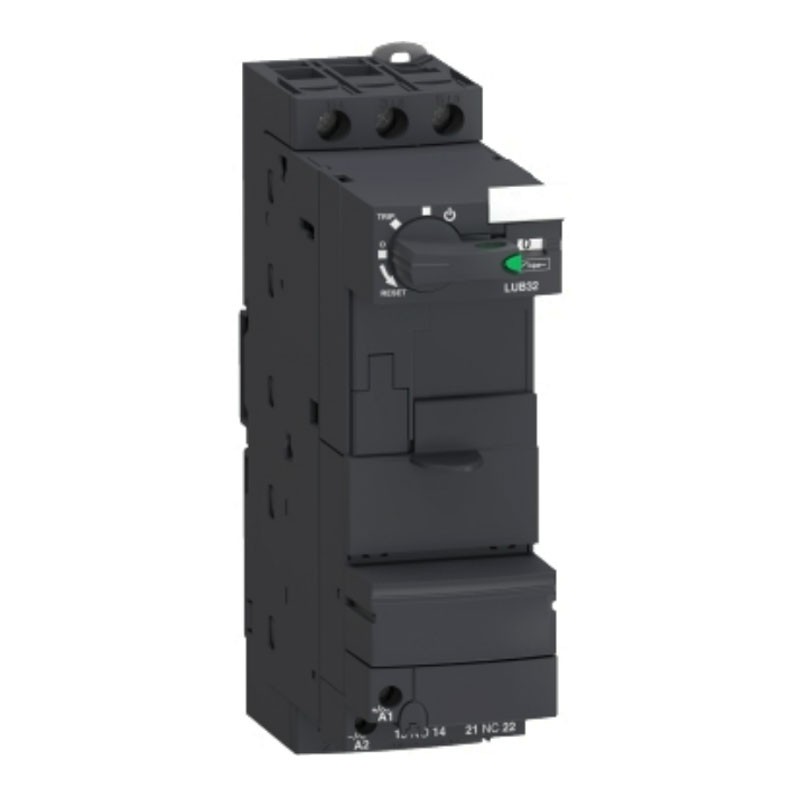

Telemecanique 32A one-way power base LUB32

Brand: Schneider

Cod: SNR LUB32 EAN: 3389110362787

Schneider Telemecanique 1-way power base with the following characteristics:

Rated operating voltage [Ue]: 690V "AC" per power circuit
Rated impulse withstand voltage [Uimp]: 6 kV complying with IEC 60947-6-2
Mains frequency: 40...60 Hz
Conventional thermal current in air [Ith]: 32 amps
Auxiliary contact composition: 1 NO + 1 NC
Auxiliary contact type: Linked contact type (1 NO + 1 NC) according to IEC 60947-4-1, mirror contact type (1 NC) according to IEC 60947-1
Mounting type: Snap-on (DIN rail), screw-mounted (plate)
Mechanical endurance 15 Mccycles
Maximum operating speed 3600 cycles/h
Poles: 3P
Insulation capability: YES

€88.98 Tax included

€88.98

€88.98
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 9

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Other technical features:

Protection treatment: TH in accordance with IEC 60068
Operating ambient temperature: -25/+60 °C with LUCM, -25/+70 °C with LUCA, LUCB, LUCC, LUCD
Storage temperature: -40/+85 °C
Immunity to radioelectric fields: 10V in accordance with IEC 61000-4-6
Immunity to micro interruptions: 3 ms per control circuit
Immunity to voltage spikes: 70 % / 500 ms in accordance with IEC 61000-4-11
Resistance to radiated fields: 10 V/m 3 complying with IEC 61000-4-3

Dimensions and weight:

IP rating:

Safe circuit separation:

400V SELV between auxiliary and control circuits complies with IEC 60947-1 appendix N
400V SELV between auxiliary or control circuit and main circuit complies with IEC 60947-1 appendix N
