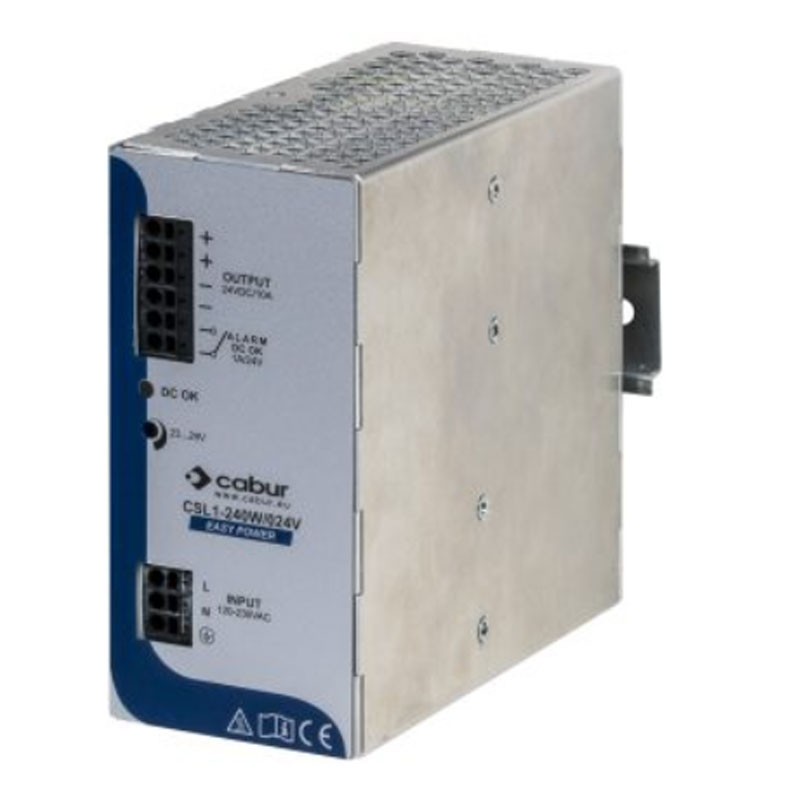

Cabur Power Supply 10A 1 phase 24VDC 240W XCSL1240W024VAA
CBR XCSL1240W024VAA
8017963227285
Cabur Easy Power switching power supply, with the following characteristics:
- Input voltage (Vac): 90 - 264 Vac
- Output voltage (V) 24 Vdc
- Output current10A
- Overload limit current (A): 14A for >30 s with Uout > 90% Un
- Peak short-circuit current: >24 A for 400 ms
- Efficiency: >87% / >90%.
- Mounting: vertical on rail, spacing 10 mm from adjacent components
Cabur Power Supply 10A 1 phase 24VDC 240W XCSL1240W024VAA
€119.69
Tax included
€119.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 44
: 16
Pay in installments with Klarna
Input Technical Data:
- Rated input voltage 120230 Vac (range 90132 Vac / 185264 Vac)
- Frequency 47...63 Hz
- Current with nominal out (Uin 120 / 230 Vac) 3.5A / 1.8 A ± 10%
- Peak current at power-on < 35 A
- Power factor > 0.6 / >0.85
- Internal protection fuse T 6.3 A replaceable
- External protection on AC line magneto-thermal switch: 10 A curve C - fuses: T 10 A.
Output Technical Data:
- Rated output voltage 24 Vdc
- Output regulation 23...27.5 Vdc
- Rated permanent current 10 A @ 45°C (3)
- Overload limit current 15 A for >30 s with Uout > 90% Un (4)
- Peak short-circuit current >25 A for 400 ms
- Load regulation < 1%
- Ripple at rated data 50 mVpp
- Hold up time (Uin 120 / 230 Vac) >30 ms / >60 ms
- Short circuit / overload protection hiccup to limit current with automatic reset / thermal protection
- Status signals green LED "DC OK"
- Parallel power connection possible
- Redundant parallel connection possible with external ORing diode.
Features:
- Efficiency (Uin 120 / 230 Vac) >88% / >90%.
- Power dissipation (Uin 120 / 230 Vac) 32 W / 27 W
- Ambient temperature -20...+60°C, with derating over 45°C / thermal protection (3)
- Isolation Input/Output 3 kVac / 60 s SELV output
- Isolation Input/PE 1.5 kVac / 60 s
- Isolation Output/PE 0.5 kVac / 60 s
- Safety Standards EN50178, EN61558, EN60950, IEC950, UL508
- Electromagnetic compatibility EN61000-6-2, EN61000-6-4, EN61000-4-2, EN61000-4-3,EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11
- MTBF @ 25°C and rated data >400'000 h according to SN 29500 / >100'000 h according to MIL Std. HDBK 217F
- Overvoltage category / pollution degree II
- Degree of protection IP 20 IEC 529, EN60529
- Connection type screw terminals 2.5 mm² removable
- Enclosure material aluminum and stainless steel
- Approximate weight 920 g
- Vertical rail mounting, spacing 10 mm from adjacent components.
