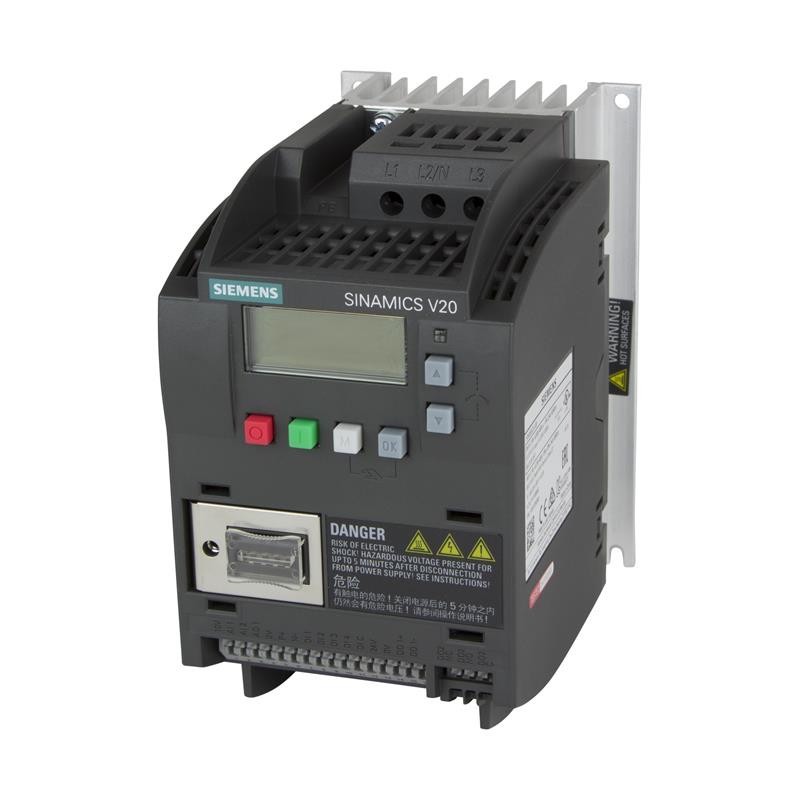

Siemens SINAMICS V20 Frequency Converter 0.75KW 6SL32105BE175CV0
SIE 6SL32105BE175CV0
Siemens SINAMICS V20 frequency converter, with the following characteristics:
- Input=mains voltage: 380 ... 480 V -15 % +10 %
- Output=rated voltage 400V IEC, 480V NEC
- Rated power: 0.75 Kw
- Number of phases: 3 AC
- Mains frequency: 47 to 63 Hz
- Output pulse frequency: 4.00 kHz
- Output frequency: 0 to 550 Hz
- Power factor: λ 0.72
- Phase shift factor: cos φ 0.95
- Efficiency: η 0.98
- Filter class (built-in): class A
- Communication: USS, Modbus RTU
- Standard digital inputs: 4
- Digital outputs: number of relays with changeover contacts 1, number as transistors 1
Siemens SINAMICS V20 Frequency Converter 0.75KW 6SL32105BE175CV0
€799.71
Tax included
€799.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Other technical features:
- Analog inputs: 2 (Can be used as an additional digital input)
- Analog outputs: 1
- Efficiency class IE2
- Comparison with reference converter (90% / 100%) 24.3 %
- Installation altitude 1,000 m
- Operating temperature: -10/+60°C
- Storage temperature: -40/+70°C
- Relative humidity: 95%
- Cooling: convection cooling
- Max motor cable length: shielded 10m, unshielded 50m
- Mounting location: wall mounting/side-by-side mounting
- Degree of protection: IP20
- Construction size: FSA
- Net weight: 1kg
- Dimensions: width 90mm, height 150mm, depth 145.5mm
- Compliance with standards: CE, cULus, C-Tick (RCM), KC
- CE marking EN 61800-5-1 /EN 60204-1 and EN 61800- 3
Overload capacity:
- Low overload (LO) 110 % rated output current for 60 s, cycle time 300s
- High overload (HO) 150 % rated output current for 60 s, cycle time 300s
There are no reviews
