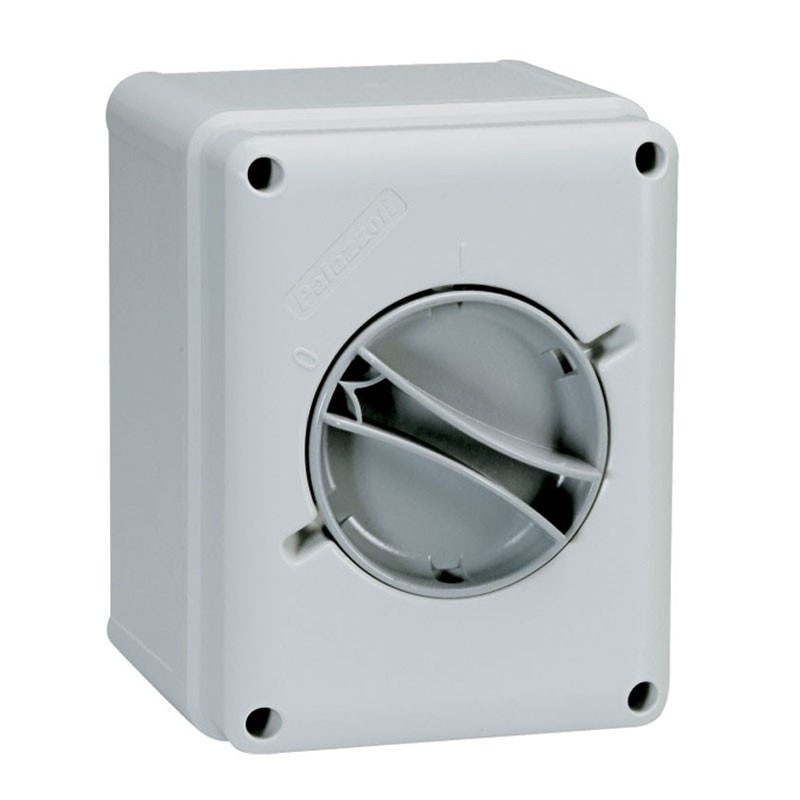

Palazzoli Wall-mounted Disconnector 3X16A IP65 209163

Palazzoli
Palazzoli
PAL 209163 8014950015023

Palazzoli rotary switch/disconnector, with the following characteristics:



  • Rated insulation voltage 690V
  • Rated voltage 690V
  • Rated impulse withstand voltage 4 kV
  • Rated current 16A
  • Frequency 50/60Hz
  • Degree of protection IP65
  • 3P poles
  • Body material: thermoplastic
  • Width 121 mm
  • Design: wall-mounted
  • Insulation class II

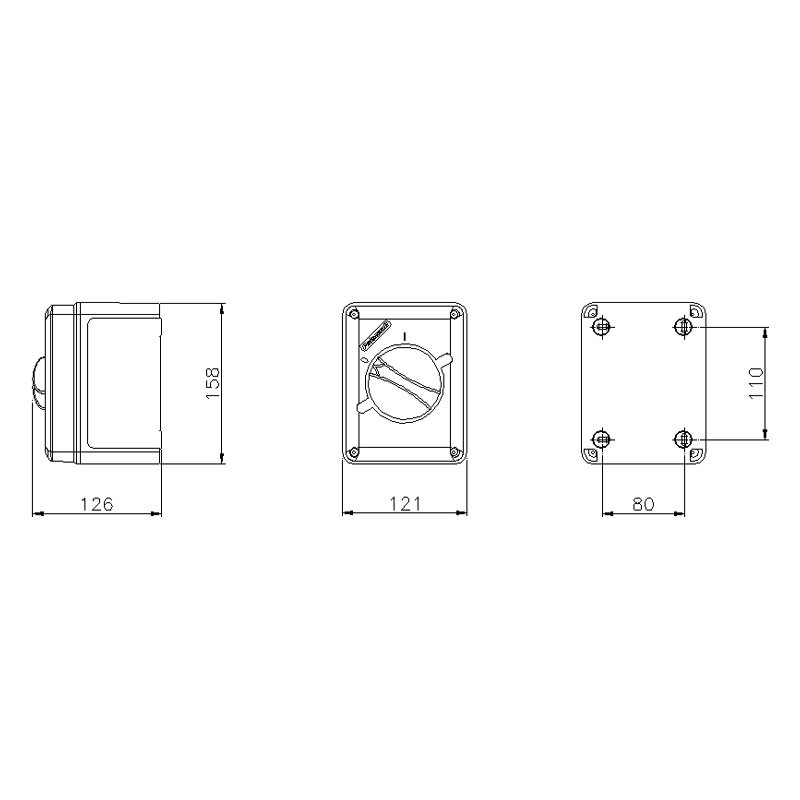

  • Dimensions 158X121X126 mm

Request info about this product

Palazzoli Wall-mounted Disconnector 3X16A IP65 209163

€33.70 Tax included
€33.70

Palazzoli Wall-mounted Disconnector 3X16A IP65 209163

€33.70
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 12
Altre disponibilità dal produttore
qty

Palazzoli Wall-mounted Disconnector 3X16A IP65 209163

€33.70

Calculate shipping cost
Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • With black handle/grey tag in insulated box
  • CAM pattern 1
  • Net weight: 0.57 kg
  • Color: gray RAL 7035
  • Ambient storage temperature: -40/+80°C
  • Minimum ambient temperature: -25/+60°C
  • Max conductor cross-section: 10mm2
  • Type of terminals: screw terminals: indirect clamping
  • Impact resistance: IK08 according to IEC/EN 62262
