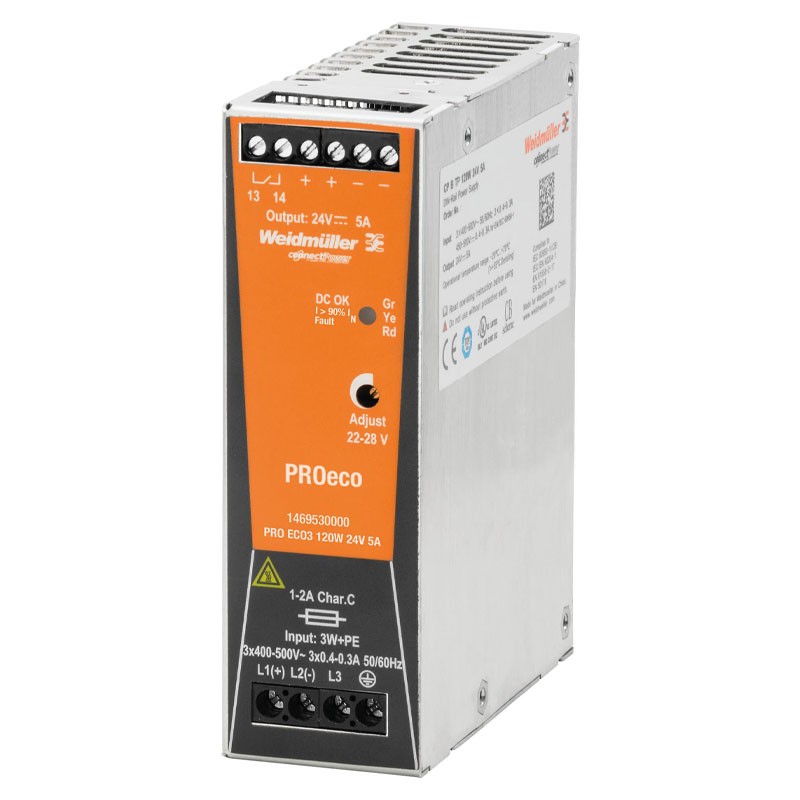

Weidmuller PRO ECO switching power supply 120W 24VDC 5A 1469530000
WEI 1469530000
4050118275735
Weidmuller PRO ECO switching power supply, with the following features:
- Input/output isolation voltage 3 kV
- Contact load (NO contact) max 30V DC / 1A
- Equipotential contact: Yes
- Storage temperature: -40 °C/+85 °C
- Operating temperature: -25 °C/+70 °C
- Earth leakage current, max: 3.5 mA
Weidmuller PRO ECO switching power supply 120W 24VDC 5A 1469530000
€65.76
Tax included
€65.76
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 93
: 25
Other technical features:
- Protection class I, with PE connection
- Degree of protection 2
- Relay ON/OFF Output voltage >21.6 V DC/ <20.4 V DC, overload
- Noise emission according to EN55032: Class B
- Limitation of harmonic currents : According to EN 61000-3-2
- Shock resistance IEC 60068-2-27: 15 g in all directions
- Vibration resistance IEC 60068-2-6: 1 g according to EN50178
Input:
- AC current consumption 0.3 A at 3 x 500 V AC / 0.4 A at 3 x 400 V AC
- DC current consumption 0.2 A at 800 V DC / 0.4 A at 450 V DC
- AC input voltage range 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
- Frequency range AC 47...63 Hz
- Input voltage range DC 450...800 V DC (max. 500 V DC acc. to UL508)
- Peak current max. 40 A
- Input frequency 47...63 Hz
- Input fuse (internal) Yes
- Rated Power Consumption 137.9 VA
- Recommended pre-fuse: 2 A / DI, fuse - 2...3 A, car. C, circuit breaker
- Input surge protection: Varistor
- Connection technology: Screw connection
Output:
- Capacitive load: Unlimited
- Nominal output current for Unom. 5 A at 55 °C
- Residual ripple, interruption peaks < 50 mVPP @ 24 V DC, IN
- Parallelability yes, max. 5
- Output power 120W
- Overload protection: Yes
- Reverse voltage protection: Yes
- Connection technology: screw connection
- Rise time ≤ 100 ms
- Output voltage observations: (adjustable with potentiometer)
- Output voltage, max. 28V
- Output voltage, min. 22V
- Nominal output voltage 24 V DC ± 1 %.
Dimensions and weight:
- Depth 100 mm
- Depth (inch) 3.937 inch
- Vertical position 25 mm
- Height (inches) 4.921 inch
- Width 40 mm
- Width (inch) 1.575 inch
- Net Weight: 677 grams
