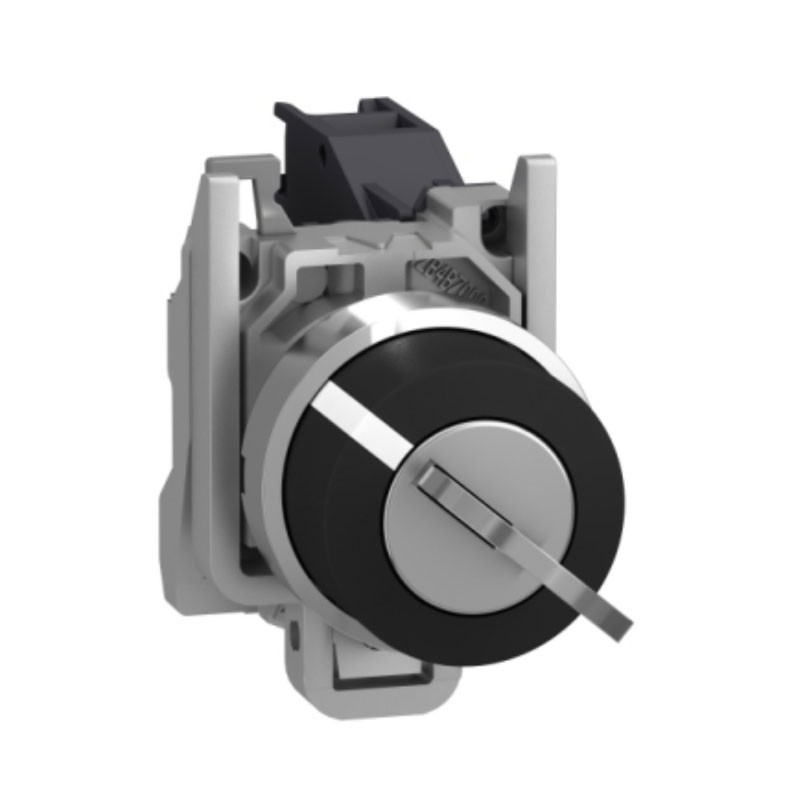

Telemecanique Key Selector 2 Positions Black 2NO XB4BG21
SNR XB4BG21
3389110887136
Schneider Telemecanique Key Selector, with the following features:
- Head material: Chrome-plated metal
- Mounting base material: Zamak
- Mounting diameter 22 mm
- Head type: standard
- Head shape: circular
- Operator Type: Fixed
- Operator type: key selector
- Operator position information: 2 positions 90°
- Contact composition and type: 1 NO
- Contact operation: slow opening
- Connections - terminals: Screw-fixing terminals, <= 2 x 1.5 mm² with cable end complying with EN/IEC 60947-1, Screw-fixing terminals, > = 1 x 0.22 mm² without cable end complying with EN/IEC 60947-1
Telemecanique Key Selector 2 Positions Black 2NO XB4BG21
€33.59
Tax included
€33.59
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
Pay in installments with Klarna
Frequently bought together
Schneider Electric's Harmony XB4 modular key-operated selector switch (key #455) is black, has 2 positions, operates with a fixed mechanism with left-hand key extraction, and uses screw terminals.
It has 1 NO contact and a chrome-plated metal ferrule. This key switch provides a versatile interface for machine control. It is easily installed in standard 22 mm diameter openings and can be connected to control circuits with simple screw terminals. It provides a safe way for authorized personnel to switch between process or machine operating modes. It is shock-resistant, vibration-resistant, dust-tight and watertight with IP66, IP67, IP69 and IP69K ratings, making it ideal for use in harsh environments.
Advantages:
- Metal bezel
- Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- Secure machine and system operation with a key, available only to authorized operators
- Didelio našumo: International standards and certifications (marine certification, IP66 IP67 IP69 IP69K, type 4X)
- Environmentally friendly product performance
Other Specifications:
- Height 47 mm
- Width 30 mm
- Depth 86 mm
- ISO Terminal Description #1: (13-14)NO
- Weight 0.117 kg
- High-pressure washing resistance: 7000000 Pa at 55 °C, distance: 0.1 m
- Lock type: Key 455
- Key extraction position: left
- Contact use: standard contacts
- Positive opening: Without
- Torque value: 0.14 Nm NO with electrical state change
- Mechanical life: 1000000 cycles
- Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-2
- Contact material: Silver alloy (Ag/Ni)
- Short-circuit protection: 10 A cartridge fuse type gG complying with EN/IEC 60947-5-1
- Conventional thermal current in air [Ith]: 10 A complying with EN/IEC 60947-5-1
- Rated insulation voltage [Ui]: 600 V (pollution degree 3) complies with EN 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV complying with EN 60947-1
- Electrical reliability: Λ < 10exp(-6) at 5 V and 1 mA in clean environment complies with EN/IEC 60947-5-4, Λ < 10exp(-8) at 17 V and 5 mA in clean environment complies with EN/IEC 60947-5-4
- TH protection treatment
- Storage temperature: -40...70 °C
- Ambient temperature: -40...70 °C
- Overvoltage category: Class I complying with IEC 60536
- IP degree of protection IP66 complying with IEC 60529, IP69, IP69K, IP67
- Degree of protection: NEMA NEMA 13 to NEMA 4X
- Degree of protection IK: IK06
- Vibration resistance: 5 gn (F= 2...500 Hz) complying with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half-sine wave acceleration complies with IEC 60068-2-27
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slot compatible with plate Ø 4 mm screwdriver
- Slot compatible with Ø 5.5 mm plate screwdriver
Rated use current [Ie]:
- 3 A at 240 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 complying with EN/IEC 60947-5-1
Electrical durability:
- 1000000 cycles, AC-15, 2 A at 230 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN 60947-5-1 appendix C
- 1000000 cycles, AC-15, 3 A at 120 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN 60947-5-1 appendix C
- 1000000 cycles, AC-15, 4 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN 60947-5-1 appendix C
There are no reviews
Data sheet
- Type: Key switches
