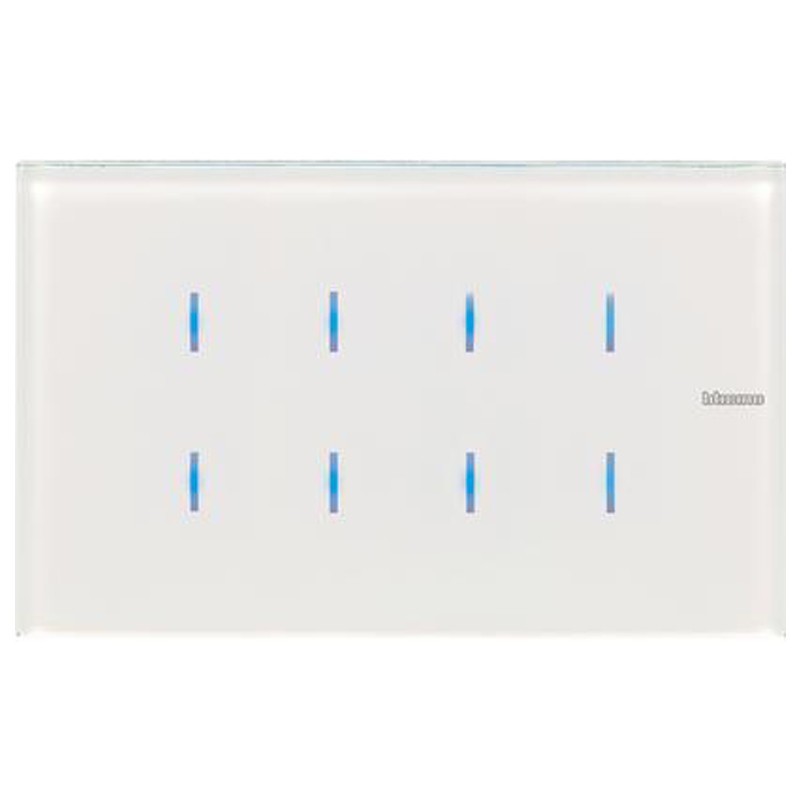

Bticino Axolute HD4657M4 8-button LED White Glass Control Unit
BTI HD4657M4
8005543412879
Axolute control to manage single or group loads (e.g. lights and shutters), sound diffusion, scenarios, basic intercom functions (e.g. gate opening). It is equipped with 8 capacitive keys, which are operated by touch, identified by LEDs with adjustable light intensity.
Bticino Axolute HD4657M4 8-button LED White Glass Control Unit
€291.10
Tax included
€291.10
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Frequently bought together
Features :
- The touch control is a device in which the traditional buttons are replaced by capacitive sensors. The device allows to carry out some typical functions of a SCS control by simply putting a finger near its surface. It is available in the versions with 3 and 4 flush mounting modules, respectively with 6 and 8 buttons. Each zone corresponding to a key is marked at the centre by a blue LED. When the user brings his finger nearer, the intensity increases considerably and remains intense until the next time he moves away. The intensity level of the LEDs can be modified using the adjustment button. The control can operate in four different modes: self-learning, scenarios, tilting, CEN.
- The self-learning mode (cyclic or non-cyclic) allows to associate to each key most of the typical commands of the automation, public address and video door phone systems (stairs lights, door opener, floor call, lock and camera cycle), in addition to the auxiliary commands. Available only with physical configuration. With the virtual configuration MYHOME_Suite it is possible to associate a specific function to each key.
- The scenario mode: allows you to recall, program and delete 6 or 8 scenarios of a scenario module.
- The tilting mode: allows 3 or 4 light points or shutters (or rooms or groups) to be controlled consecutively.
- The scene programmer mode: allows the control to be used with the MH200N scene programmer.
- To allow cleaning of the device, it is possible to temporarily deactivate the sensitive zones by pressing two extreme zones diagonally at the same time. The leds begin to flash in sequence, normal operation is restored after 10 seconds elapsed without any pressure.
Technical data:
- Power supply by BUS SCS: 27 Vdc
- Operating power supply with SCS BUS: 18 - 27
- Vdc Maximum absorption HD/HC/HS4657M3: 20 mA
- Maximum current consumption HD/HC/HS4657M4: 25 mA
- Maximum current consumption 573912/13: 35 mA
- Operating temperature: 0-40 °C
