Bticino 2 wire cable 200 meters 336904
BTI 336904
8012199654362

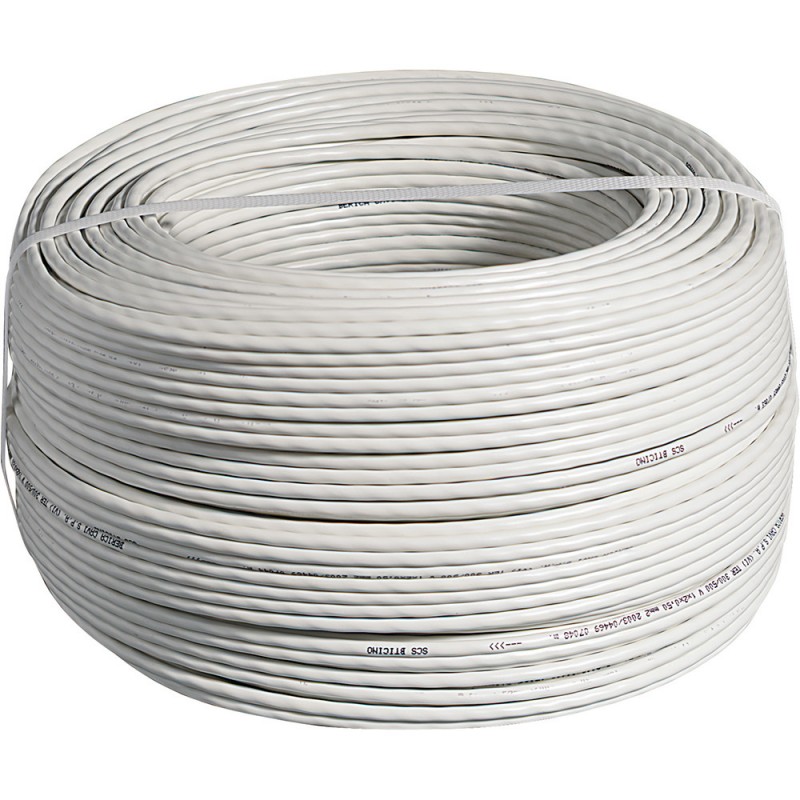

Bticino 2-Wire Conductor Cable specific for BUS/SCS applications, unshielded, made up of a white external sheath and 2 flexible conductors twisted together with a section of 0.50 sq. mm, brown and brown/white.
Bticino 2 wire cable 200 meters 336904
€235.47
Tax included
€235.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 93
: 1
Pay in installments with Klarna
Through this cable, power and operating signals are distributed to all BUS devices in the system.
Characteristics:
- 400 V insulation
- Compliant with standards: EN50575 EN60811, EN50289, EN50290, EN60228, EN50265-2-1, EN50395, EN50396 as described in IMQ document CPT 062
- Cable suitable to be buried in pipes (see data sheet for details)
- Hank length 200 m
- Class of reaction to fire according to CPR regulation: Eca
- Insulation voltage: 400 V
- Interrability: YES (see installation notes)
- External sheath colour: white (RAL 9010)
- External sheath diameter: 5,0 +/- 0,1 mm
- External sheath thickness: 0,7 mm
- Outer sheath material: PVC (RZ)
- Number of internal conductors: 2 flexible conductors braided with sheath and unshielded
- Colour of internal conductors: brown - brown/white
- Sheath thickness of internal conductors: 0.40 mm
- Inner conductor sheath diameter: 1.70 mm
- Sheath material of internal conductors: Polyethylene LDPE
- Conductor material: electrolytic red copper
- Conductor section: 0,50 mmq (16 x 0,20 mmq)
- Operating temperature: (-15) - (+70) °C
- Class of reaction to fire: Eca
The BUS SCS 336904 cable can be buried (protected by suitable piping), together with other signalling cables if the voltages involved are < 50 V. It is absolutely forbidden to run the 336904 cable together with power cables where the voltages involved are > 50 V.
Failure to comply with the installation standards authorizes BTicino to decline all responsibility for the operation of the systems installed.
Data sheet
- Type: Cables
- System: 2-Wire
