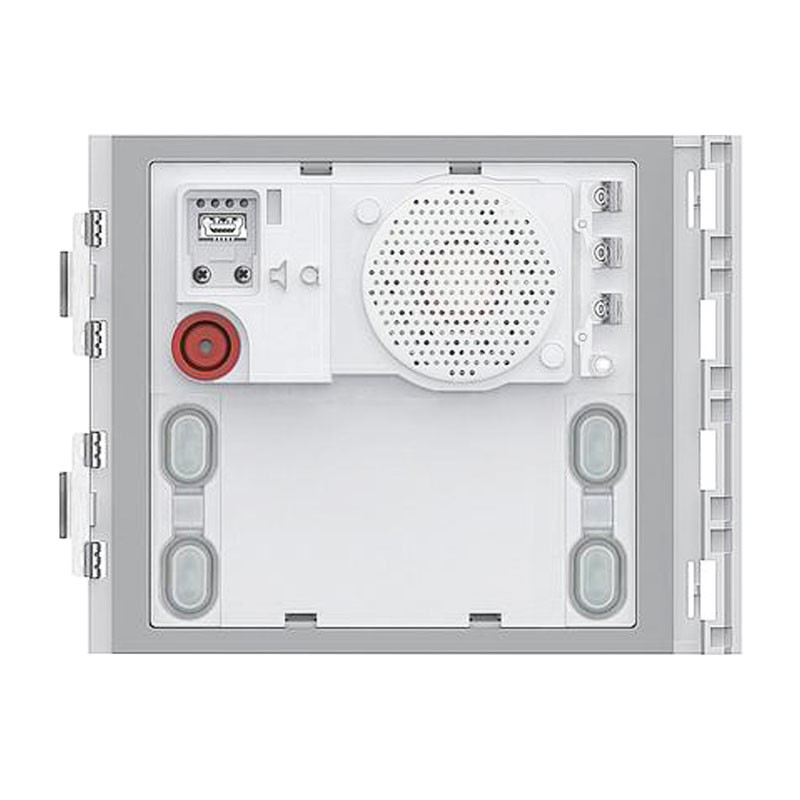

Bticino sound module for 2 wires door phone and video door phone systems.


Request info about this product

Bticino SFERA basic sound module 2 wires 351100

€187.48 Tax included
€187.48

Bticino SFERA basic sound module 2 wires 351100

€187.48
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 17
logo priority: 2
Altre disponibilità dal produttore
qty

Bticino SFERA basic sound module 2 wires 351100

€187.48

Buy it within and receive it from Tuesday, 16 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Features speaker and microphone volume adjustments
  • Manages up to a maximum of 100 button calls using additional double row button modules
  • Allows the opening of an electric lock connected directly to terminals S+ and S- (18 V 4 A impulsive - 250 mA maintenance on 30 ohm max) and the connection of a local door opener button on terminals PL.
  • Prepared for additional power supply
  • Equipped with front LEDs for signalling of operating status: door opener, active communication, call forwarded and system busy
  • Integrated optical sensor for switching on night backlighting
  • To be completed with finishing front panel
  • The device can be configured physically or via PC and TiSferaDesign software.
  • 1 Module
  • IT Series Sfera
  • Height 91 mm
  • Width 115 mm
  • Power supply from SCS BUS: 18 - 27 Vdc
  • Absorption in stand by (with backlighting LEDs off): 10 mA
  • Absorption in stand by (with backlighting LEDs on): 15 mA
  • Maximum absorption in operation: 65 mA
  • Operating temperature: (-25) - (+70) °C
  • Degree of protection (assembled push button panel): IP 54
