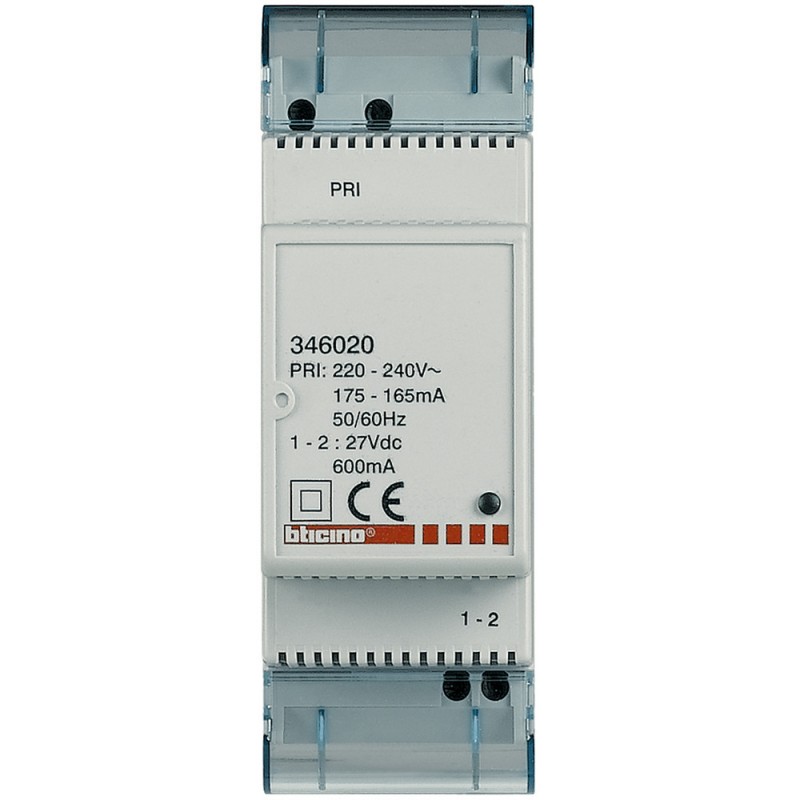

Bticino Supplementary power supply unit 2 modules 346020
BTI 346020
8012199955933
Bticino additional power supply unit to be used for local power supply to door units and prearranged apartment stations.
Bticino Supplementary power supply unit 2 modules 346020
€89.58
Tax included
€89.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 55
: 5
Pay in installments with Klarna
2 DIN modules device which allows to
- locally power the single internal and external video door phone stations
- power some accessories in the Communication and MyHOME catalogues (e.g.: Web server, A/V server, scene programmers, 2-WIRE/IP interface, 10/100 switch, ADSL modem router, Hub-TV).
- The device does NOT need to be configured.
Features:
- 2 DIN modular housing
- Power supply 230 Va.c. at 50-60 Hz
- It provides a low voltage output at 27 Vd.c. with a maximum current of 600 mA and is protected on the PRI side (with a NON-replaceable fuse) against short circuit and overload.
- It is a SELV double insulation safety device.
- Power (W) 3,8 W
- Voltage 230 Vac
- Current In 600 mA
- PRI (AC power input): Nominal voltage: 220 - 240 Vac
- Nominal current: 180 - 190 mA
- Working voltage range: 187 - 265 V
- Working frequency range: 47 - 63 Hz
- Power consumption at full load: 20 W max
- Power dissipation: 3.8 W (max)
- Efficiency at full load: 80% typ.
- Stand-by power: < 1 W Operating temperature: 5 - 40 °C
- Integrated fuse (PRI side): F1 T2A 250V (NOT REPLACEABLE)
1 - 2 (DC output):
- Nominal voltage: 27 V +/- 100 mV
- Nominal current: 0 - 0.6 A
- Nominal power: 16.2 W
Usato in sostituzione di "cineasta" della stessa casa, a corredo di un videocitofono dedicato alla grande distribuzione. Questo però è serio!
perfetto, corrispondente al prodotto ordinato
Data sheet
- Type: Accessories
- Components: Power supplies
