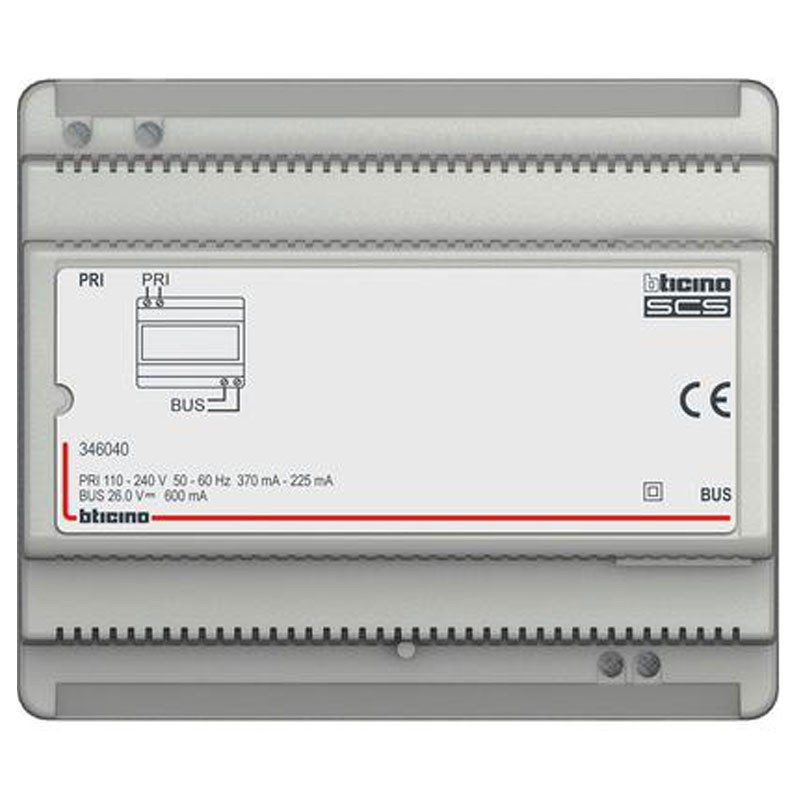

Power supply Bticino audio systems 2 wires 6 modules 110-240VAC 346040
BTI 346040
8005543480700
Power supply Bticino audio systems 2 wires 6 modules n modular housing 6 DIN
Power supply Bticino audio systems 2 wires 6 modules 110-240VAC 346040
€77.23
Tax included
€77.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 4
Pay in installments with Klarna
Advantages:
- 110-240 Va.c. 50-60 Hz power supply.
- Provides a low voltage output of 26 Vd.c. and a maximum rated current of 600 mA and is protected on the PRI side (with fuse) against overload and short circuit.
- It is a SELV double insulation safety device.
Technical data:
PRI (AC power supply input):
- Nominal voltage: 110 - 240 Vac
- Nominal current: 370 - 225 mA
- Working voltage range: 100 - 265 V
- Working frequency range: 47 - 63 Hz
- Power consumption at full load: 20.5 W
- Power dissipation: 4.9 W (max.)
- Efficiency at full load: 80 % (typ.)
- Standby power: < 1 W
- Operating temperature: 5 - 45 °C
- Integrated fuse (PRI SIDE): F1 T2A 250 V (NOT REPLACEABLE)
- Dimensions 6 DIN modules
BUS (DC output)
- Nominal voltage: 26 V
- Nominal current: 0 - 0.6 A
- Nominal power: 15.6 W
la dame ou je l'ai installe avait deja le meme ou il y avait deux resitance de crame que je vais essaye de changer
Bon correspond à la commande à recommander
Spedizione veloce.
Imballaggio ok.
Miglior prezzo.
Bien.
C’est pour remplacer le transformateur de ma sonnette qui n’a tenu que trois ans, j’espére que celui la tiendra plus longtemps.
Il prezzo migliore che abbia trovato su web.
produit conforme et livraison rapide, donc satisfait.
je suis satisfait du produit. Il est conforme aux attentes.
RAS colis arrivé plus tôt que prévu
Transfo conforme, très facile à monter.
Data sheet
- Type: Accessories
- Components: Power supplies
