Bticino Living Now Starter Plus Kit for Lights Sockets and Power K1010PLUSKIT
BTI K1010PLUSKIT
8005543681329

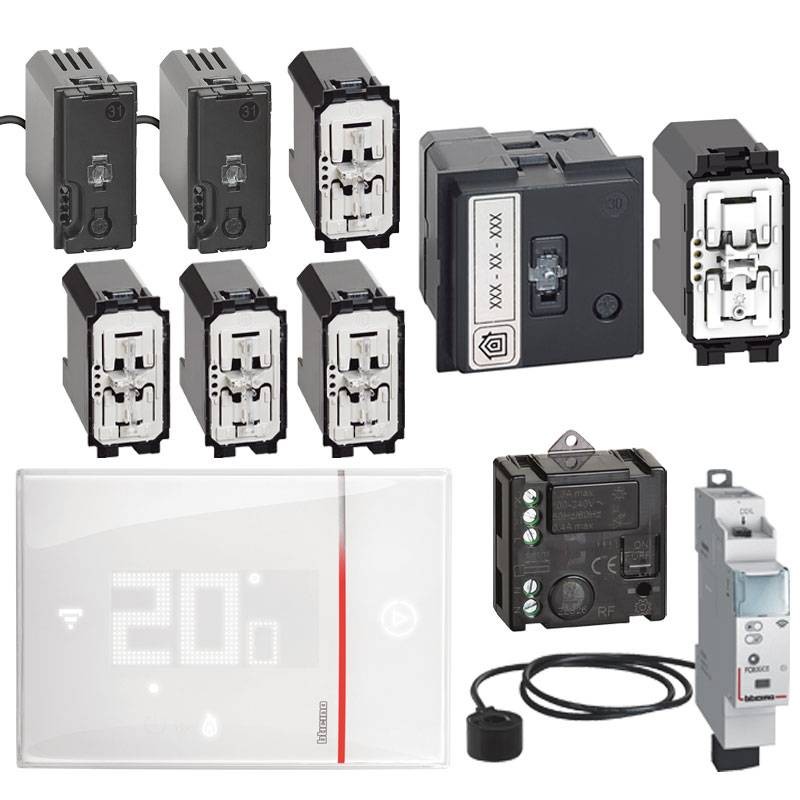

Bticino Living Now Starter Plus Kit for light, power and temperature control management consisting of:
- 1 Piece K4510C gateway (with new recessed radio in/out control one module)
- 3 Piece K4003C connected diverters
- 1 Piece 3584C light relay connected
- 1 Piece K4411C dimmer connected
- 2 Pieces K4531C socket modules connected
- 1 Piece FC80GCS new DIN load management module connected
- 1 Piece XW8002 thermostat connected Smarther2 with Netatmo
With the kit you save compared to individually purchased items
Bticino Living Now Starter Plus Kit for Lights Sockets and Power K1010PLUSKIT
€552.06
Tax included
€552.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 54
: 12
Pay in installments with Klarna
Frequently bought together
Kit component specifications:
Smarther 2 connected thermostat with Netatmo white XW8002:
In conjunction with the Home + Control APP, it enables precise and timely regulation and monitoring of the temperature within rooms; all programming and most functions are done easily and intuitively using the APP. Thanks to the Wi-Fi connection it has, Smarther 2 with Netatmo can be programmed and controlled remotely; it also allows you to view the temperature and humidity measured in the room.
Locally, it is possible to set the temperature level for manual operation and to activate the Boost mode, which allows the system to be forced on for a limited period (30, 60 or 90 minutes) regardless of the measured and programmed temperature. You can also set a different temperature in each room of the house for maximum comfort, as it is compatible with Netatmo's smart thermostatic valves.
The Smarther 2 with Netatmo connected thermostat can be controlled via Google voice assistants, Amazon Alexa and Apple Home Kit.
Main features:
- Energy Class 4
- Power supply 110 ÷ 240 Vac, 50/60 Hz
- Power consumption 2 W max
- Maximum cable cross-section 1 x 1.5 mm2
- Operating temperature 5 ÷ 40°C
- 0.5°C increments
- Output 1 potential-free deviation contact 5(2)A
- Drive type 1BU
- Pollution degree 2
- Rated impulse voltage 4kV
- Wireless device complying with 802.11b/g/n standard, frequency 2.4 ÷ 2.4835 GHz, transmission power < 20 dBm. WPA/WPA2 security protocol
Gateway to create a connected installation in the K4510C home:
- Gateway to create a connected installation in the home. Can be used to control lights, blinds and electrical equipment connected to connected outlets using your smartphone and Home + Control lapp, voice assistants, general command at the entrance to your home. Supplied with wireless Enter&Exit master scenario control art. K4570CWI flush-mounted necessary for the pairing procedure of all connected devices. 110-230 Vac power supply. - 2-module footprint.
K4003C connected diverter:
- Allows lights to be controlled locally or remotely. It installs like a traditional diverter and is compatible with all loads with a maximum power of 250 W. It features a blue LED, configurable from theAPP HOME + CONTROL, for location and load status functionality. It can be associated with one or more wireless controls. Caution: connection to neutral required. Power supply 100-240 Vac. - 1 module.
Connected lights relay 3584C:
- Connected lights relay. Allows lights to be controlled locally or remotely. It is compatible with all loads with maximum power of 300 W. Can be connected to one or more traditional pushbuttons or associated with one or more wireless controls. It installs like a traditional relay in the flush-mounted box (behind the button) or in junction boxes. Caution: connection to neutral is required. 110-230 Vac power supply.
K4411C Connected Switch/Dimmer:
- Allows lights to be controlled locally or remotely, with light varia function activated via Home+Control APP. It installs like a traditional switch and is compatible with all LED loads (including dimmable) with max power 150 W at 230 V. It features a blue LED for location and load status functions, which can be configured by APP. It can be connected to one or more conventional pushbuttons or associated with one or more wireless controls. Caution: connection to neutral is required. 110-230 Vac power supply. - 1 module.
K4531C connected socket module:
- Connected socket module. Connected to an outlet, it allows remote control of electrical devices and to check their consumption (instantaneous, daily, monthly). It is also possible to receive notifications in case of abnormal consumption. Compatible with any electrical device with power ratings up to 3680W with 16 A absorption (protected against overloading). Features a blue LED, configurable from the HOME + CONTROL APP, for location and load status features. Power supply 100-240 Va.c. - 1 module.
FC80GCS smart DIN load management module:
- DIN smart load management module to monitor the consumption of the entire electrical system, feed/unfeed loads and set scenarios with priority and non-priority loads. When the maximum power stipulated in the user's contract is reached, non-priority loads will be temporarily de-energized to avoid possible and annoying blackouts. A toroid for input current measurement is supplied. 100-240 Vac power supply. - 1 DIN module.
There are no reviews
Data sheet
- KIT: Kit Starter
