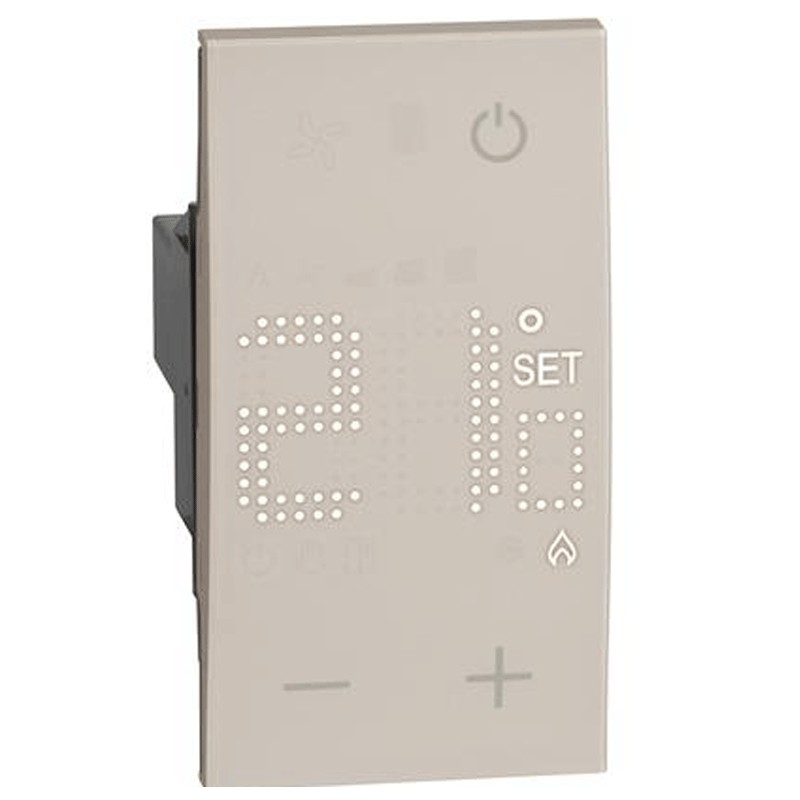

Electronic room thermostat Bticino Living Now 230V sand KM4441
BTI KM4441
8005543618806
Bticino Living Now electronic room thermostat, power supply 230V, sand colour, 2 modules, relay output with 1 potential-free changeover contact 5 (2) A.
Electronic room thermostat Bticino Living Now 230V sand KM4441
€90.79
Tax included
€90.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 76
: 2
Pay in installments with Klarna
Features:
- Stand-alone 2-module thermostat that records the room temperature and allows it to be adjusted
- It controls the temperature by means of an electronic sensor that controls an output relay with 1 potential-free deviation contact 5 (2) A
- It is possible to adjust the antifreeze temperature, which is automatically activated once the device is turned off.
On the front of the device there are
- the commands - and + for adjusting the selected temperature;
- the command to switch on/off;
- temperature/status display (in stand-by the brightness is automatically reduced).
Technical data:
- Power supply: 110 - 240 Vac , 50/60Hz
- Absorption: 2 W max
- Maximum cable section: 1 x 1.5mm2
- Operating temperatures: 0 - 40 °C
- Setpoint temperature: 3 - 40 °C;
- 0.5 °C increments
- Drive type: 1BU
- Pollution degree: 2
- Rated impulse voltage: 4 kV
- Overall dimensions: 2 recessed modules
Functions:
- Backlit display 2
- Temperature display
- Brightness sensor 4
- ON / OFF key sets the system OFF in antifreeze (7 °C) or thermal protection (35 °C) mode 5
- Temperature setting indicator: appears when temperature setting is in progress
- Heating indicator on
- Cooling indicator on
- Keys for temperature setting
- Thermostat OFF indicator (see point 4)
- Connection terminals (see diagrams)
Data sheet
- Main Commands: Thermostats
