Bticino detector for the protection of rolling shutters 3514
BTI 3514
8012199791272

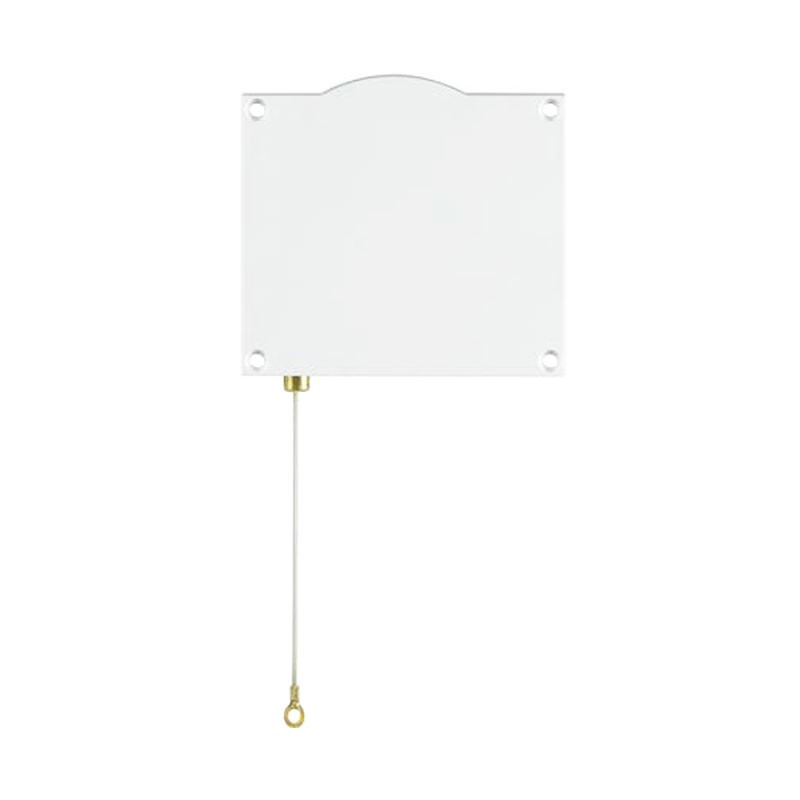

Bticino detector, for the protection of rolling shutters or similar rolling shutters, consisting of a cable sensor of the spool type to be placed in the box. Can also be used with the new wired-radio burglar alarm. Dimensions: height 77mm - width 100 mm - depth 15 mm. The sensor does not require configuration. Operating temperature: (-25) - (+70) °C. Cable length: 3.40 meters, degree of protection: IP40.
Bticino detector for the protection of rolling shutters 3514
€11.28
Tax included
€11.28
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
: 2
Pay in installments with Klarna
This device allows to realize the protection of rolling shutters, or similar rolling shutters, and consists of a rope sensor of the spool type to be positioned in the box.
It detects the lifting of the rolling shutter (microswitch contact NC output).
The end of the rope, which can be extended up to 3.1 metres, is fixed to the base of the shutter. The device is characterized by a cycle "excursion of movement / time" designed to avoid untimely alarms due to accidental movements of the shutter as a result of vibration, slow sliding, wind blows.
This sensor is recommended for perimeter protection as it offers the advantage of triggering the alarm when the burglar attempts to raise the shutter and therefore before the house is breached.
For the use of the sensor use the contact interface art. HC/HS/HD/L/N/NT4612/12 or art. F482 prepared to manage the impulses generated by the sensor itself in case of break-in of the shutter.
