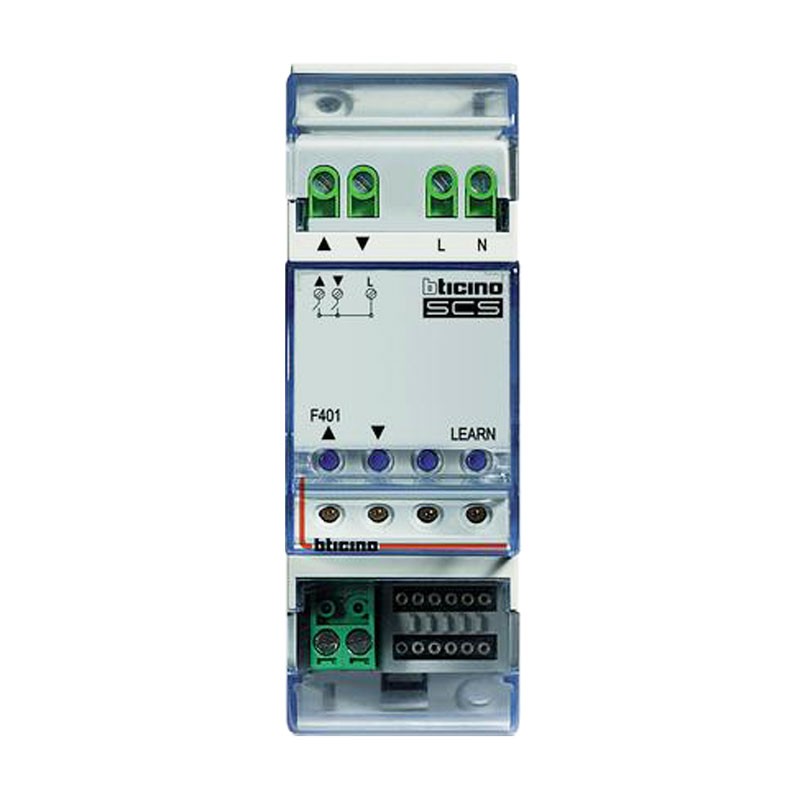

Roller shutter actuator Bticino 2 internal relays interlocked 2A 250Vac F401
BTI F401
8005543469699
Bticino Rolling shutter actuator 2 internal relays interlocked 2A 250Vac with 3 buttons and 3 LEDs designed to work in conjunction with advanced control devices H4660M2, LN4660M2 and AM5861M2 specific for the management of rolling shutters. 2 DIN modules.
Roller shutter actuator Bticino 2 internal relays interlocked 2A 250Vac F401
€78.86
Tax included
€78.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 9
Pay in installments with Klarna
The actuator can still be controlled by all other control devices, but the Preset function will not be available.
Preset function:
- In addition to the UP/DOWN Monostable and Bistable operating modes, depending on the configuration of the respective control device, it is also possible to set the shutter in a specific position (Preset). For further details, see the technical sheet of the advanced rolling shutter control. The Preset function can also be managed with the Scenario Module (activation of scenarios with shutters in preset positions). In this case, move the shutter to the desired position during scenario storage.
Characteristics:
- Power supply from BUS SCS: 27 Vdc
- Operating power supply with BUS SCS: 18 27 Vdc
- Max. absorption: 16 mA
- Operating temperature: 0 40 °C
- Power/absorption of piloted loads: 250 Vac - 2 A
- Degree of protection: IK04
- Degree of robustness: IP20
