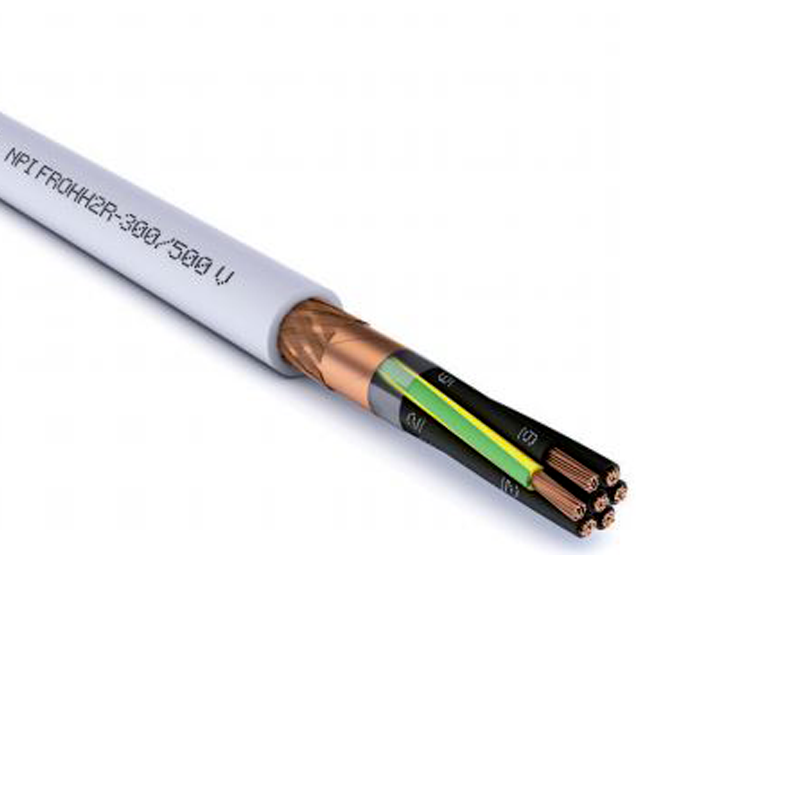

Cable Fror Shielded Flame-retardant FROHH2R 3X0,50mmq 1 Meter
9X9 SMS0350HAAAG
8016219702217
Suitable when it is required a particular degree of protection against electrostatic interference and electromagnetic. Can be installed inside in normal environments, damp, or wet, and temporarily on the outside. Not allowed laying underground.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Cable Fror Shielded Flame-retardant FROHH2R 3X0,50mmq 1 Meter
€1.08
Tax included
€1.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1900
: 80
Conductor: bare copper, flexible training, class 5
Insulation: PVC, quality TI2
Bandage anime: polyester tape
Screen 1: aluminum tape/polyester
Screen 2: tinned copper wire red
Sheath: PVC, TM2 quality
Color: grey
Rated voltage
NPI® FROHH2R-450/750 V: Uo/U 450/750 V
NPI® FROHH2R-300/500 V: Uo/U 300/500 V
Maximum operating temperature: 70°C
Minimum operating temperature: -15°C
(in the absence of mechanical stress)
Maximum temperature of short circuit: 160°C
Transfer impedance of the screen: max 100
m /m (from 100 KHz to 30 MHz)
Good resistance to mechanical stresses and to the
chemical agents. Good flexibility and behavior
at low temperatures.
Minimum temperature of laying: 0°C
The minimum bending radius advised: 8 times the
the diameter of the cable
The maximum tensile stress recommended: 50 N/mm2
of
section of the copper
The use and type of installation
Cable for energy suitable for fixed installation in
places with fire hazard, such as trade fairs, building construction
civil, commercial, public entertainment; nelledilizia
industrial limited to the laying of pipes and
channels. The cable with a rated voltage of 300/500 V
suitable only for circuits of signalling and command.
Suitable when it is required a particular degree of
protection against electrostatic interference (tape
aluminium/polyester) and electromagnetic (braid
copper). Can be installed inside environments
normal, damp, or wet, and temporarily on the outside.
Not allowed laying underground.
Esattamente ciò di cui avevo bisogno e che non riuscivo a trovare.
Prodotto che soddisfa le aspettative, ottimo rapporto qualità prezzo, consegna super rapida. Riacquisterò da questo fornitore.
Data sheet
- Colour:
- Grey
- Section:
- 0.5mmq
- Number of cables:
- 3
