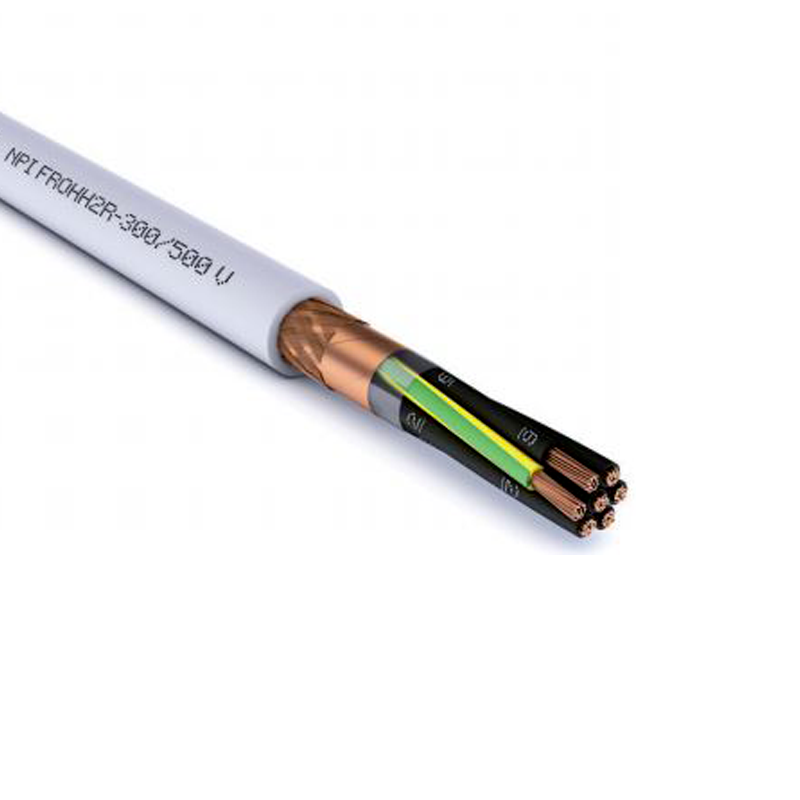

Cable Fror Shielded Flame-retardant FROHH2R 4X0,75mmq 1 Meter
9X9 SMS0475HAAAF
Suitable when it is required a particular degree of protection against electrostatic interference and electromagnetic. Can be installed inside in normal environments, damp, or wet, and temporarily on the outside. Not allowed laying underground.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Cable Fror Shielded Flame-retardant FROHH2R 4X0,75mmq 1 Meter
€1.67
Tax included
€1.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1769
: 800
Conductor: bare copper, flexible training, class 5 Insulation: PVC, quality TI2 Bandage anime: polyester tape shield 1: aluminum tape/polyester tape Screen 2: braided wire, red copper Sheath: PVC, TM2 quality Colour: grey rated Voltage NPI® FROHH2R-450/750 V: Uo/U 450/750 V NPI® FROHH2R-300/500 V: Uo/U 300/500 V maximum operating Temperature: 70°C minimum operating Temperature: -15°C (without mechanical stress) Maximum temperature of short circuit: 160°C transfer Impedance of the screen: max 100 m /m (from 100 KHz to 30 MHz) with Good resistance to mechanical stresses and to chemical agents. Good flexibility and behaviour at low temperatures. Minimum temperature of laying: 0°C minimum bending Radius advised: 8 times the cable diameter Maximum tensile force recommended: 50 N/mm2 of the section of the copper Use and type of laying Cable to power suitable for fixed installation in places with fire risk, such as trade fairs, civil construction, commercial, public entertainment; nelledilizia industrial limited, to laying pipes and ducts. The cable with a rated voltage of 300/500 V is suitable only for circuits of signalling and command. Suitable when it is required a particular degree of protection against electrostatic interference (tape aluminium/polyester) and electromagnetic (copper braid). Can be installed inside in normal environments, damp, or wet, and temporarily on the outside. Not allowed laying underground.
There are no reviews
Data sheet
- Colour:
- Grey
- Section:
- 0.75mmq
- Number of cables:
- 4
