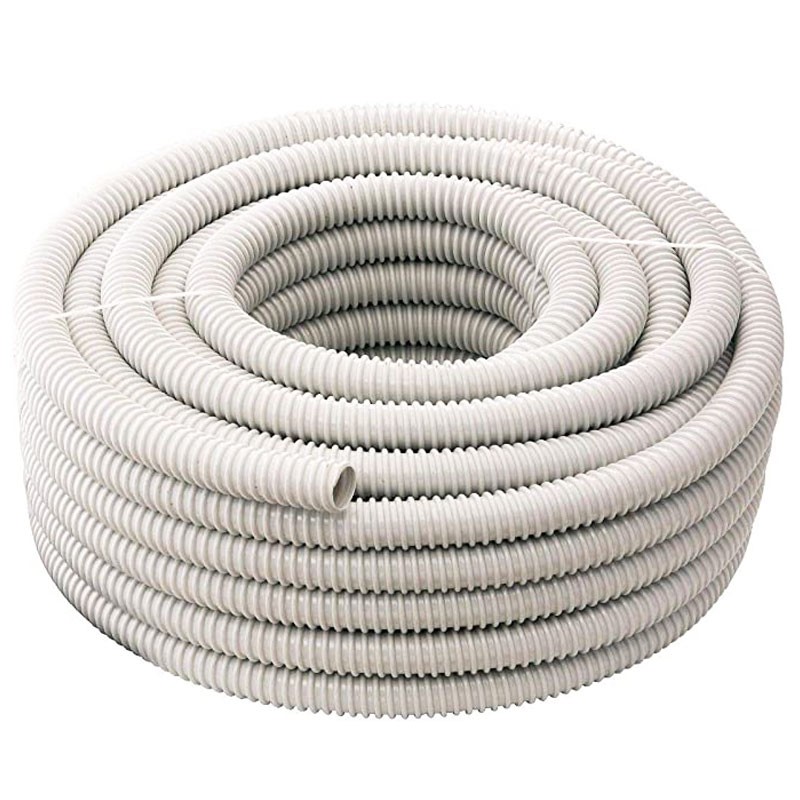

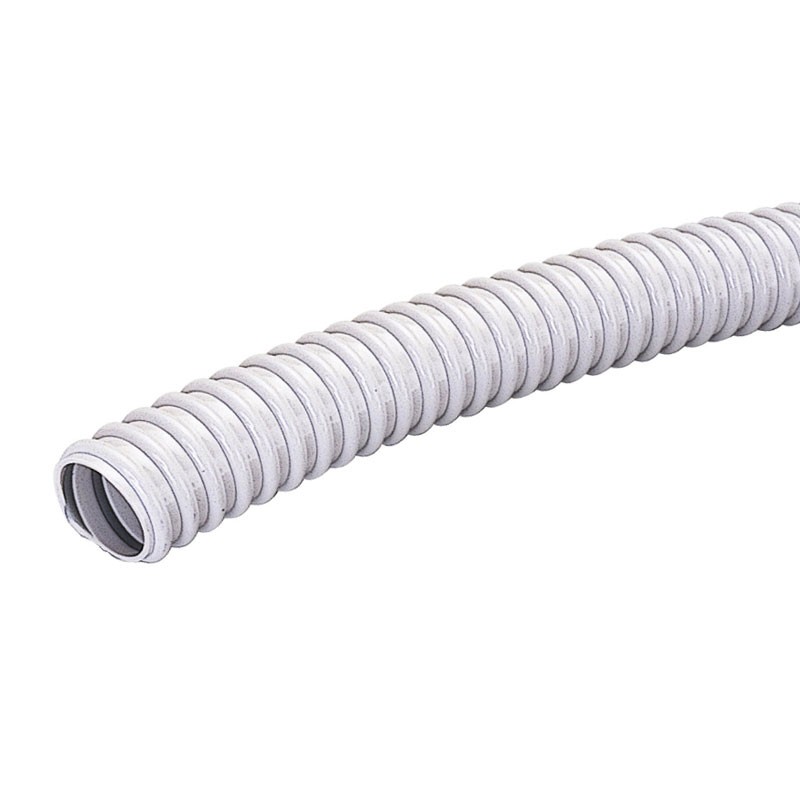

Tubifor gray spiral flexible conduit 16mm diameter TFGS016GS030
TUB TFGS016GS030
8024386117048
Tubifor spiral sheathing FLEXO series With reinforced spiral, smooth inner surface, with the following characteristics:
- Inner diameter: 16mm
- Outer diameter: 20.7mm
- Material: PVC
- Standards: EN 61386.1, EN 61386.23
- Compression resistance: Class 2 light (320 N over 5 cm at +23°C)
- Impact Resistance: Class 3 medium (2 joules at -5°C)
- Minimum Temperature: Class 1 (+5°C)
- Maximum Temperature: Class 1 (+60°C)
- Resistance to flame propagation: Self-extinguishing
- IP Degree of Protection: IP64 with ATRD fittings
- Electrical Insulation Resistance: greater than 100 mohm at 500V for 1 minute
- Dielectric Strength: greater than 2000V 50 Hz for 15 minutes
The selling price is intended per meter.
Minimum quantity that can be sold: hank of 30 meters.
Tubifor gray spiral flexible conduit 16mm diameter TFGS016GS030
€1.00
Tax included
€1.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15300
: 2808
Pay in installments with Klarna
Spiralized vinyl sheathing is made of plasticized PVC and shock-resistant rigid PVC and is characterized by having a reinforced spiral and smooth inner surface.
It is classified as type 2311 according to EN 61386-1, EN 61386-23. It is resistant to flame propagation: self-extinguishing in less than 30" and has a crush strength of 320N.
Mode of use:
- Protection of conductors in fixed or mobile installations in civil and industrial applications aboard operating machinery, due to high flexibility and resistance to mineral oils
- In view on walls and ceilings
- Inside suspended ceilings
Ottimo materiale, sono soddisfatto ho perso un po di tempo per far passare il cavo tv
Ottimi prodotti materiali nuovi non secchi
buon prodotto... originale e ben imballato
Prodotto ottimo e conforme alle aspettative. Consegna veloce, semplice da ordinare online.
Quando un'azienda è molto seria la si vede con la preparazione del pacco la comunicazione col cliente i tempi per la consegna i prezzi del prodotto sono ottimi L'unica cosa che si potrebbe migliorare i costi e per le spedizione
Data sheet
- Diameter: 16mm
- Type: Spiral tubes
