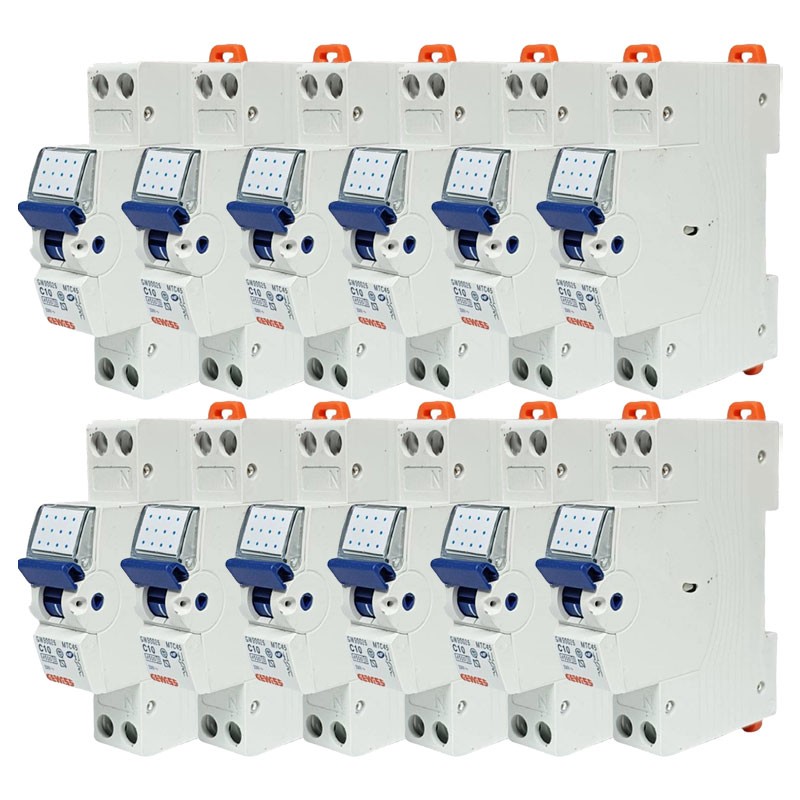

Gewiss Circuit Breaker 12 pcs 10A 1P+N 4.5KA C 1 Module GW90026
KIT GW90026
Gewiss Kit 12 pieces Circuit Breakers 10A 1P+N 4.5KA C 1 Module with the following characteristics:
- Symbol: MTC 45
- Number of poles: 1P+N
- Number of modules: 1
- Rated current: 10A
- Curve C
- Rated voltage: 230V
- Interrupting power: 4500A
With the kit you save compared to individually purchased items
Gewiss Circuit Breaker 12 pcs 10A 1P+N 4.5KA C 1 Module GW90026
€63.89
Tax included
€63.89
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 338
Further Gewiss circuit breaker combinations:
Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The MCB Series 90 meets any requirement for overload and short-circuit protection, for all civil, tertiary and industrial applications. The range consists of MTC, compact circuit breakers (2 to 32A, curves B and C up to 10kA) MT traditional circuit breakers (1 to 63A, curves B, C and D up to 25kA) MTHP high performance circuit breakers (20 to 125A, curves C and D up to 25kA).
Features:
- Reference standard: EN 60898, EN 60947-2
- Rated frequency: 50/60 Hz
- Interrupting capacity EN 60898 230V (Icn): 4500 A
- Interrupting capacity EN 60898 (Ics): 1 x Icn
- Interrupting capacity EN 60947-2 230V (Icu): 6 kA
- Interrupting capacity EN 60947-2 (Ics): 100% Icu
- Isolation voltage: 500V
- Rated impulse withstand voltage: 4 kV
- Minimum operating voltage: 12 V ac/dc
- Maximum operating voltage: 440 V ac / 220 V dc
- Number of electrical maneuvers: 10,000
- Number of mechanical maneuvers: 20,000
- Rigid cable cross section: <=1x16 - <=1x10+1x6 mm²
- Flexible cable cross section: <=1x10 - <=2x6 mm²
- Nominal tightening torque: 1.2 Nm
- Operating temperature: -25/+60 degrees
- Storage temperature: -40/+70 degrees
There are no reviews
Data sheet
- KIT:
- Kit Circuit breakers
- Voltage:
- 230VAC
- Modules:
- 1
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- Amps:
- 10A
- Circuit Protections:
- Circuit breakers
